24V Change Over Relay

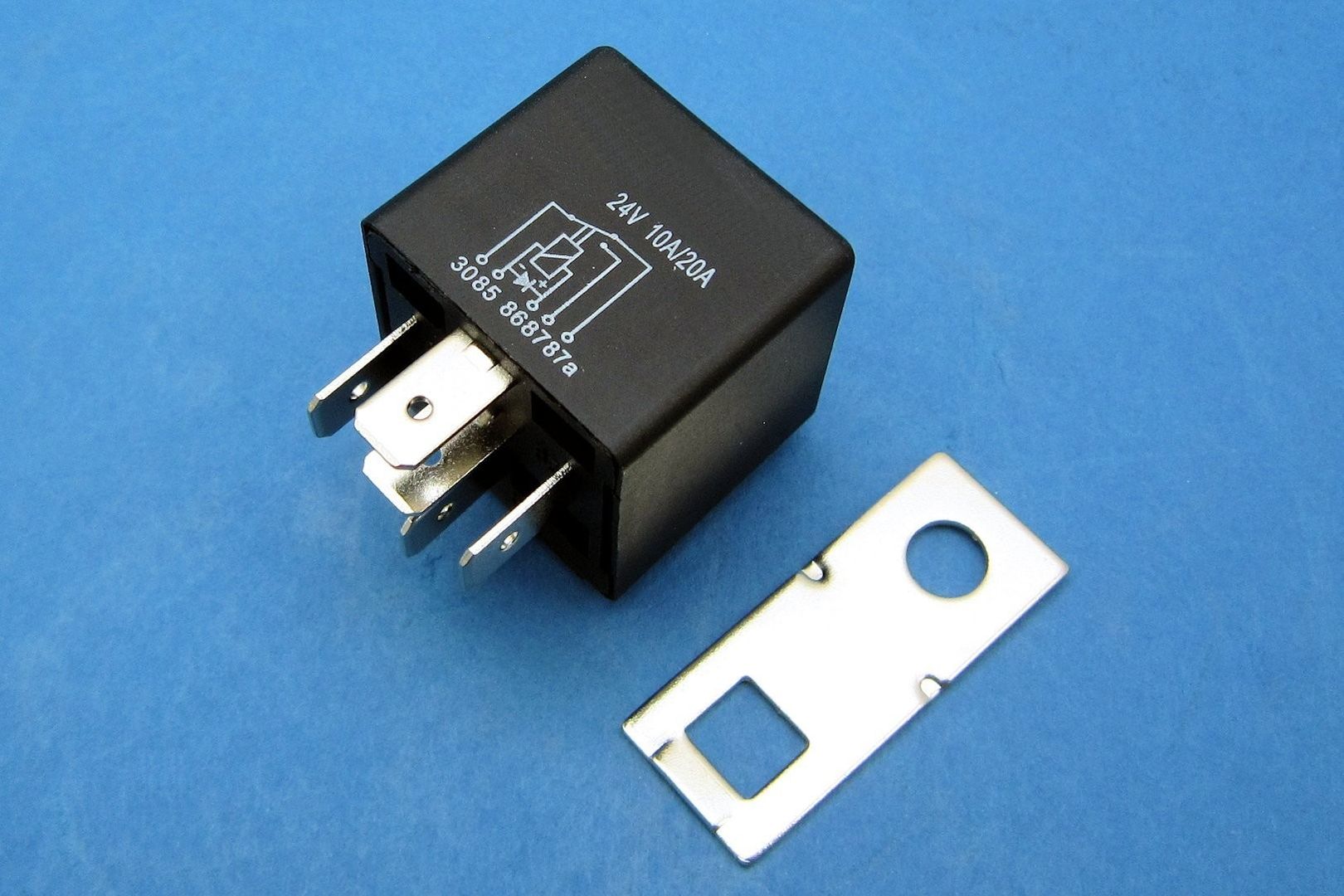

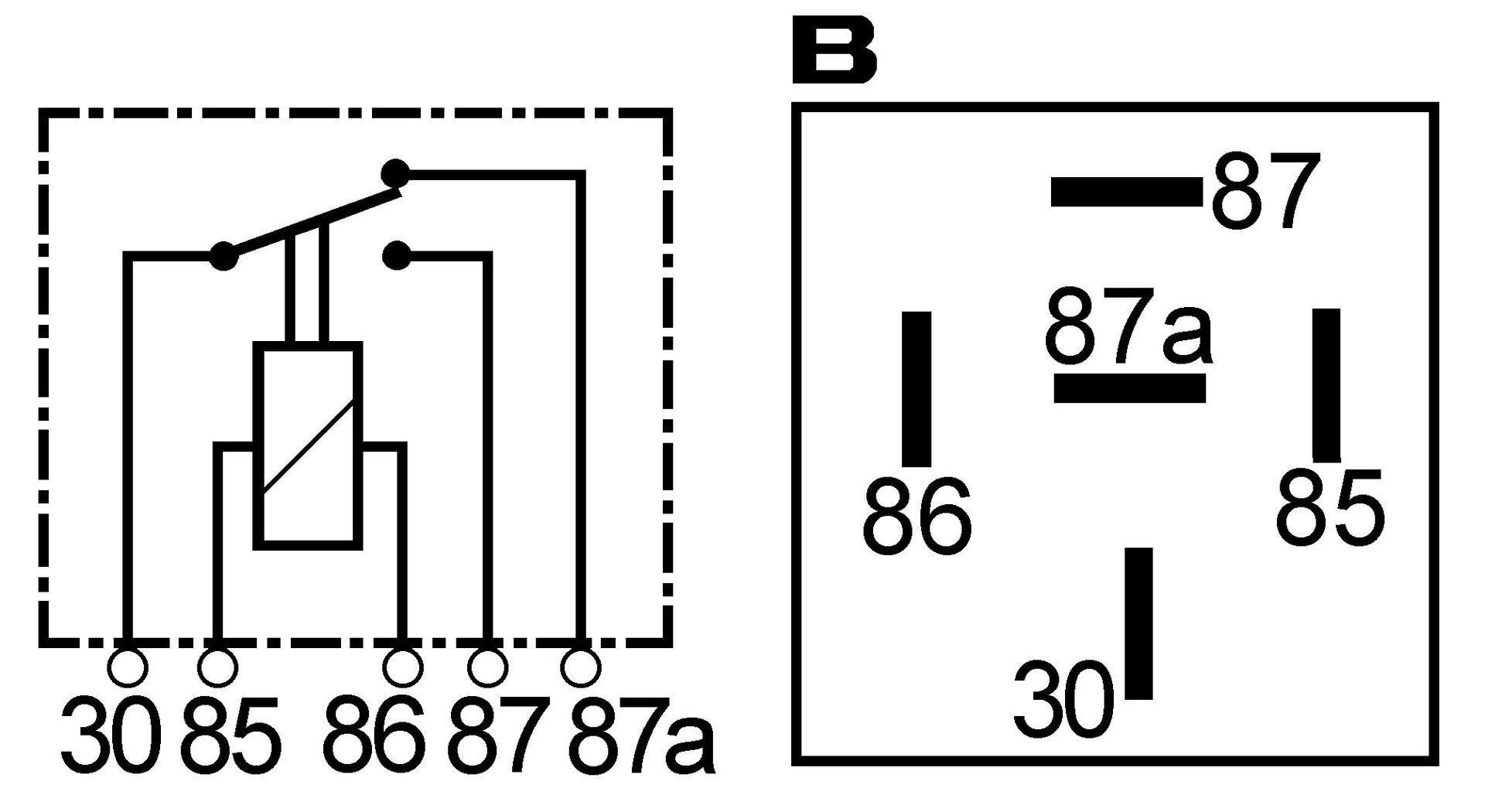

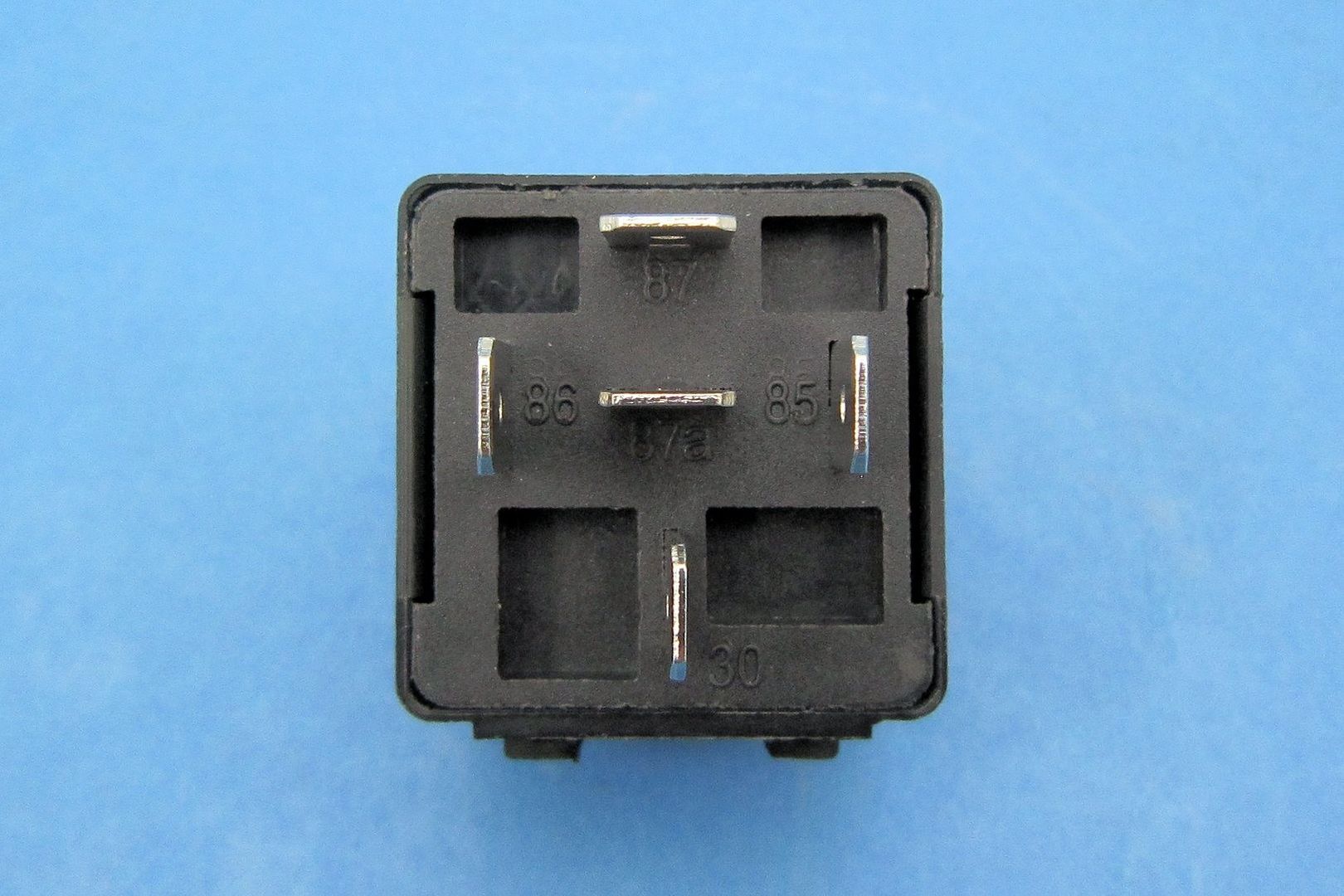

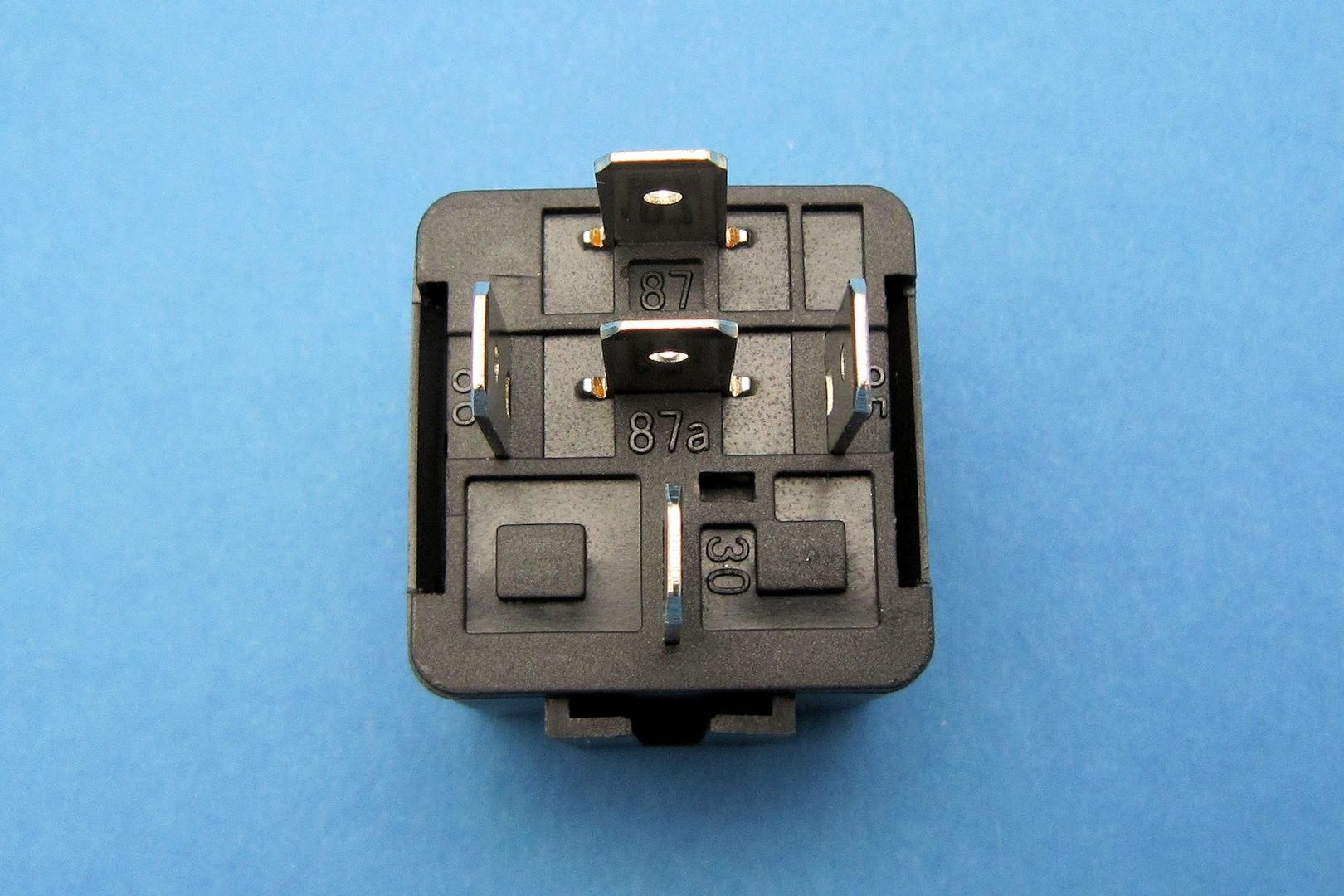

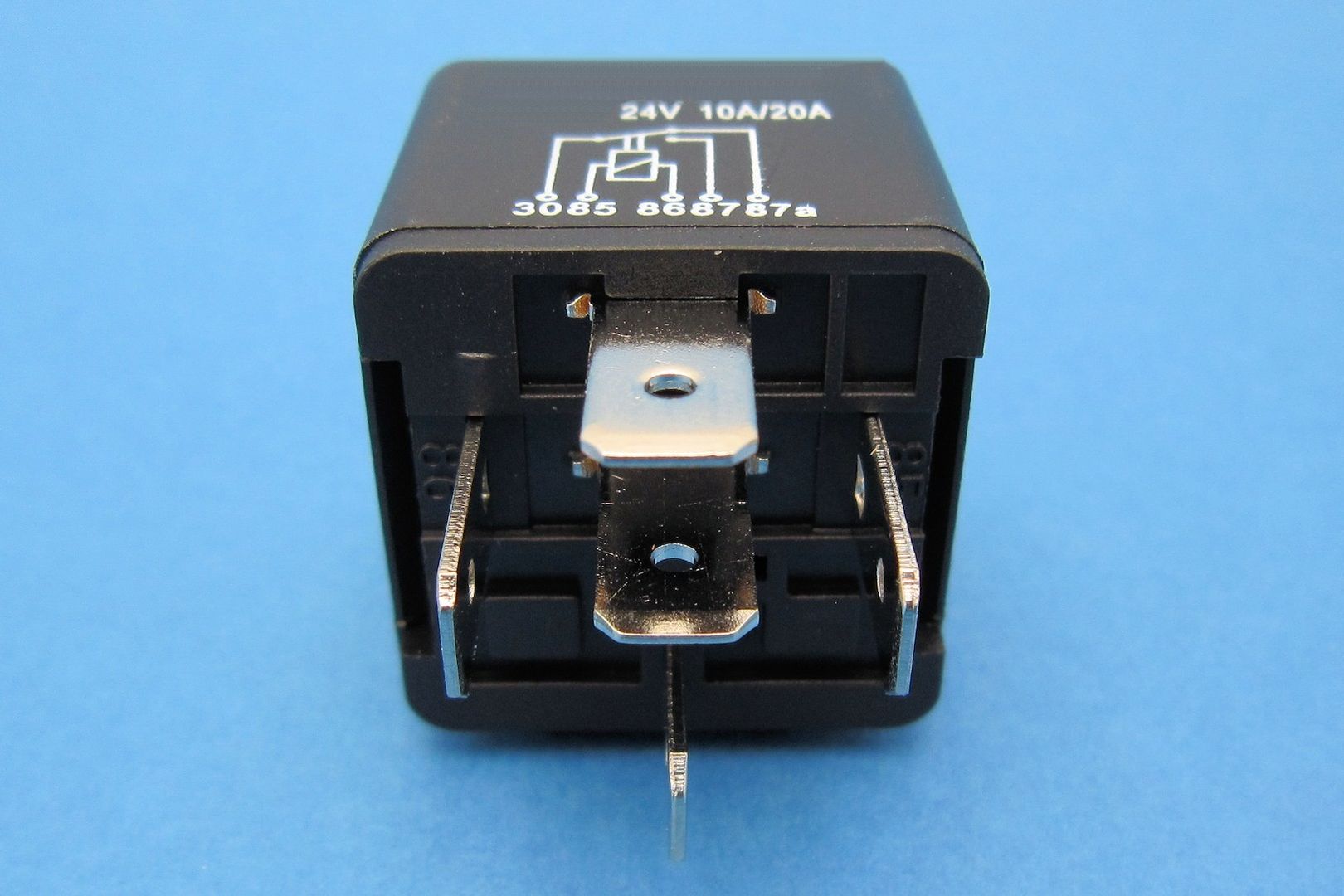

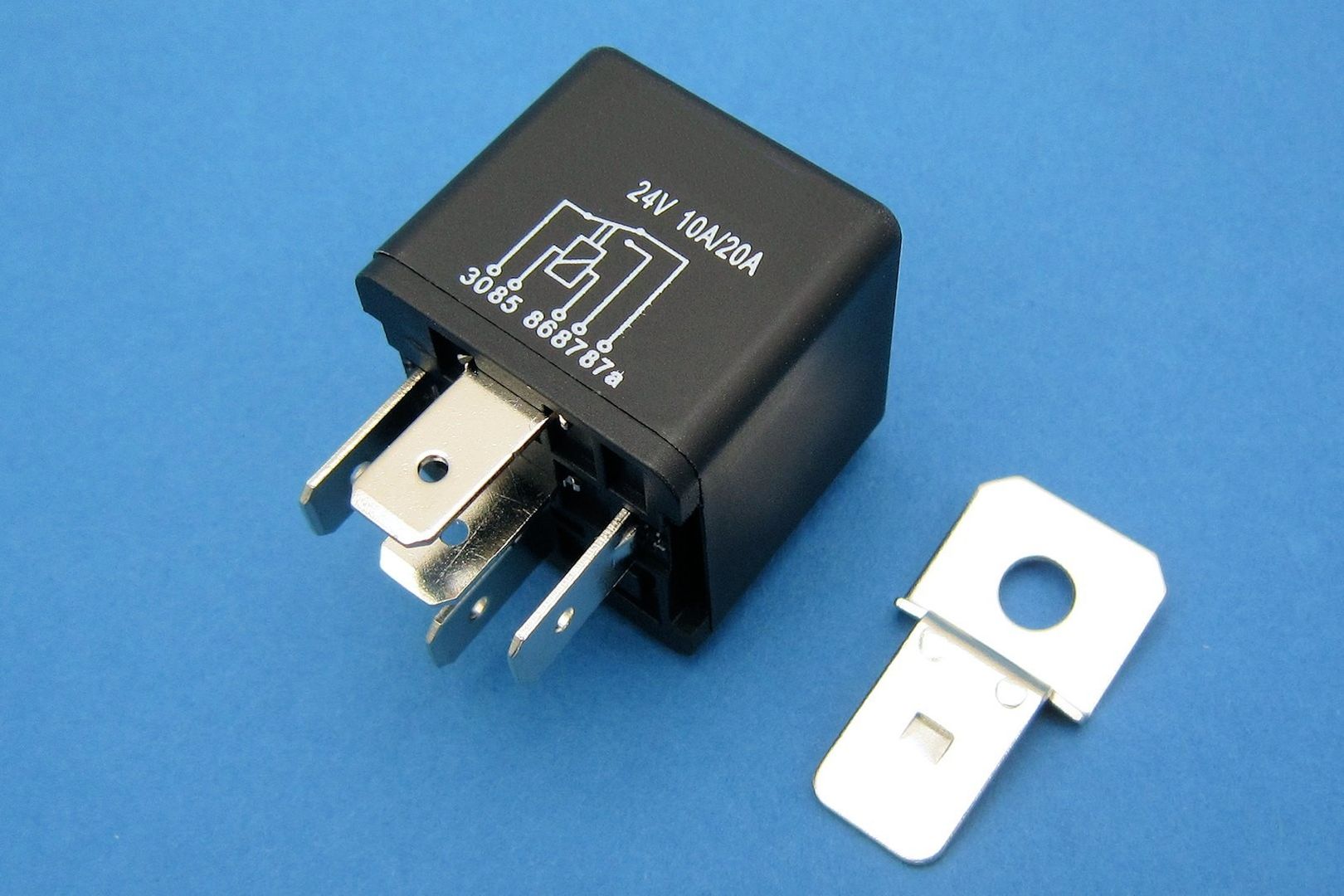

24V Change over. 10/20A. 5 terminals (6.3mm blade). Metal mounting lug can be removed if necessary. (B type pin configuration)

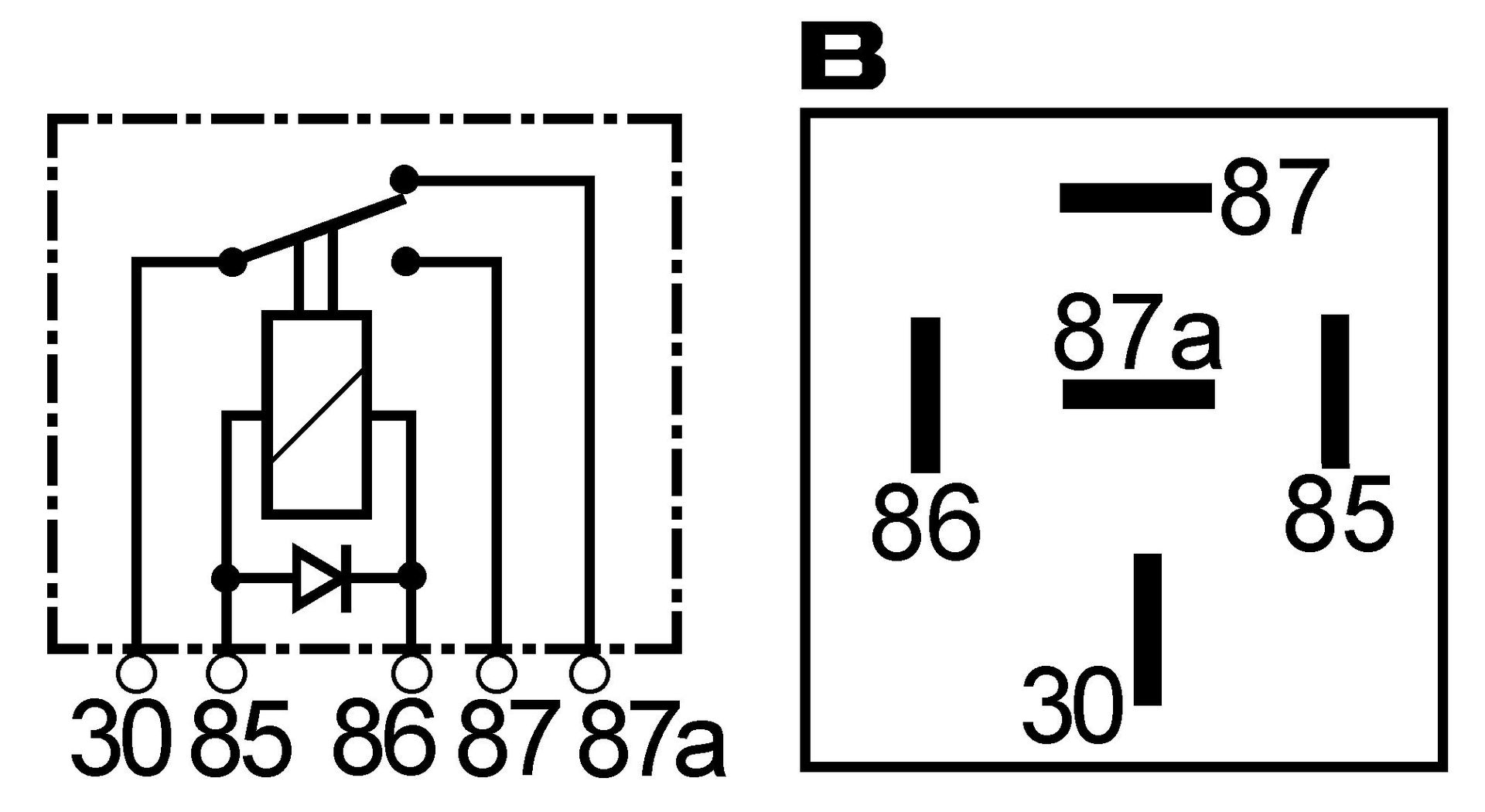

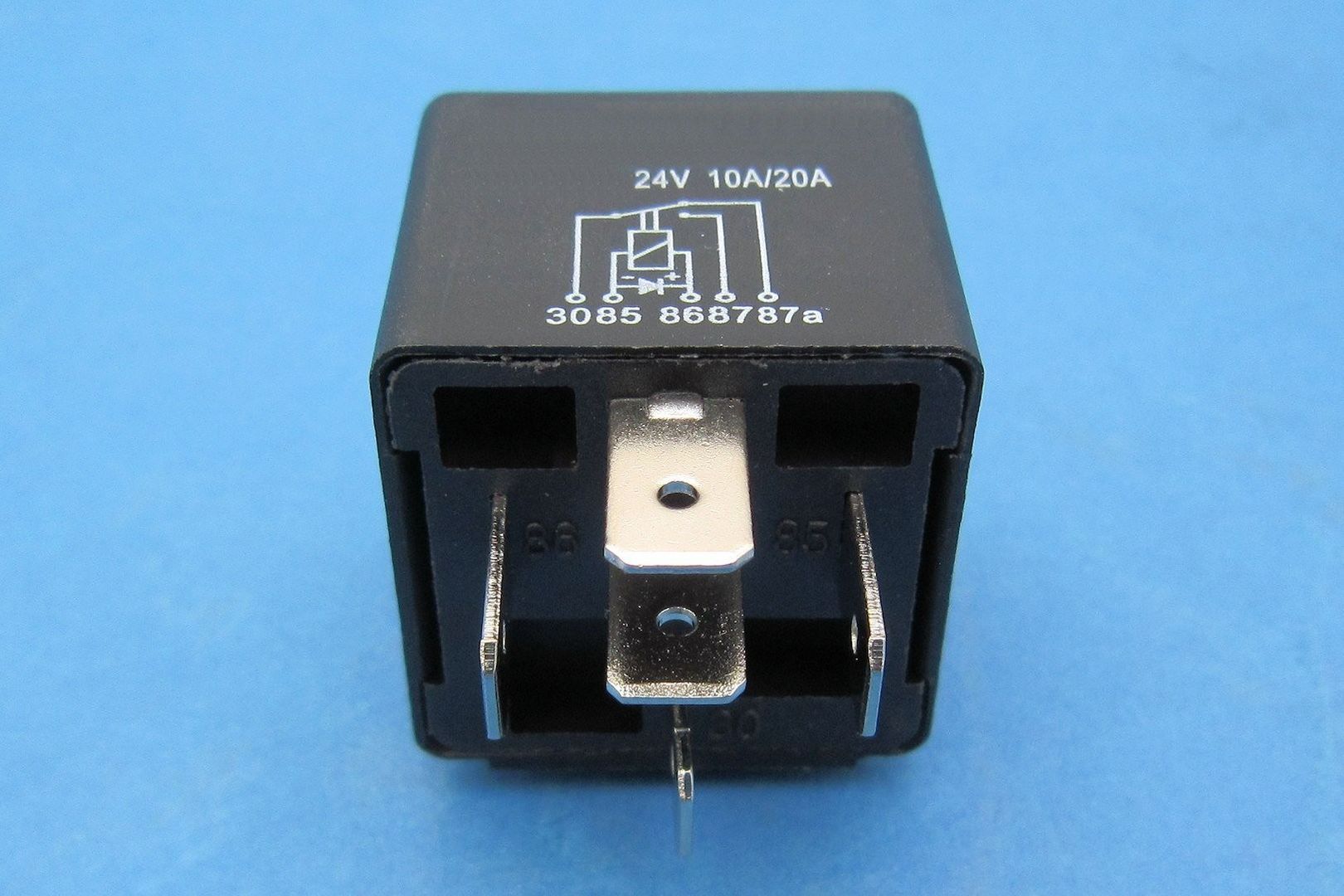

These relays are also available having an internal diode across the the coil connections (85 & 86) to reduce the voltage spike across these terminals when the coil is de-energised. This is particularly important if the relay is being controlled by some form of electronic switch (such as a transistor) rather than by a normal mechanical switch, as the voltage spike can damaged sensitive electronics. The majority of applications will simply require the standard non diode relay.

Suitable relay sockets are 140301, 140303, 140304 & 140305
