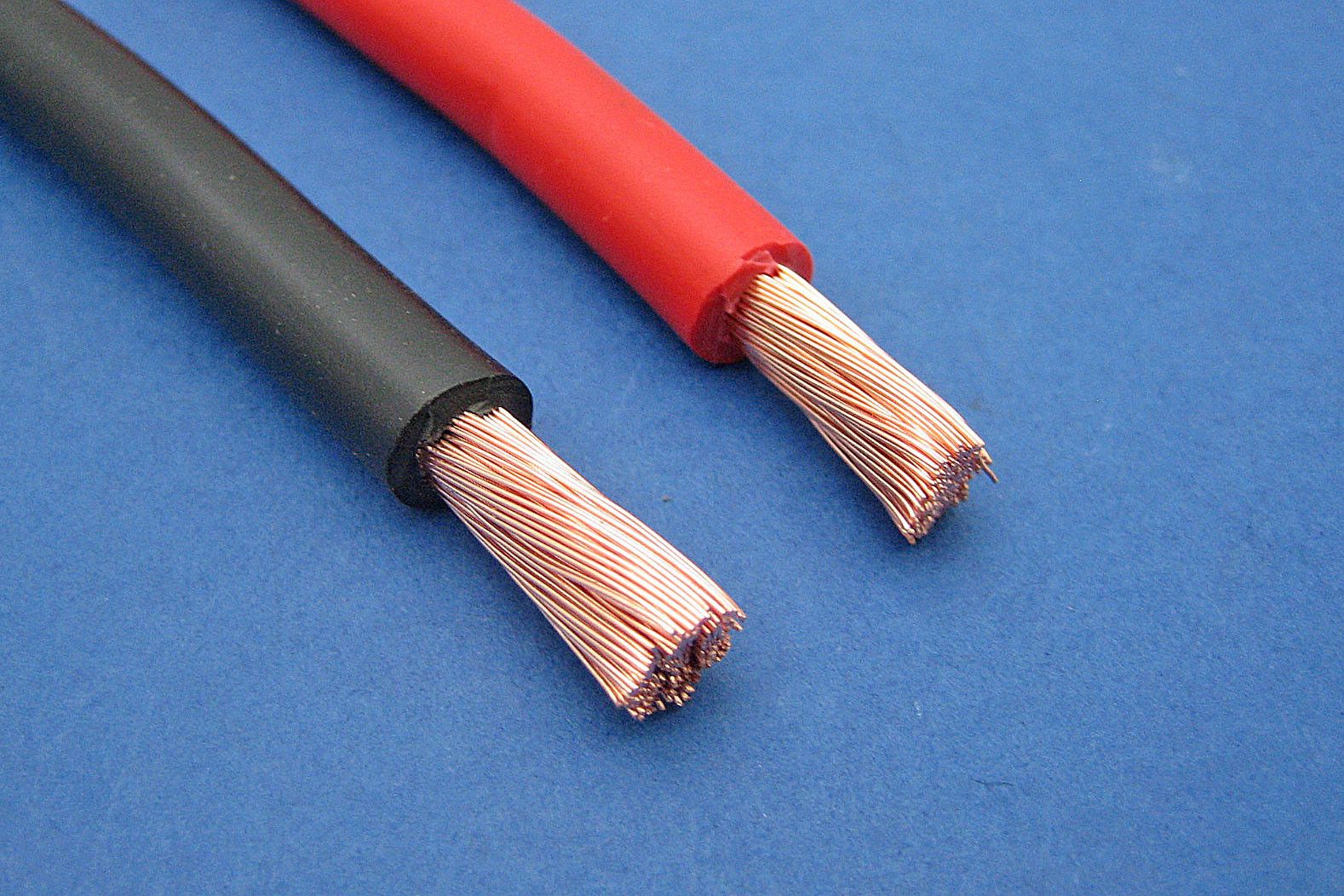

Battery Cable - Flexible

Flexible battery cable has many finer strands than the semi-rigid type.  Consequently, it is far more flexible.  Available in black or red. Cable descriptions give number and size of cable strands, the total cross-sectional area of the conductor, the outside diameter and the current rating.

 For example, 322/0.30, 25mm², 10mm, 170A  indicates that the cable has 322 x 0.3mm diameter strands of copper, giving a cross sectional area of 25mm², the outside diameter of the cable, including the insulation, is 10.0mm and the current rating is 170A.

 Clink on the link below for full cable data.
