Bosch Dynamo Reproduction

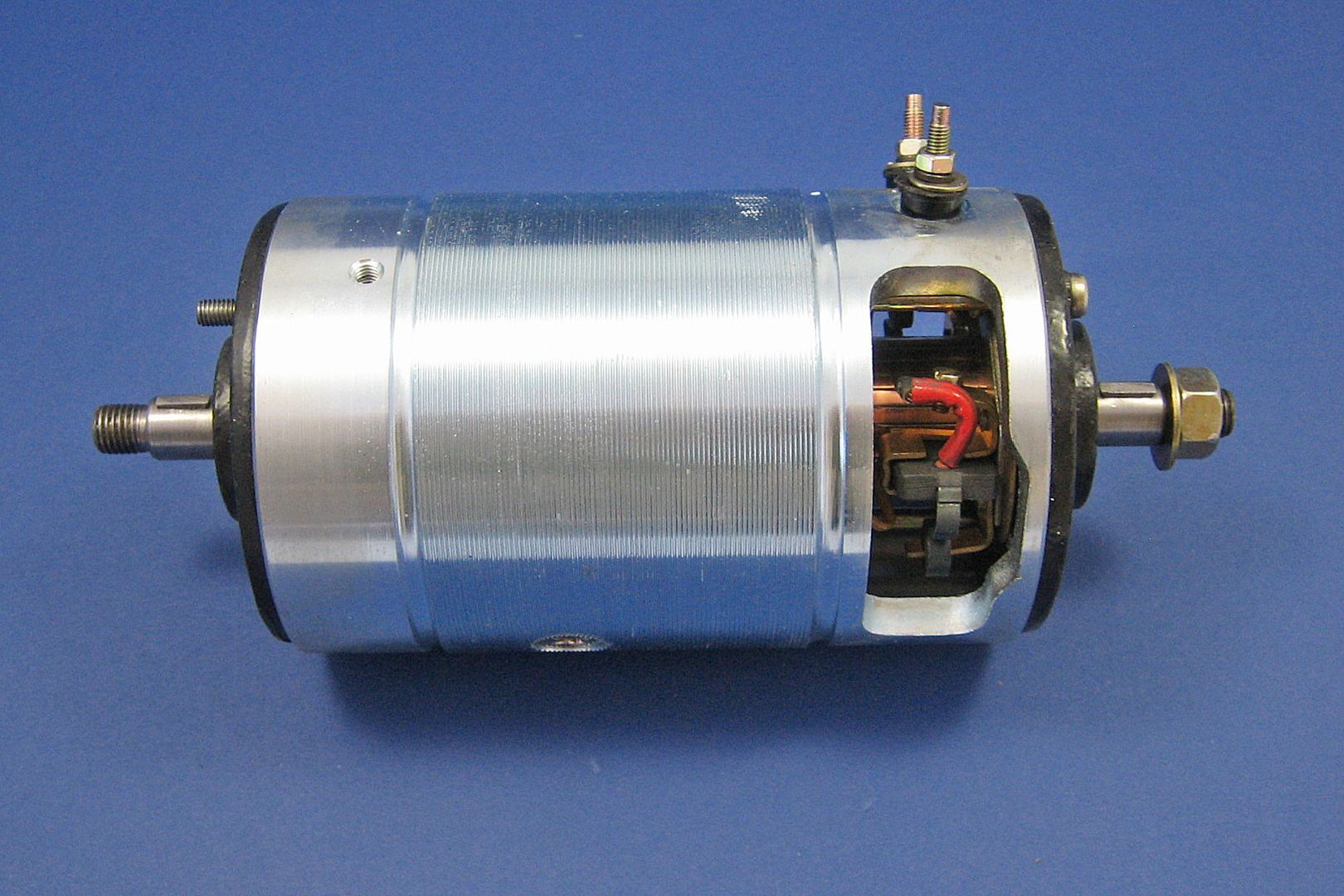

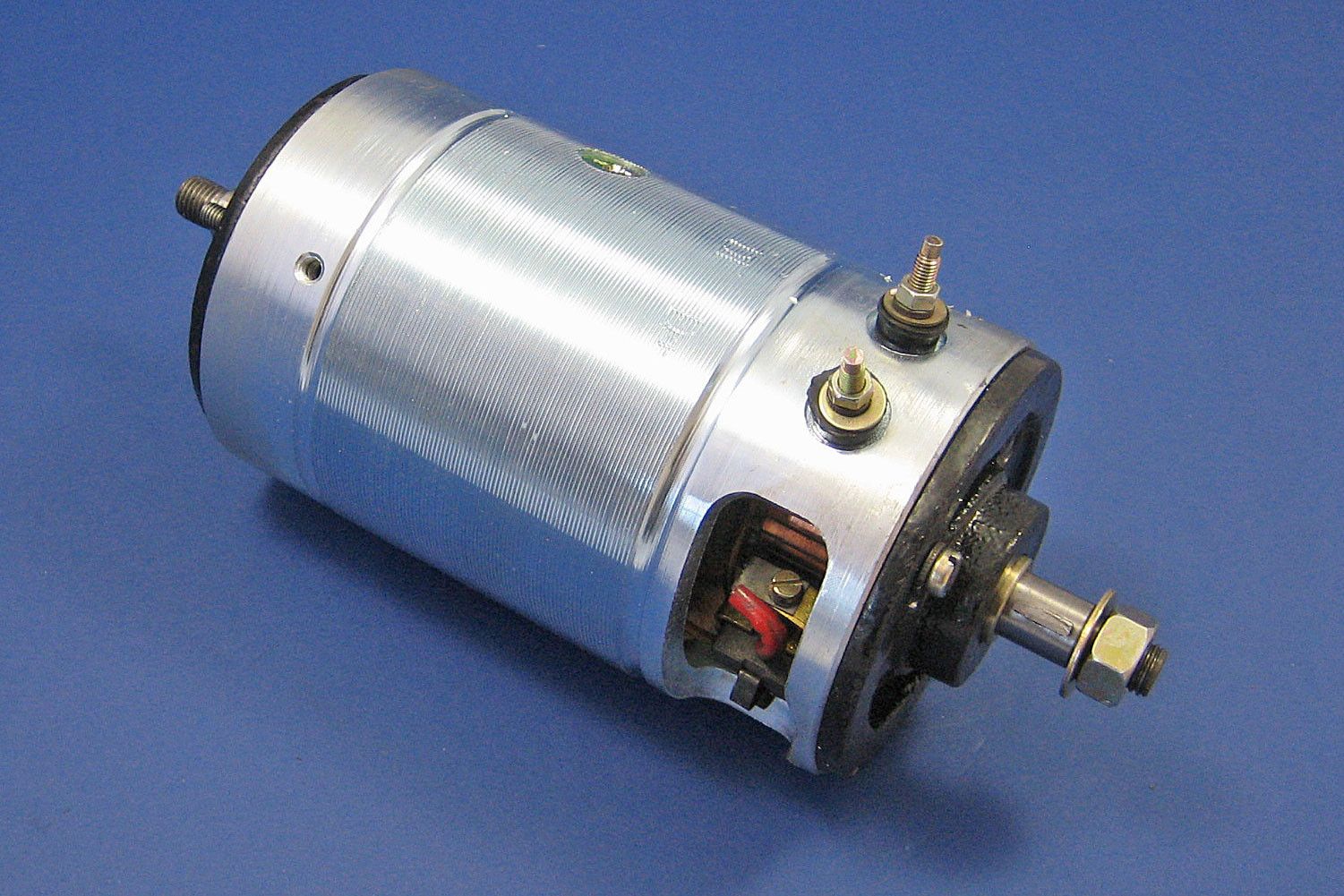

This dynamo is a quality reproduction of Bosch dynamo 0101 302 067. It also replaces 0101 302 068, 075 & 076 units. It has a through shaft, being 15mm diameter at each end. Both have keyways, and keys are supplied. Approximate body diameter 104mm, body length 175mm, overall length, 260mm. Two terminals (M5 studs) D & F. Output, 30A @ 12V. Requires pulley and cooling fan.

This unit can be used with Bosch 12V regulator 0190 309 019
