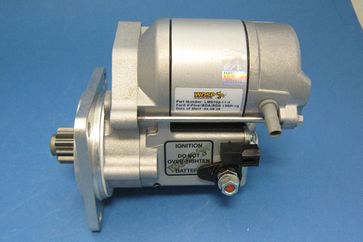

Crossflow with 135T ring gear (DENSO)

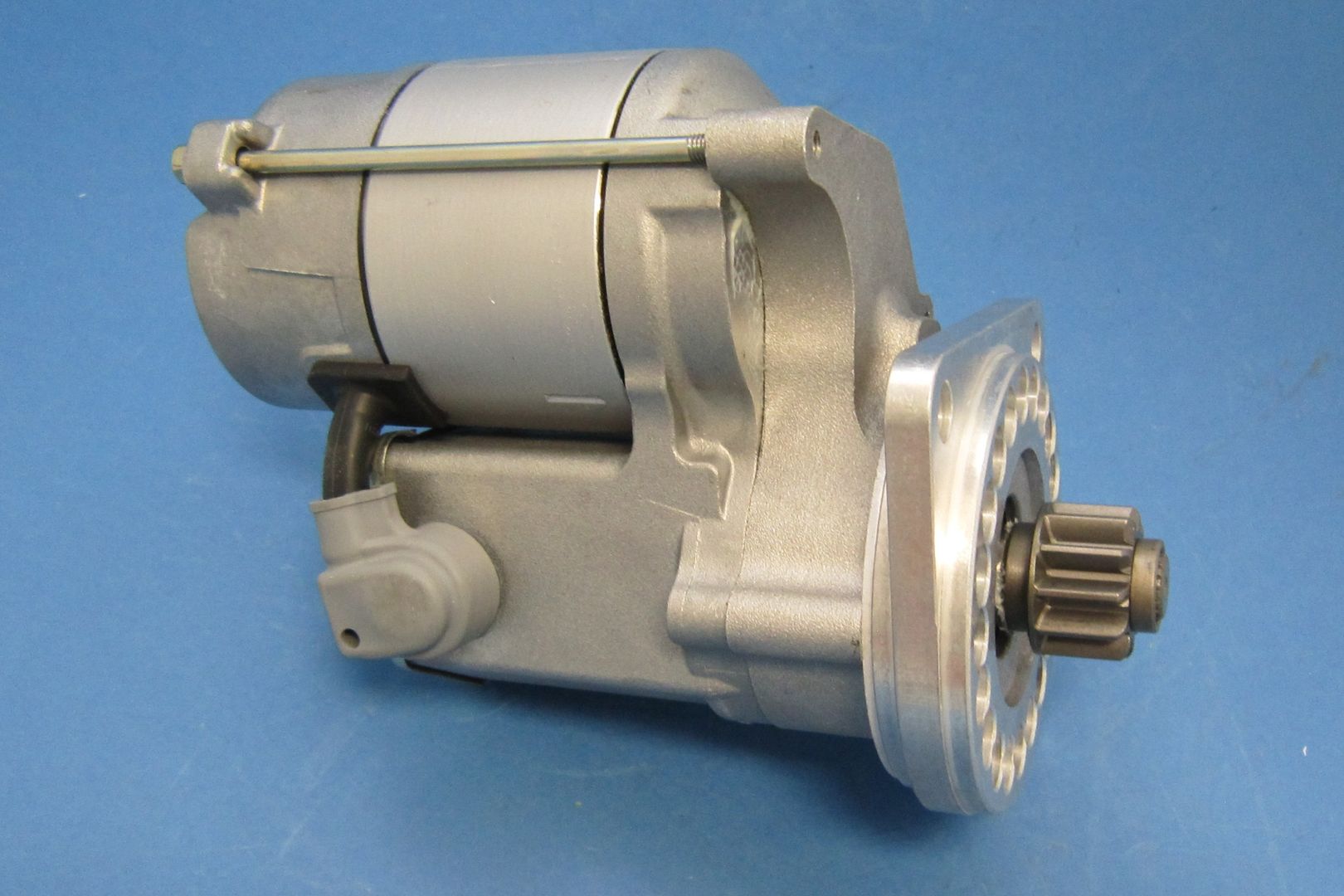

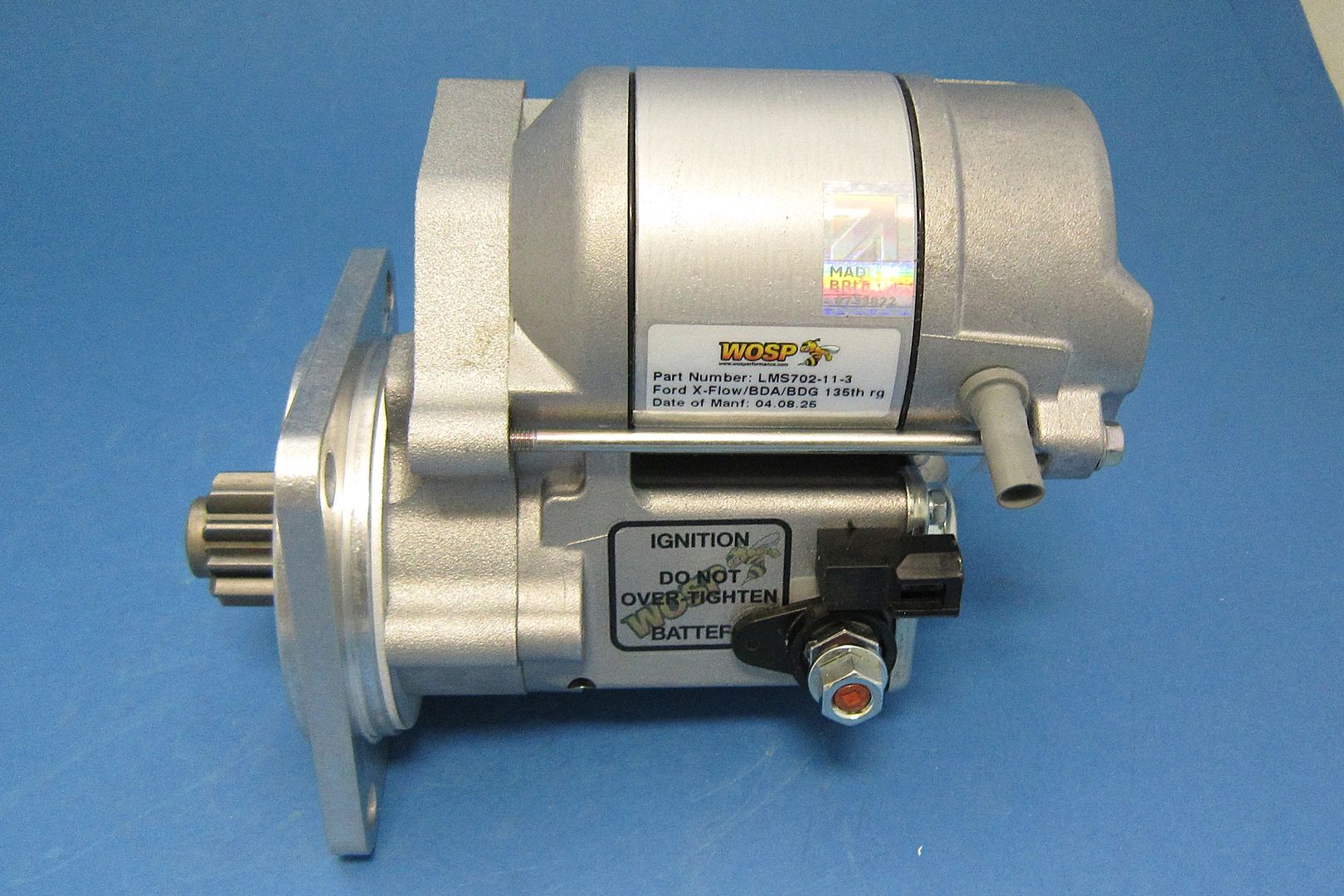

High torque starter motor to fit Ford pre-cross & cross flow engines fitted with 135 tooth ring gear (Pinto).  Denso type.

Originally the Ford starter had a 10 tooth 26.5mm pinion. These starters have an 11 tooth 29mm pinion, offset slightly. The net effect is an even faster cranking speed, on top of that provided by the high torque starter motor.

Hitachi PMGR version (LMS632) also available which is useful when space is at a premium.

• Power 1.4kW
• Starter Weight 3.15kg

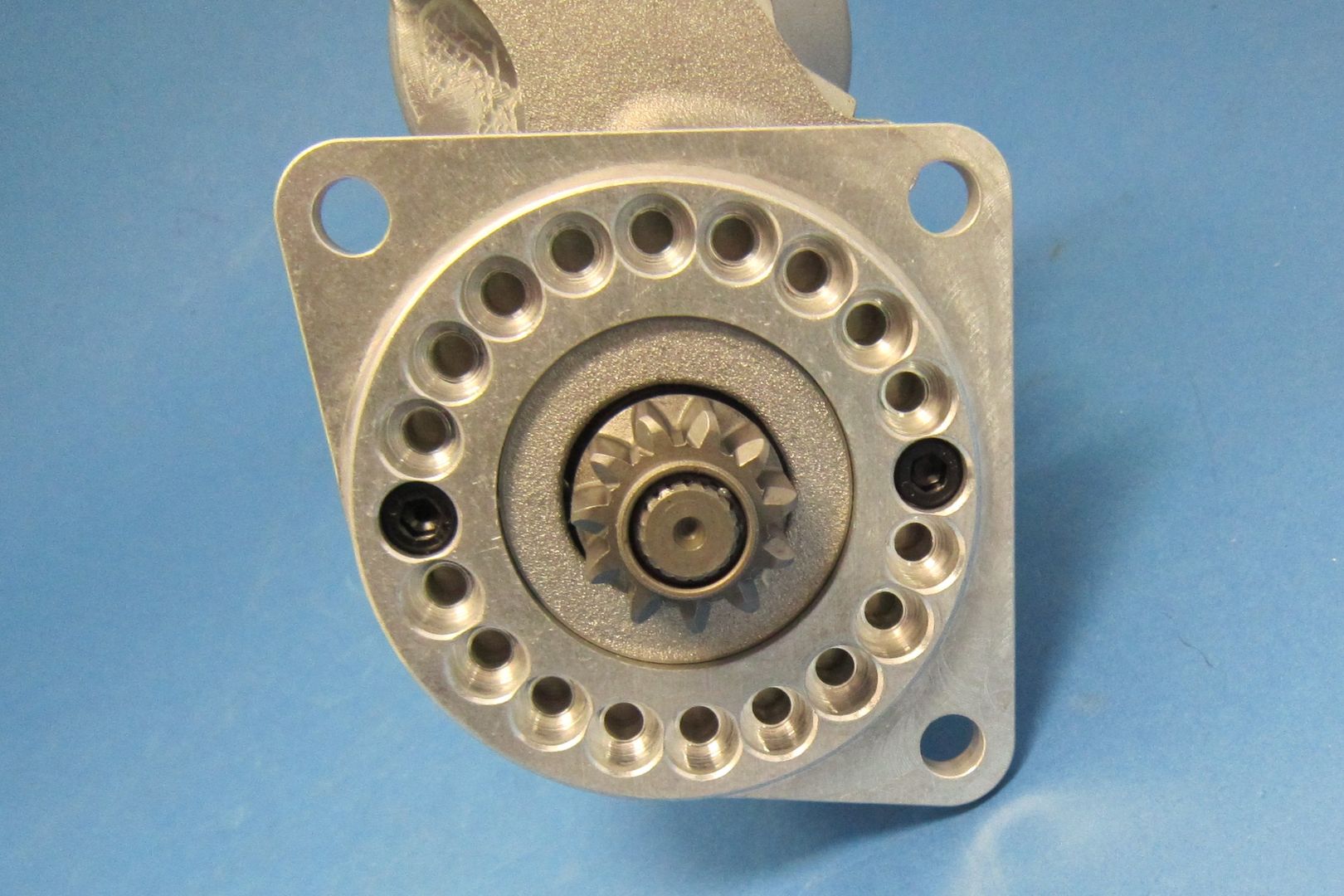

• 11 teeth/ 29mm pinion, replacing 10 teeth/26.5mm diameter pinion
• (3.5") 89mm spigot diameter, (4.5") 114mm bolt hole centre distance
• Works on both negative and positive earth vehicles
• Manufactured by WOSP Performance

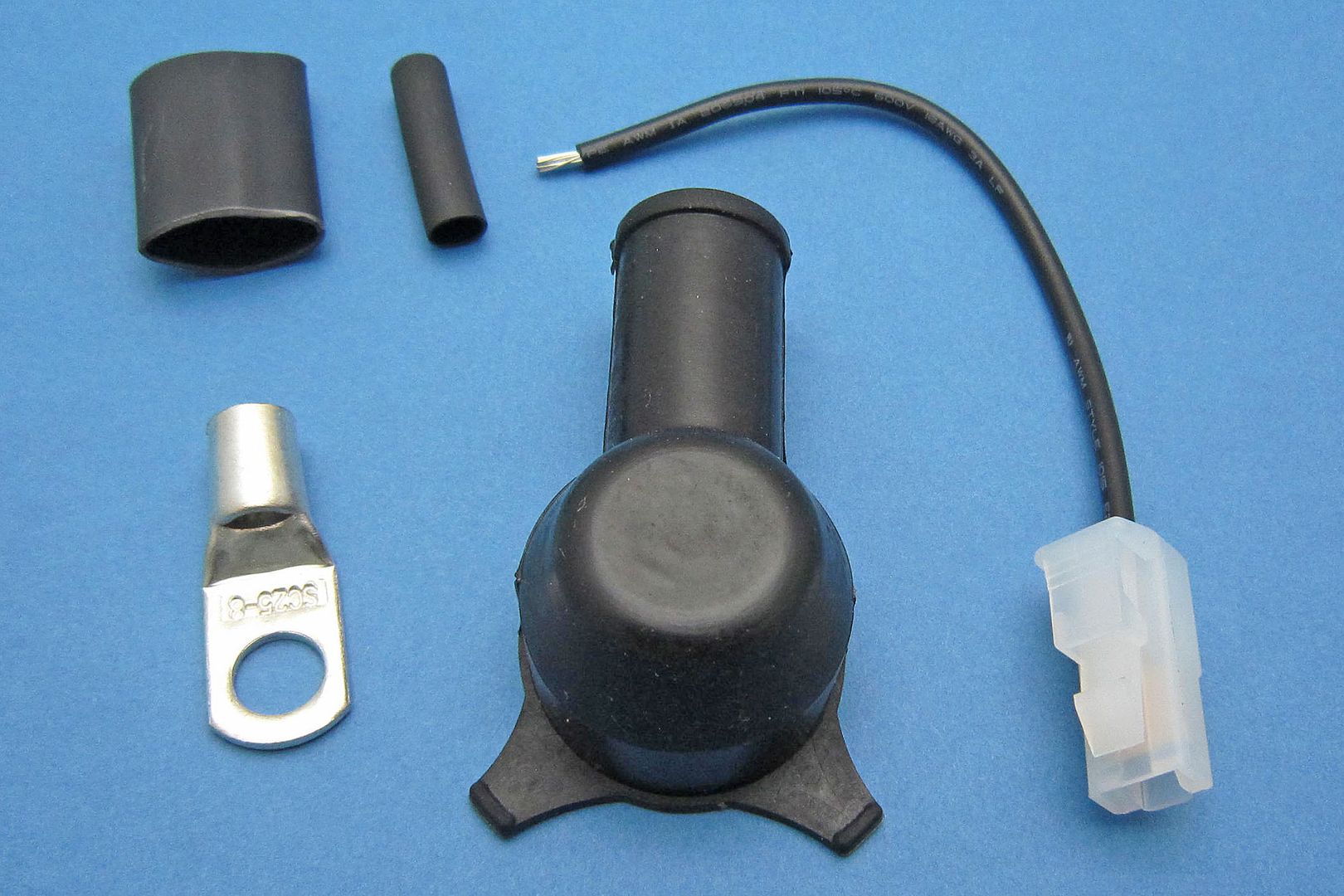

• Supplied with terminal fitting kit
• Three year guarantee
• Free UK mainland carriage

2 or 3 fixing bolt versions available.
