Generic 5 3/4 (H4)

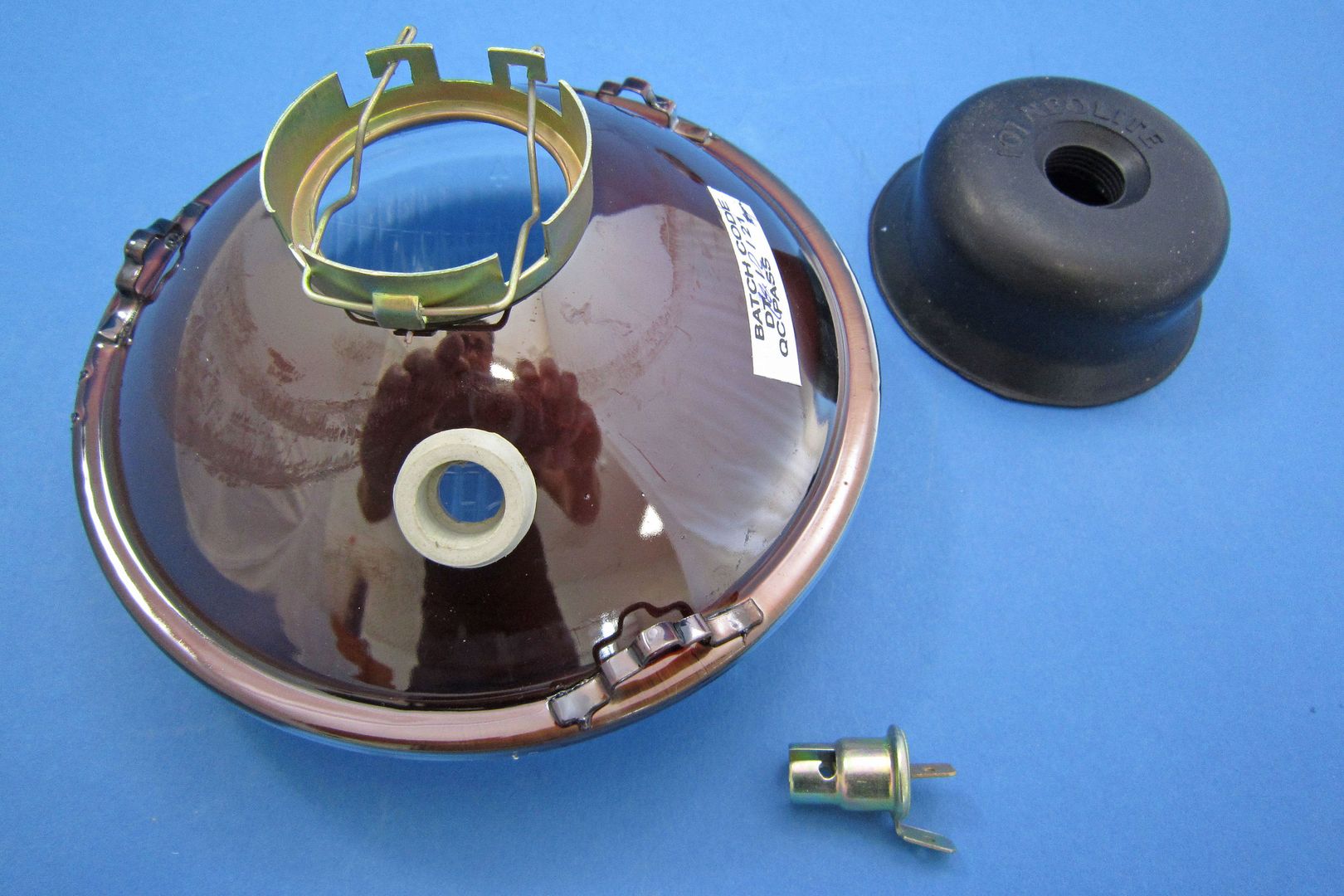

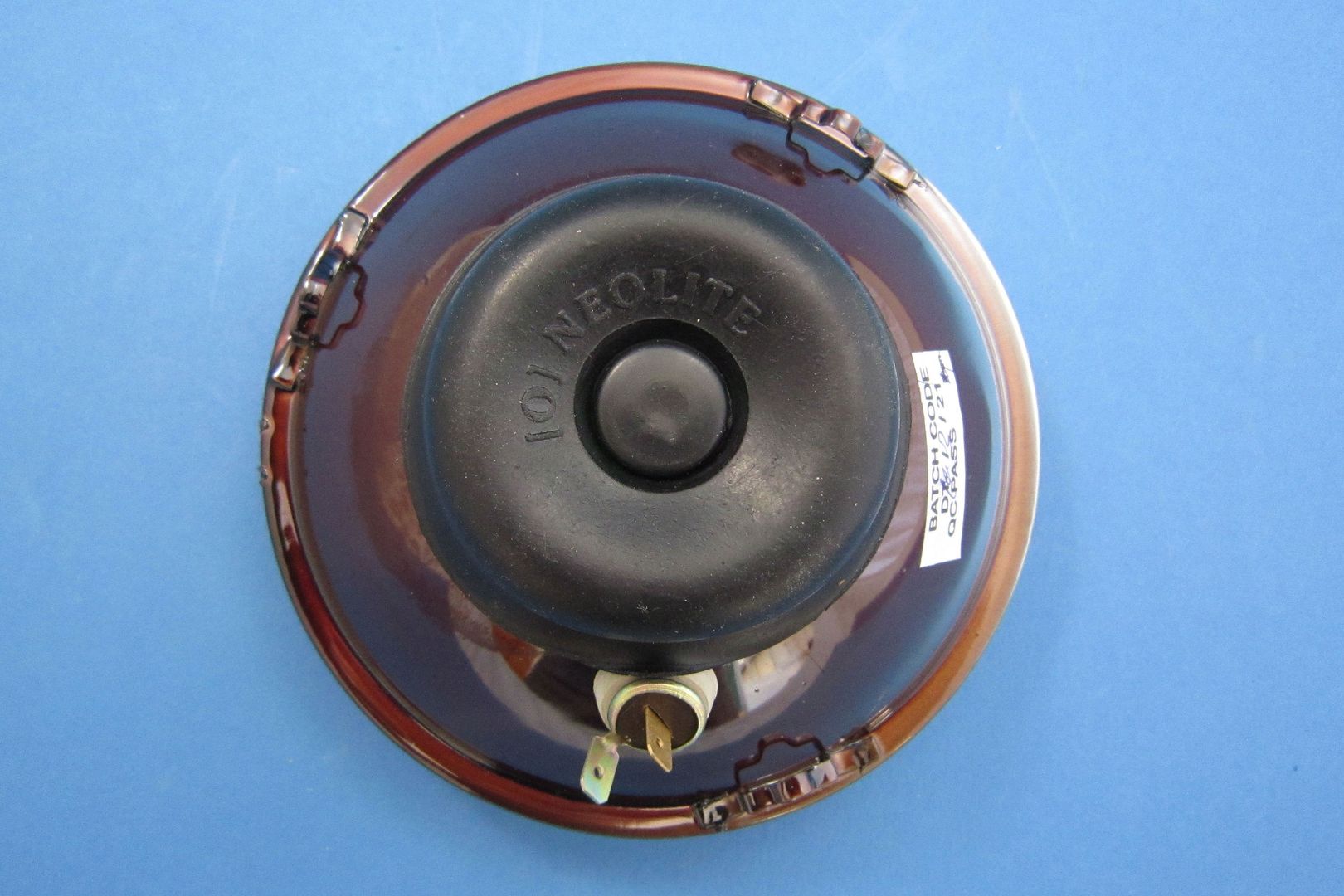

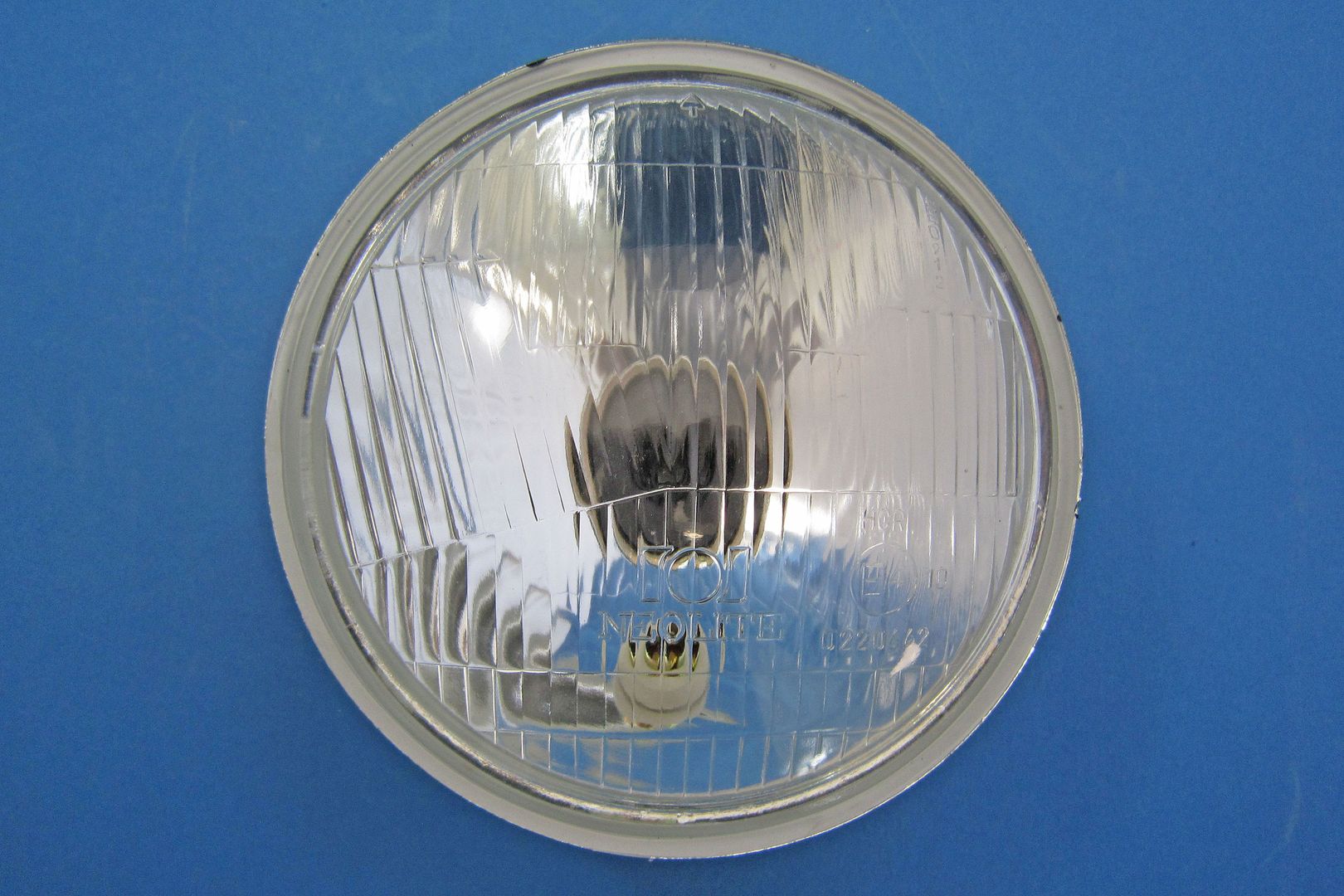

Generic replacement 5 3/4" light units. Glass lenses with metal reflectors having integral side light bulb holders.

These units are physically interchangeable with sealed beam lamps and the bulbs have the same electrical connection. Require 60/55W P43t H4 headlamp bulb and Ba9s sidelamp bulb.  OD 145mm.  Glass bezel 134mm.

3 light units available:

• UK budget Version (170110-Bud). Supplied with rubber cover and side light bulb holder.
• UK Version (170110). As supplied to Caterham Cars. Supplied with rubber cover, but require BA9s pilot light bulb holder
• European Version (170117), for use when driving on right hand side of the road. As supplied to Caterham cars and also supplied with rubber cover, but require BA9s pilot light bulb holder

Lucas version also available for UK lamp.

For units with side light aperture, the suitable connecting harness is 170204.
