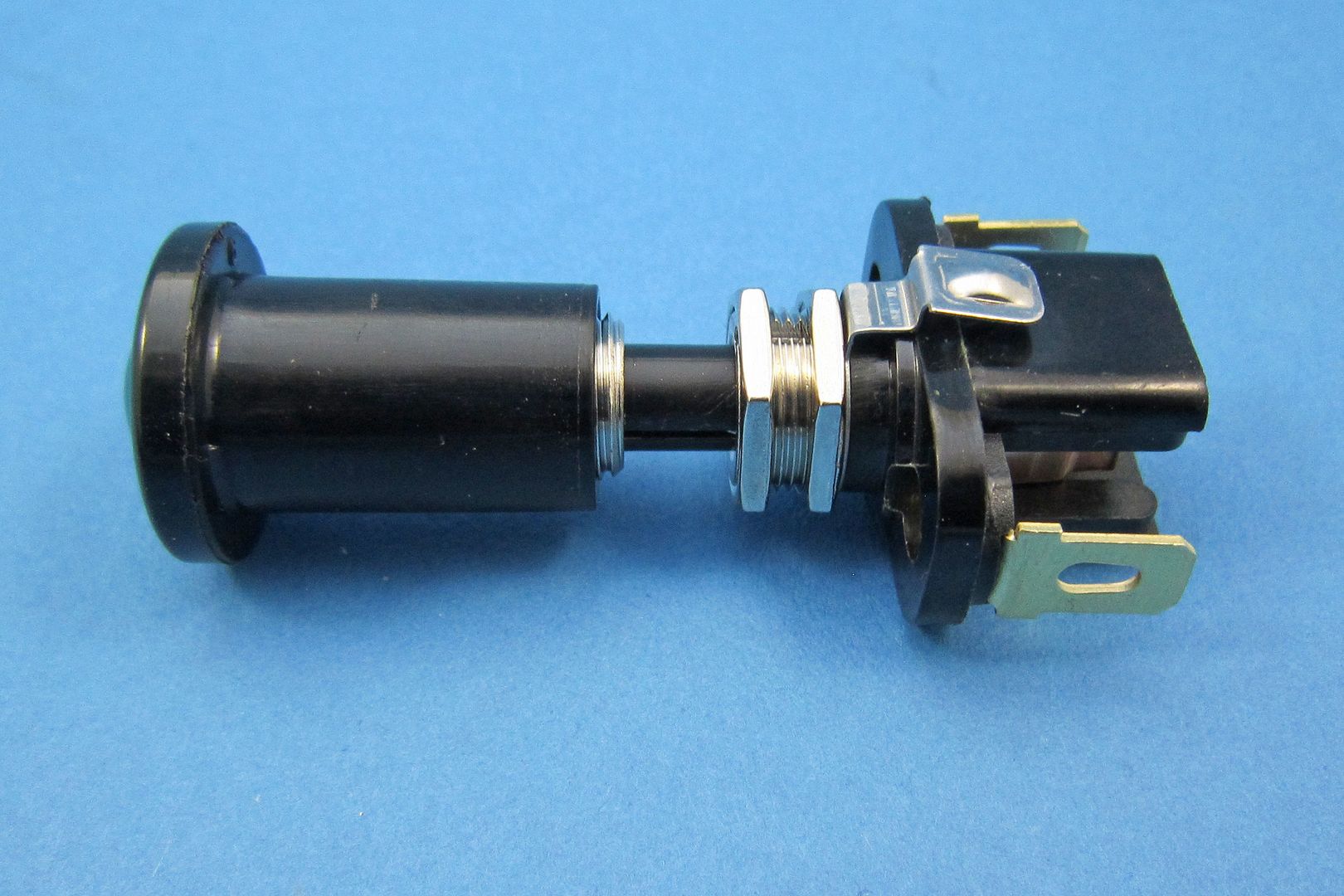

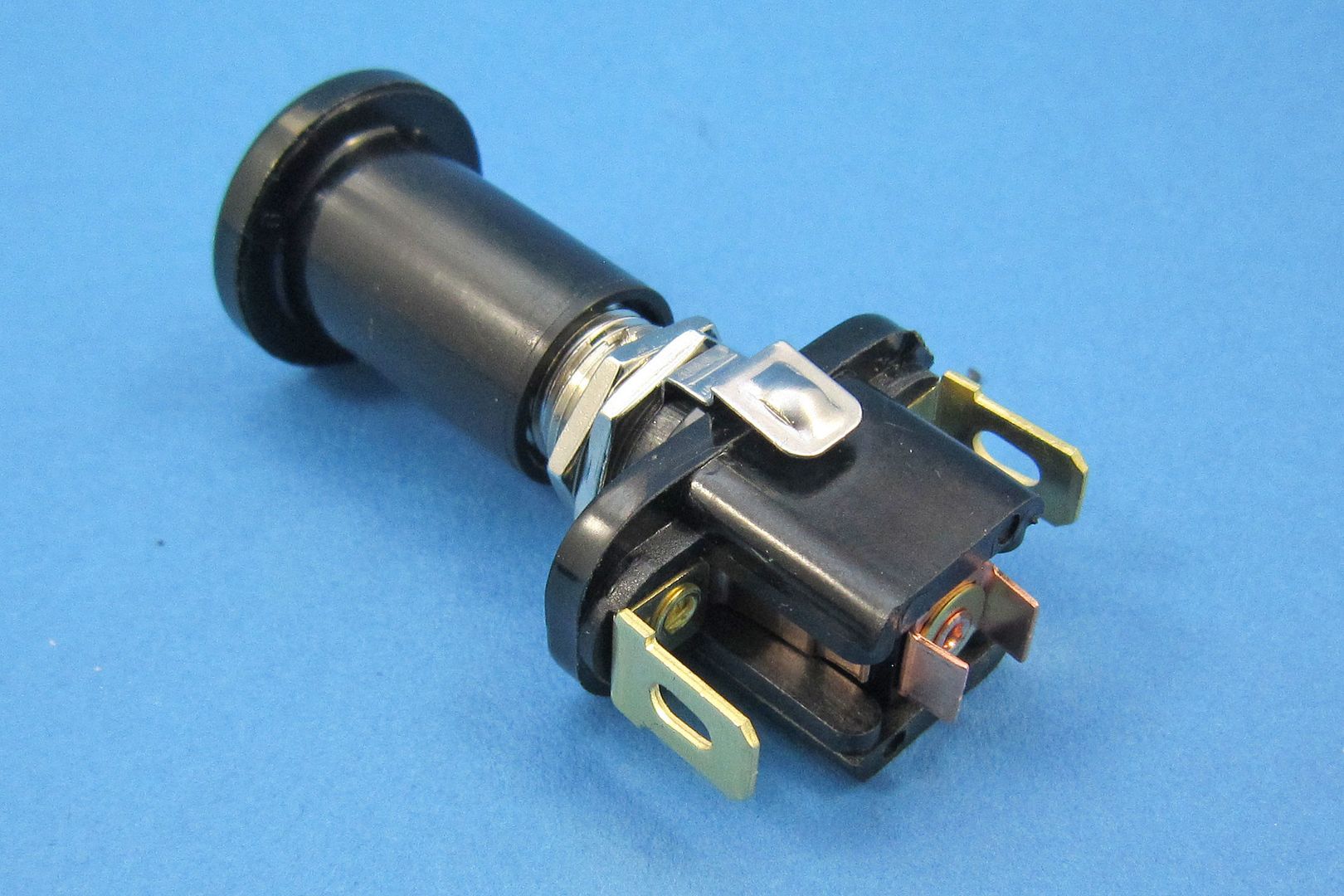

Illuminated on/off push/pull switch

Only illuminated when switched on. 6.3 mm blade terminals. 10A@12V.

12mm fixing hole. Max panel thickness 3mm. 3rd terminal is earth for the bulb. Switch makes contact when pulled out.

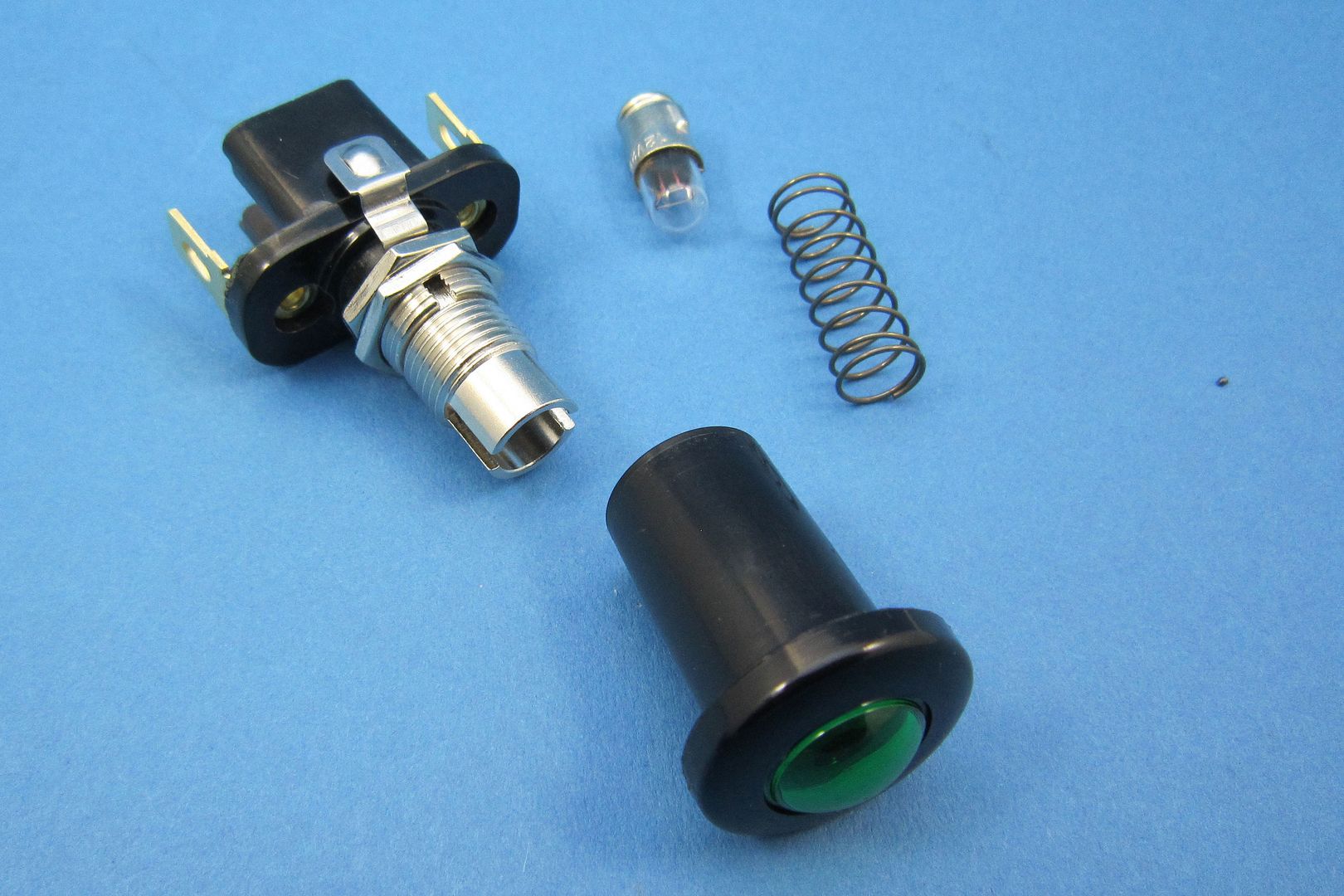

Supplied and fitted with BA7s 12V LED bulb. (Please note, if you are going to use this switch on a positive earth car, then a non LED bulb will need to be used within the switch)

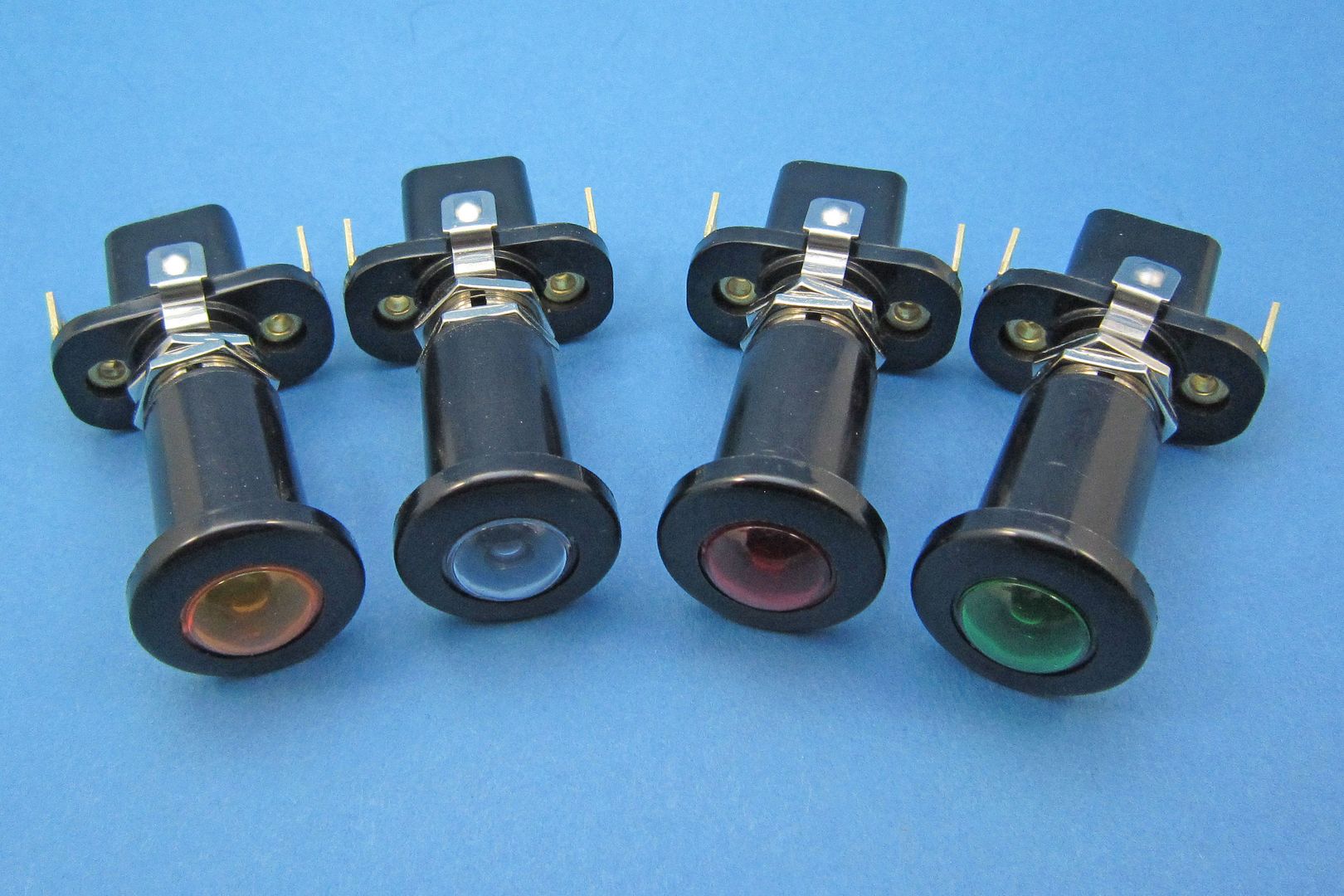

Available with green, red, clear or amber lens.
