Lucas 34477 Push/Pull

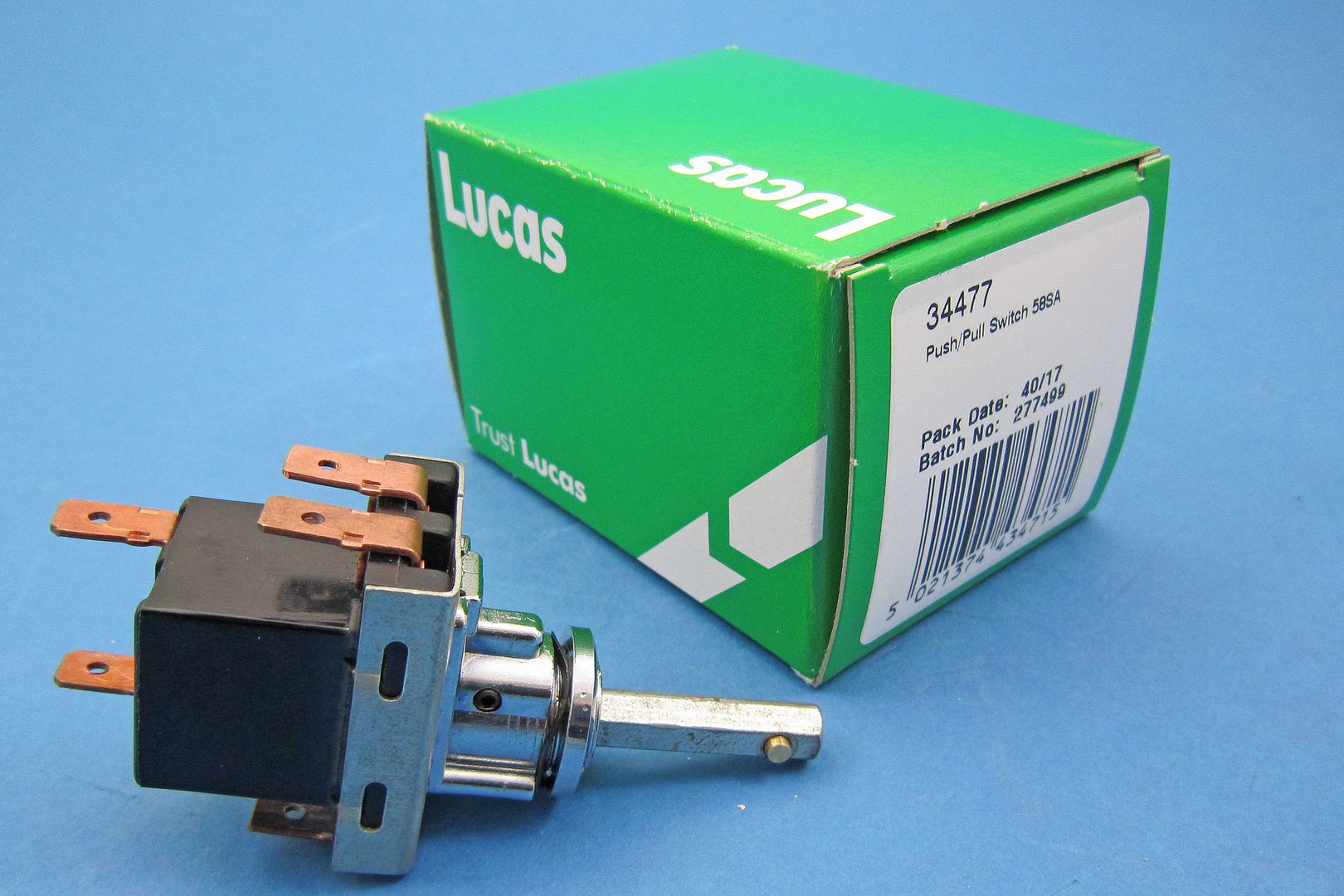

Lucas 34477 3 position push/pull switch.

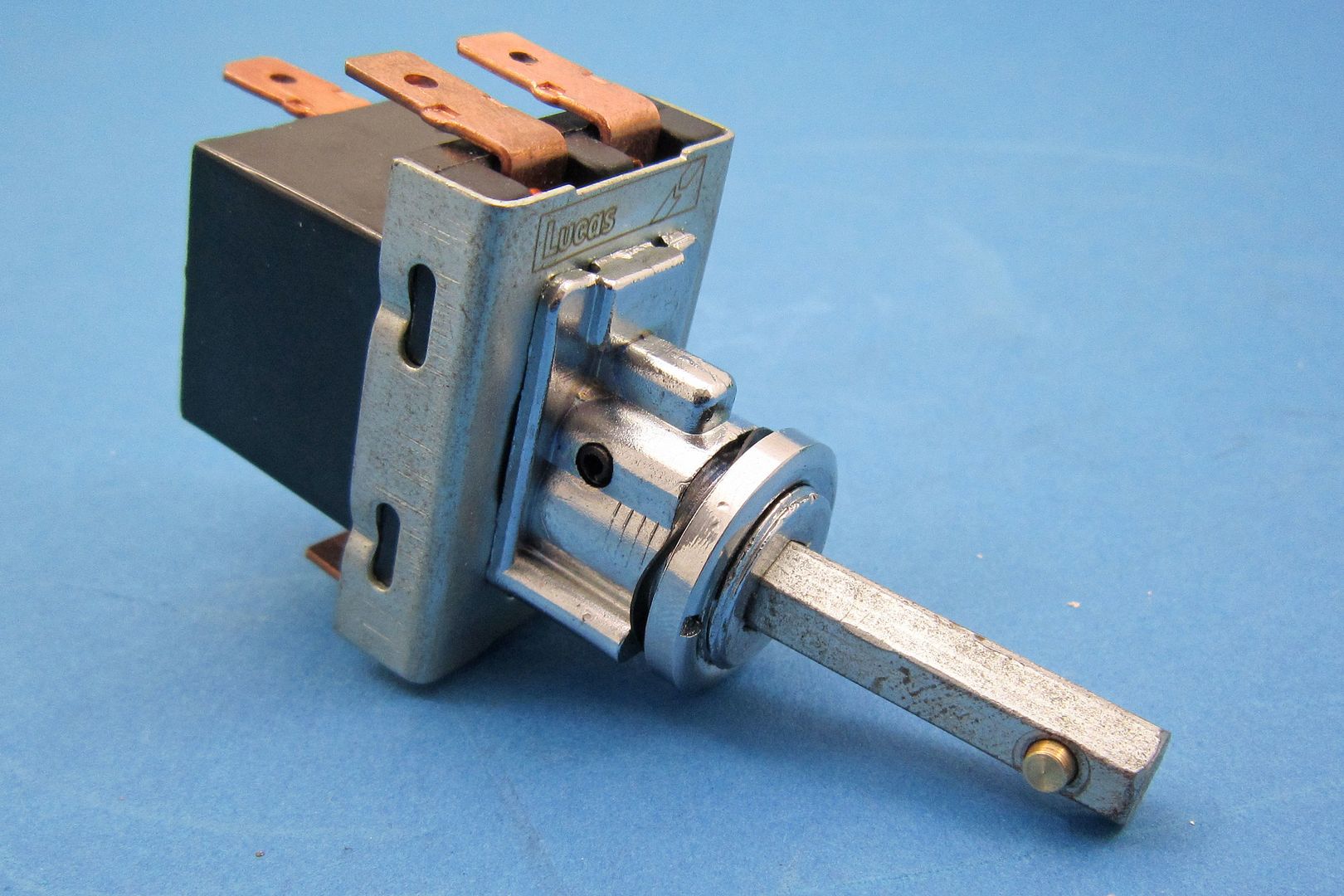

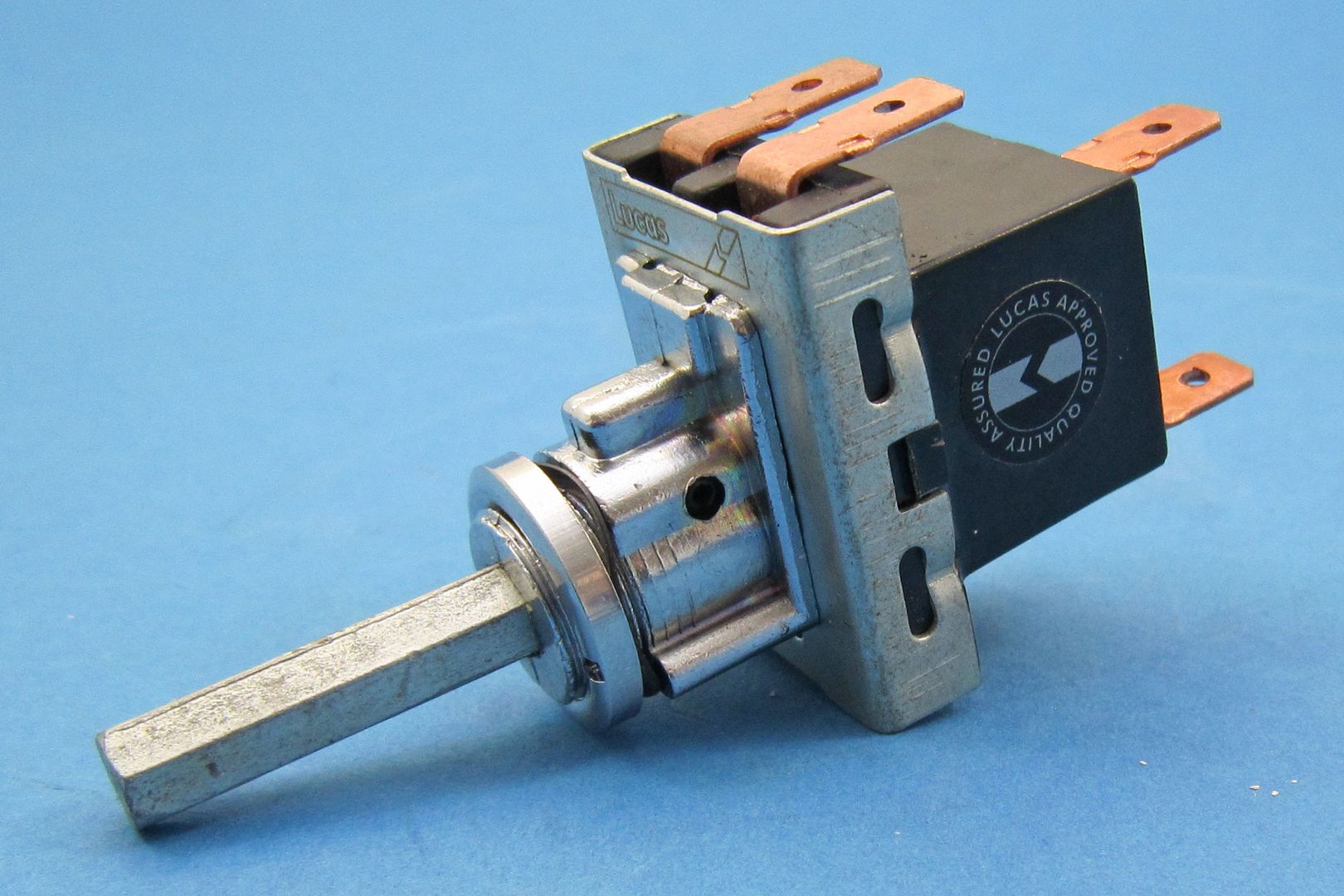

Has 1/4" hexagonal shaft with spring loaded button to hold on knob, and 6 x 6.3mm blade terminals.

Requires 14mm panel hole, max panel thickness 3mm.

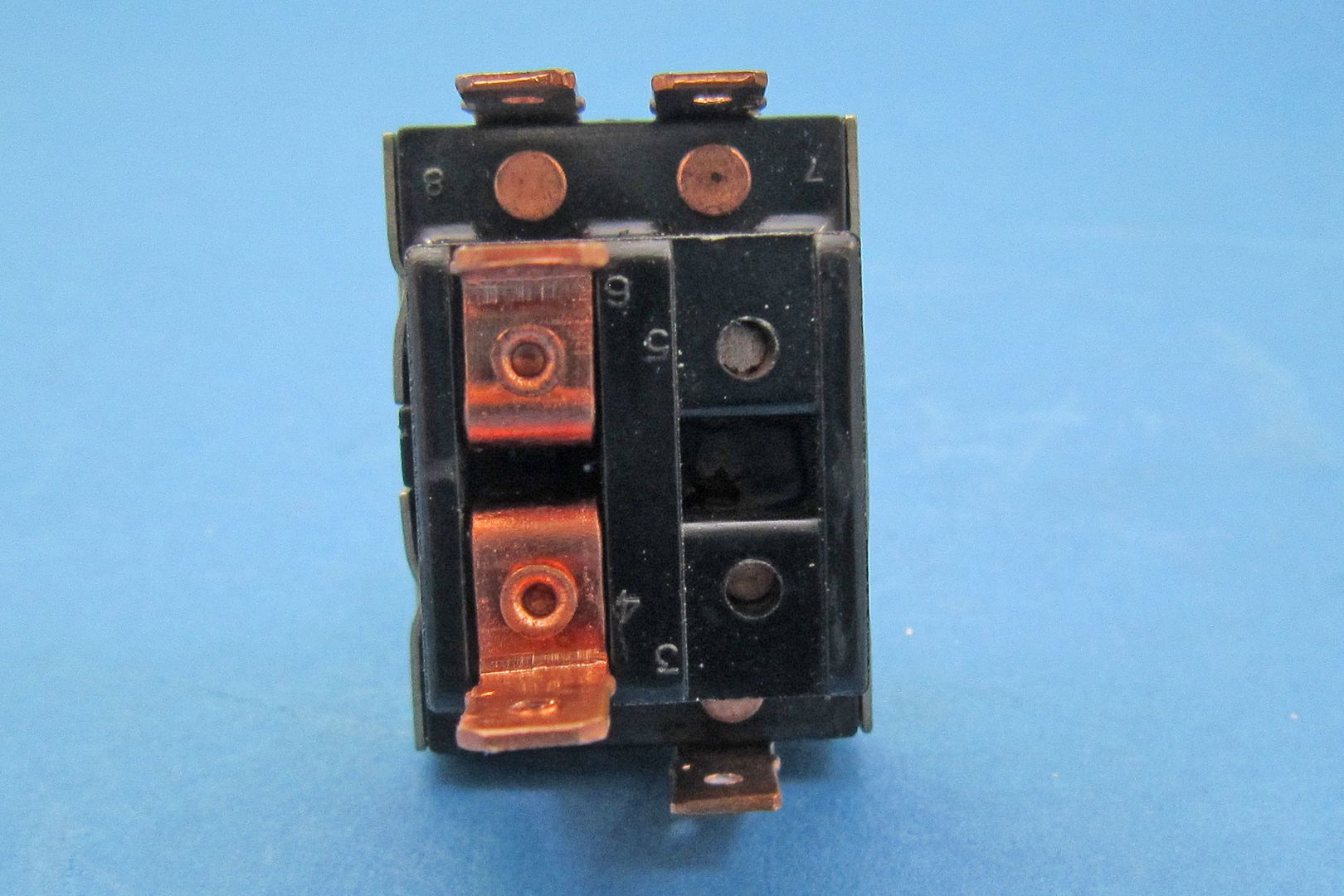

Connections as follows:

• Position 1 (fully in), terminals 1,6 & 7 connected
• Position 2 (middle), terminals 1,4,6 & 7 connected
• Position 3 (fully out), terminals 1,4,7 & 8 connected

To use as a lighting switch:

• Power in - Terminal 1
• Sidelights - Terminal 4
• Headlights - Terminal 8
