Lucas C39 (Climax)

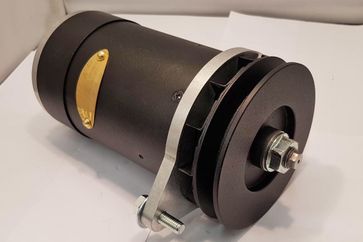

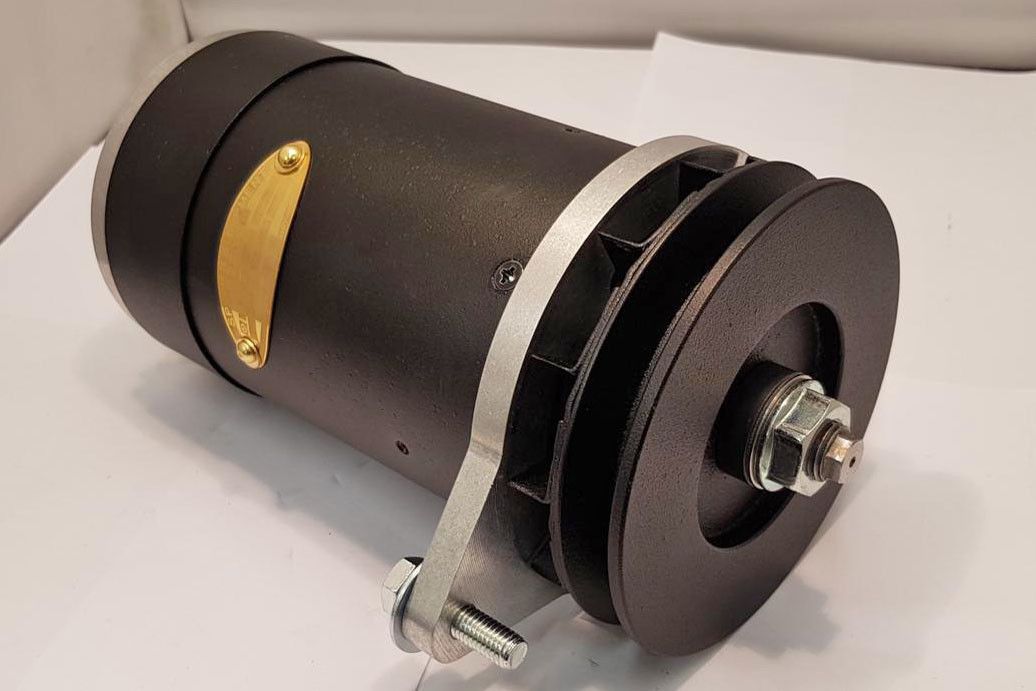

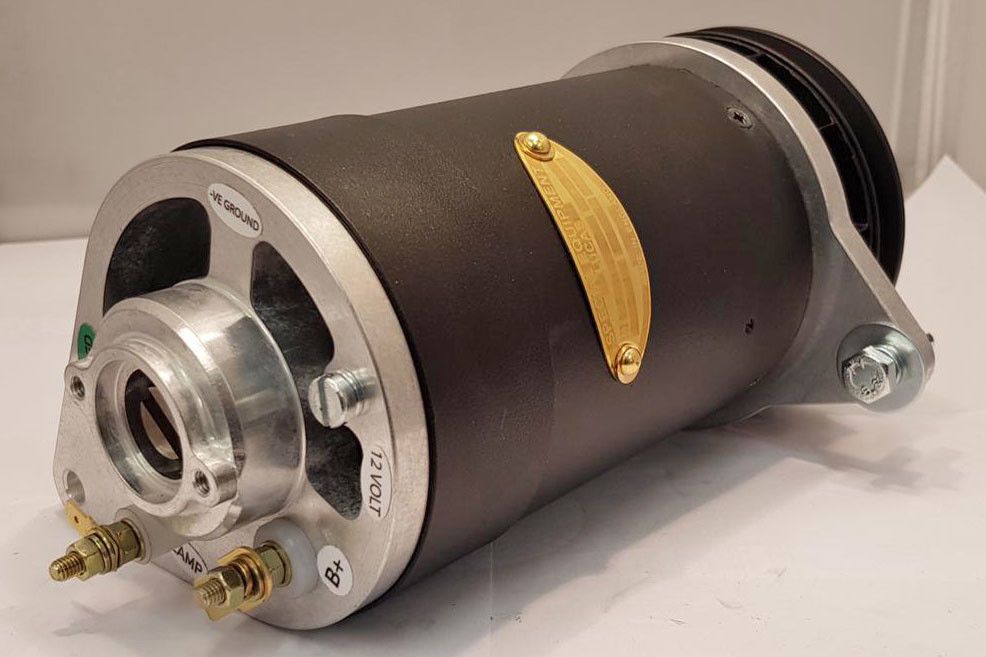

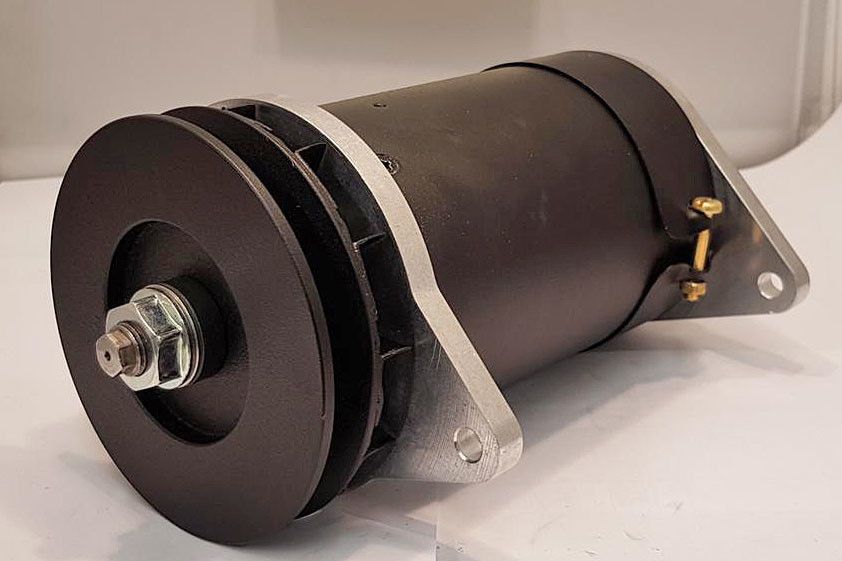

This 12V Dynator unit replaces the Lucas C39 that was used specifically on the Coventry Climax engine, as fitted in the Lotus Elite etc. It is supplied with a 4.5" pulley (LMP091) to take a 13mm section belt and has an end plate ready to accept the tacho drive gearbox. Stud terminal connections.

• Diameter 3.9" (99mm)

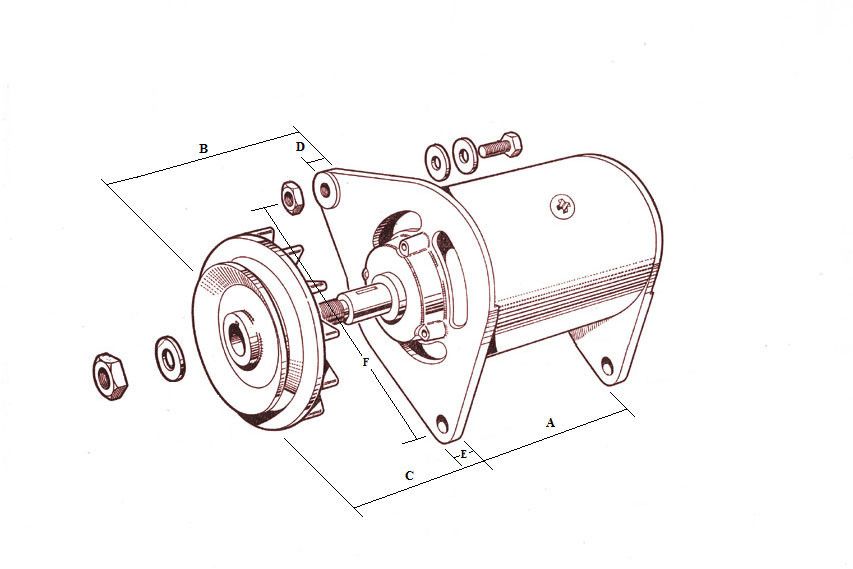

• Internal mounting flange distance (Dim A) 145mm
• Shaft diameter 15mm
• 50A output
• 3 year guarantee

Electrical connection to the vehicle is easy and straight forward using the original dynamo control box as a junction box. Fitting instructions are given in the downloads section below (one for negative earth installations, the other for positive earth). Alternatively, the original voltage control box can be removed and replaced with a fused dummy control box, which can be used as a suitable junction box to easily connect the Dyantor to the vehicles wiring.
