Lucas C40A Dynamo Reproduction

The Lucas C40A dynamo, is essentially a sealed C40 dynamo, with no ventilation openings in the castings. Primarily used on agricultural vehicles, or in dirty conditions. Due to its lack of ventilation, current output needs to be limited, otherwise it will overheat. The easiest way to do this, is with an 11A current limiting regulator.

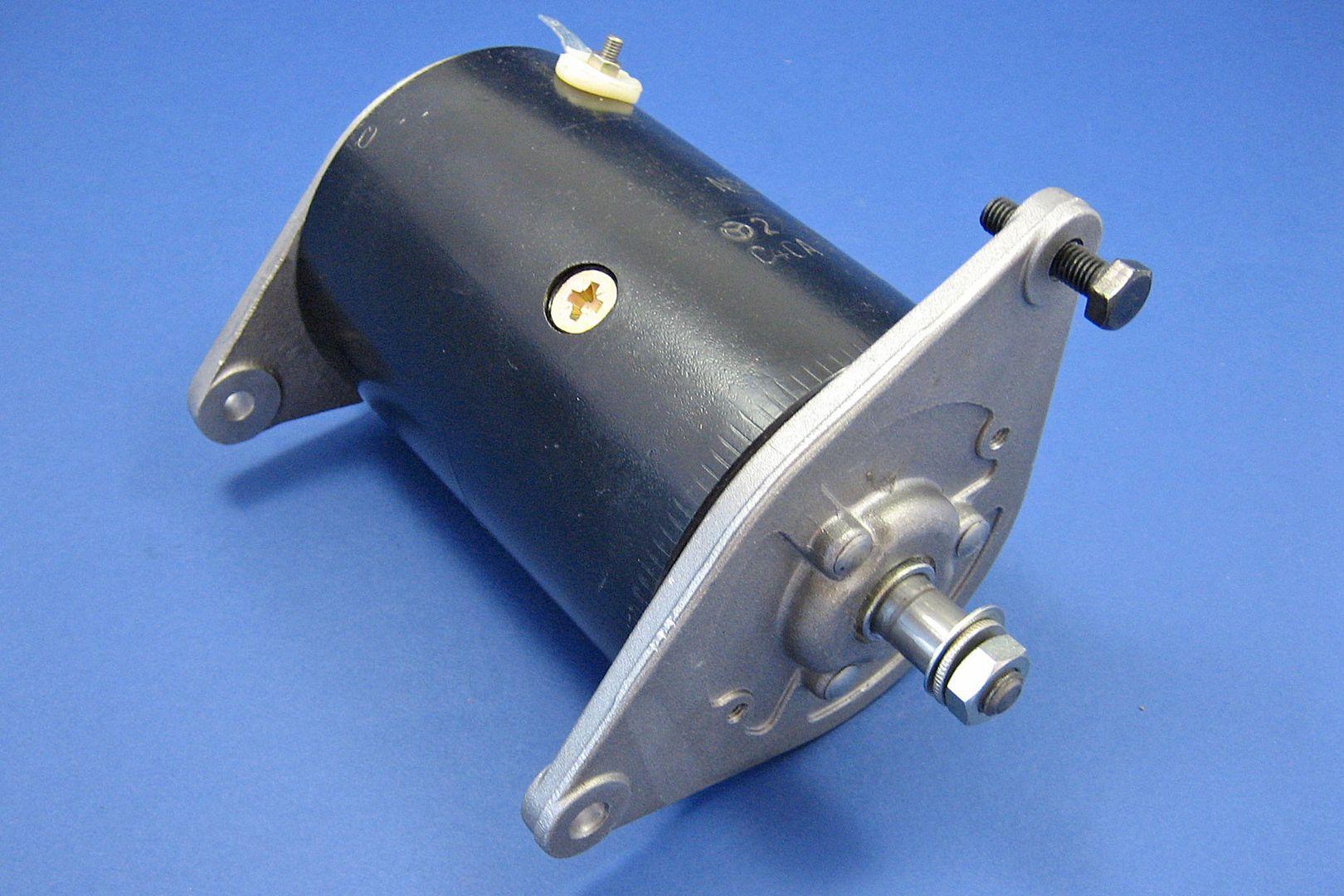

This is a well engineered copy of the Lucas C40A dynamo and has a 15mm diameter shaft, and comes with key, nut and spring washer. Has two terminals. 9.5mm male blade (D+) and 6.3mm male blade (F). Requires fan and pulley.
