Lucas SFB300 Hazard Kit

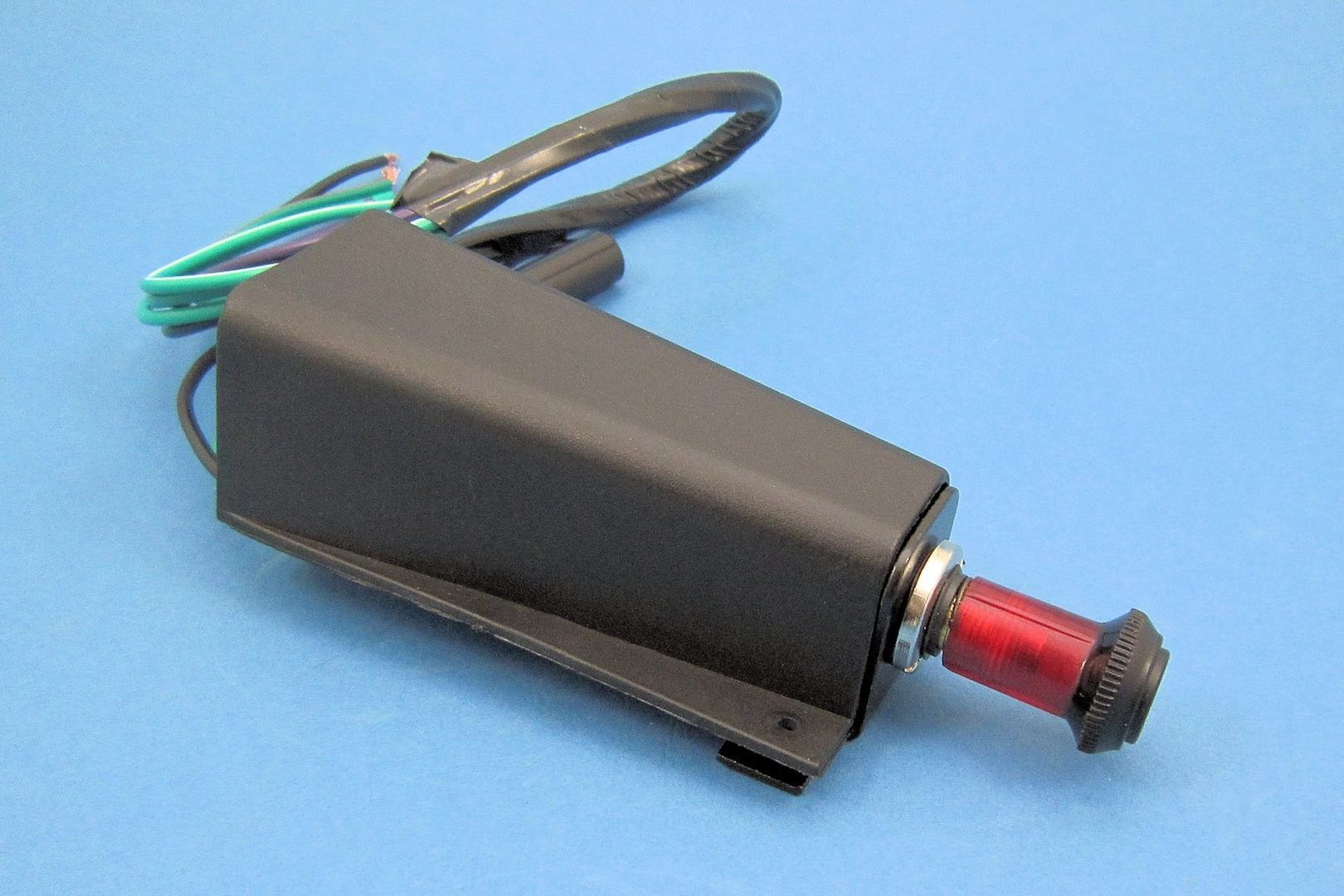

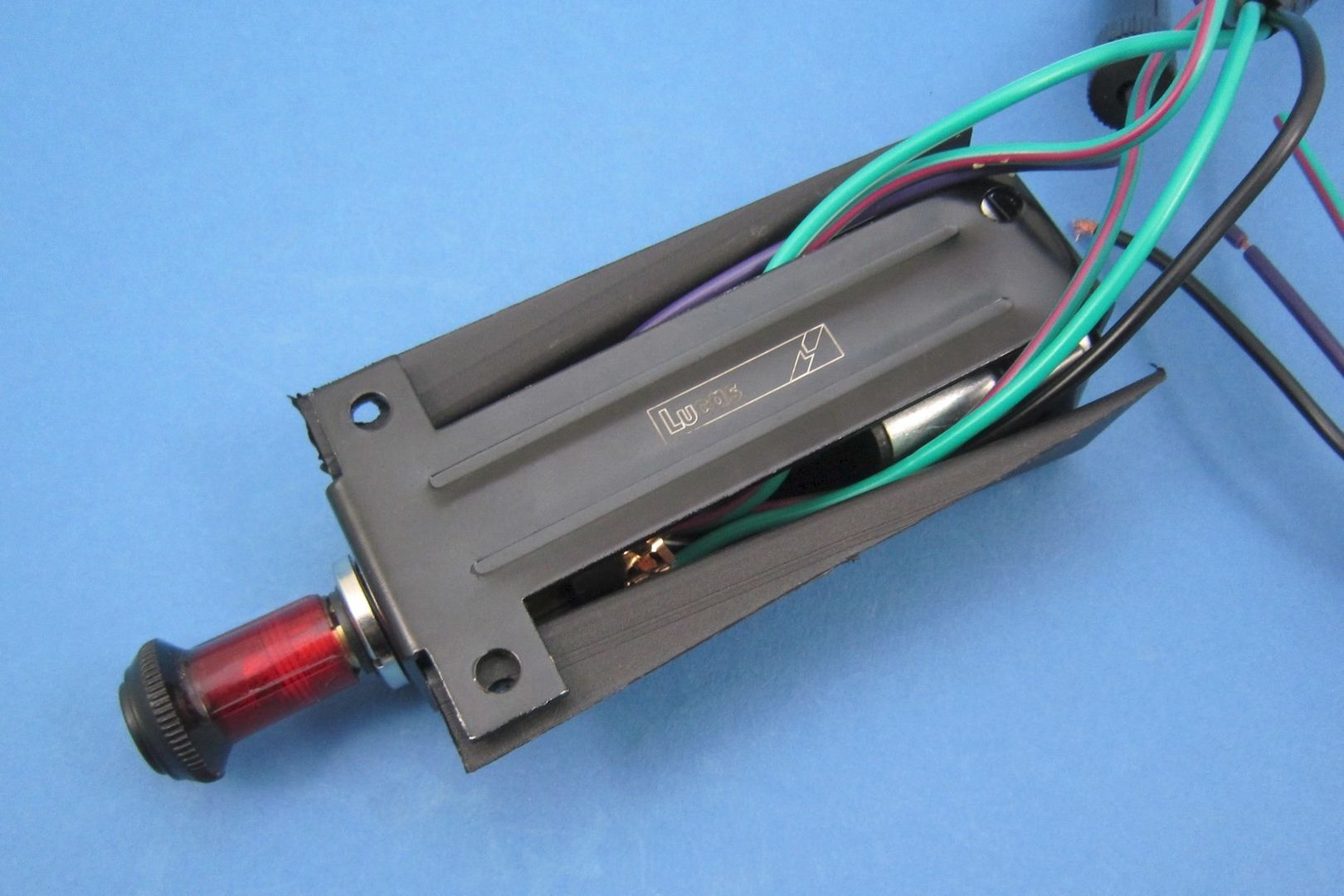

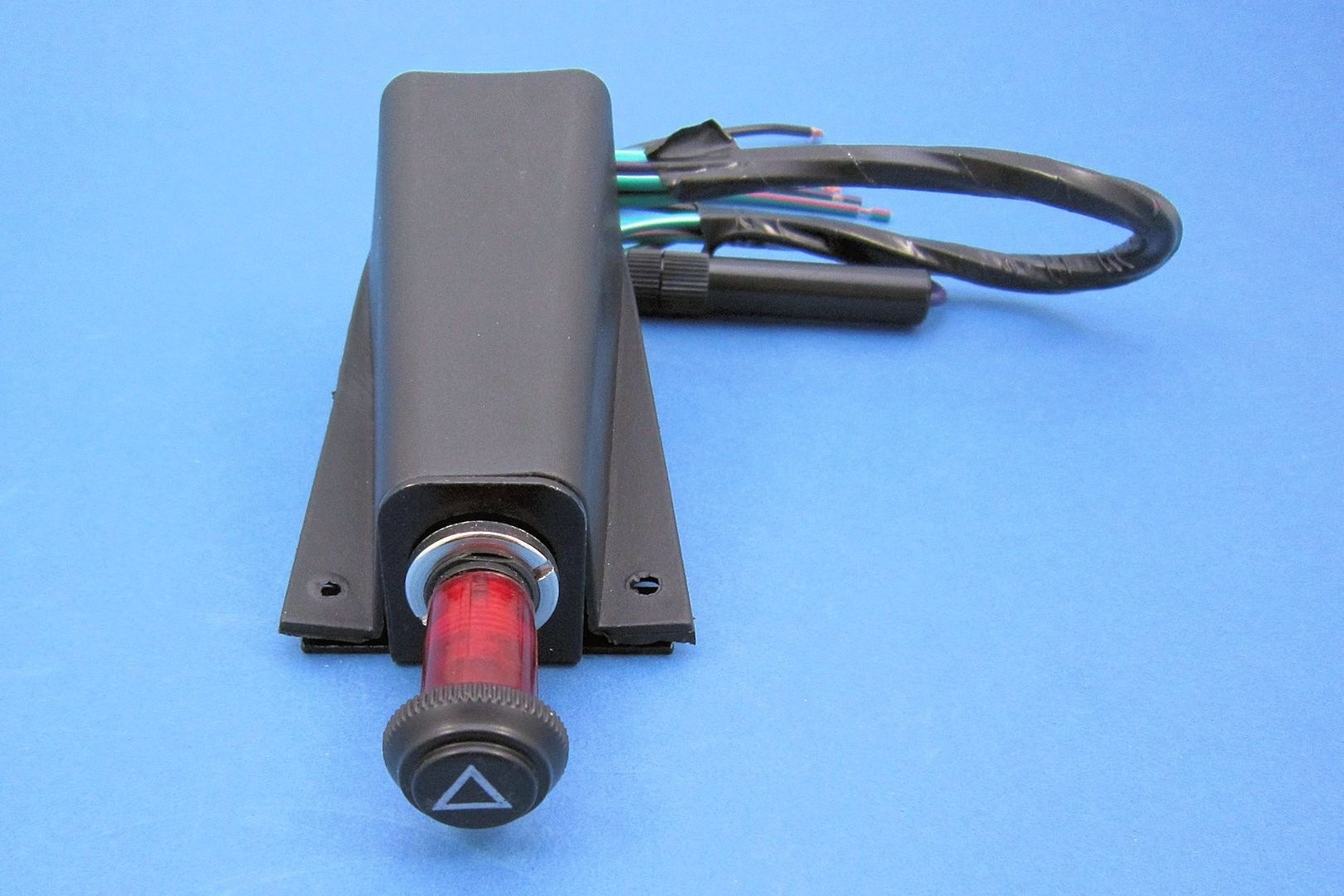

Lucas SFB300 hazard kit. Includes hazard flasher relay, switch (with illuminated knob) and mounting bracket to enable hazard lights to be easily fitted to any vehicle with existing indicators. Suitable for 12V vehicles. For use on either negative or positive earth vehicles.

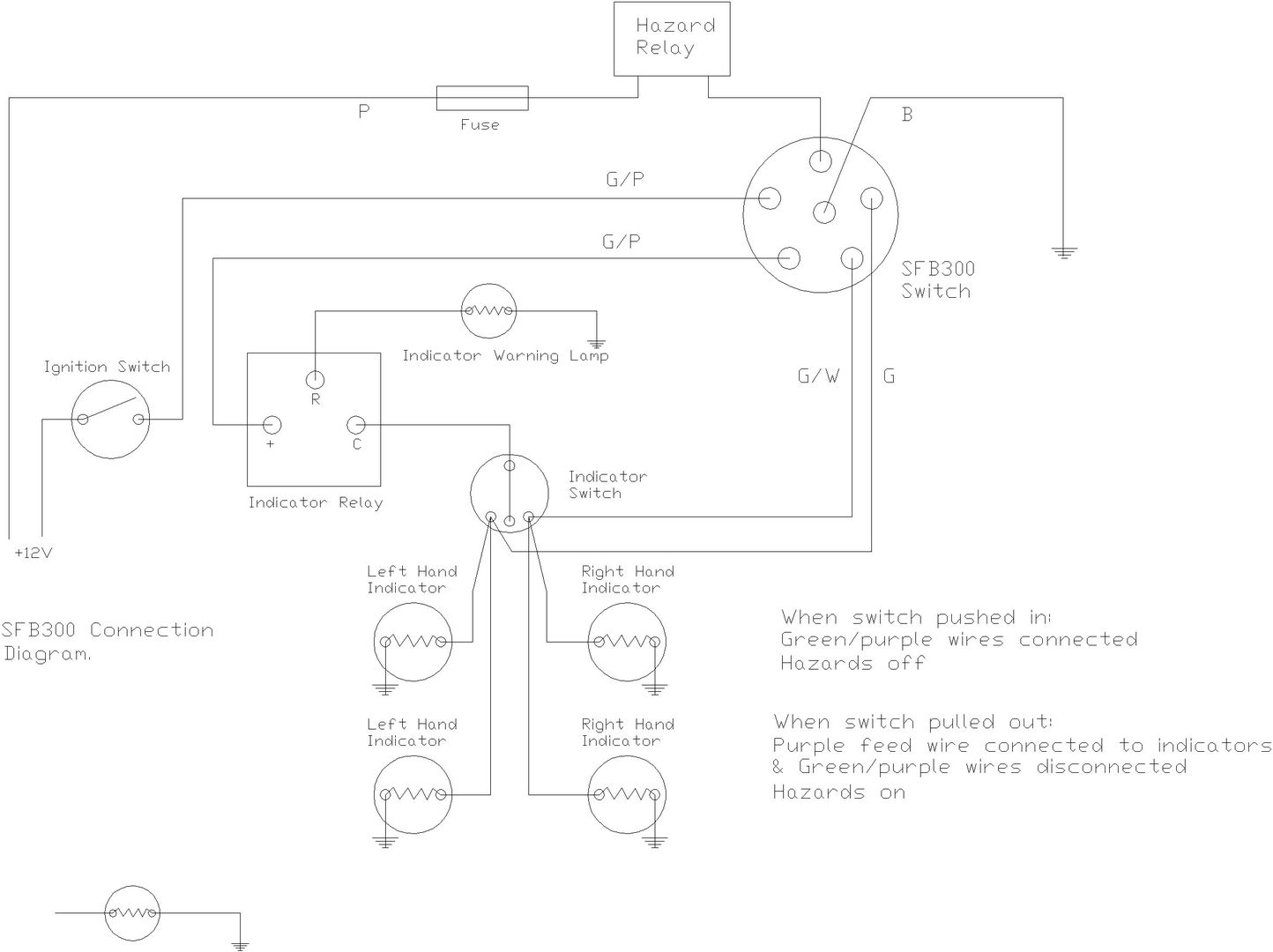

Connections as follows:

Purple - Live feed (with 30 amp in-line fuse)

Black - Earth

Green/White - RH indicators

Green - LH indicators

Green/Purple x 2. Cut existing feed of indicator relay on vehicle and connect either end of cut cable to one of the green/purple wires. This has the result, that when the SFB300 hazard switch is operated, it will cut the supply to the existing indicator relay.

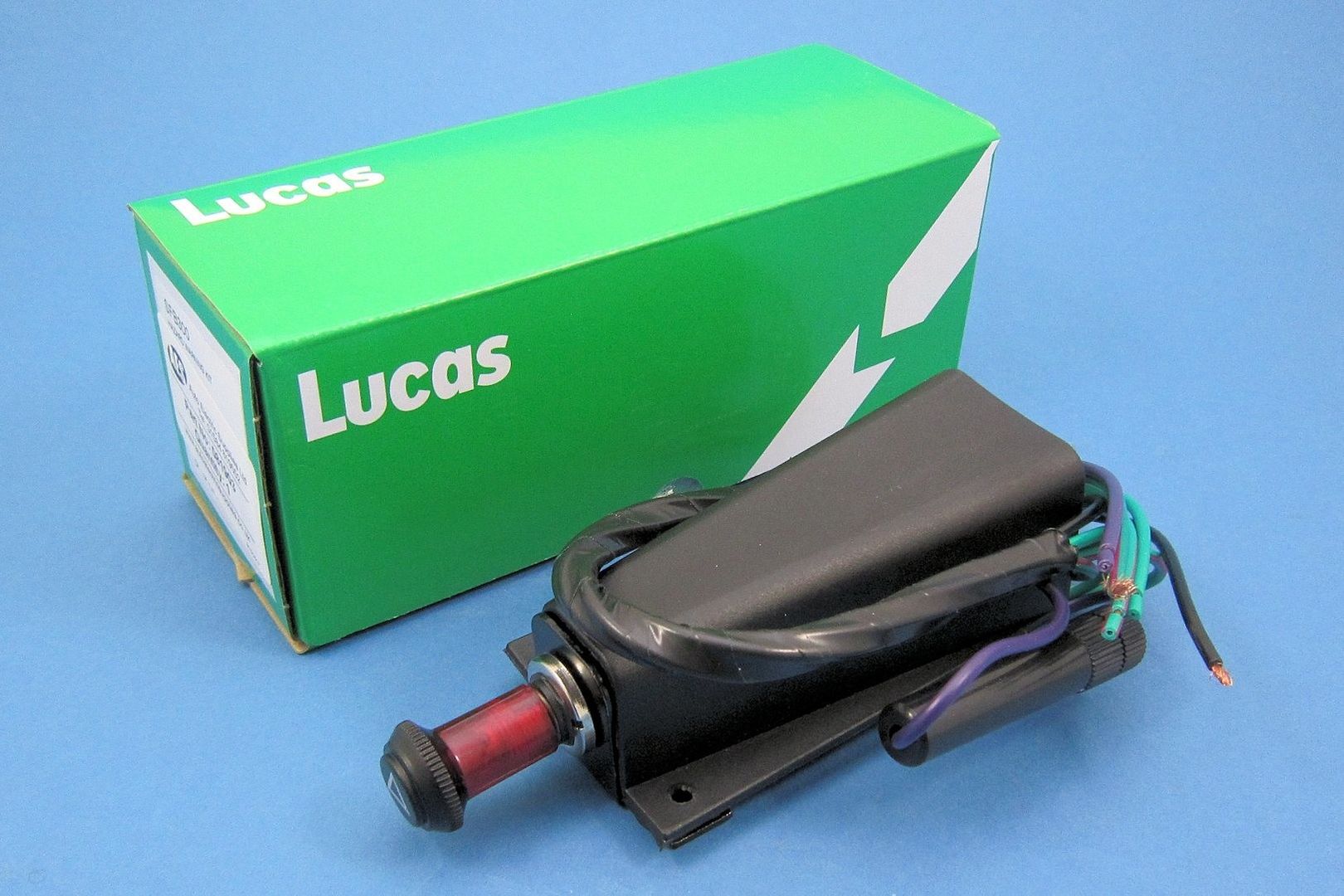

Non Lucas version also available. (The only difference is the box that it comes in and that it doesn't have Lucas stencilled on it!)
