Modular Rocker Switches Frames and Connector

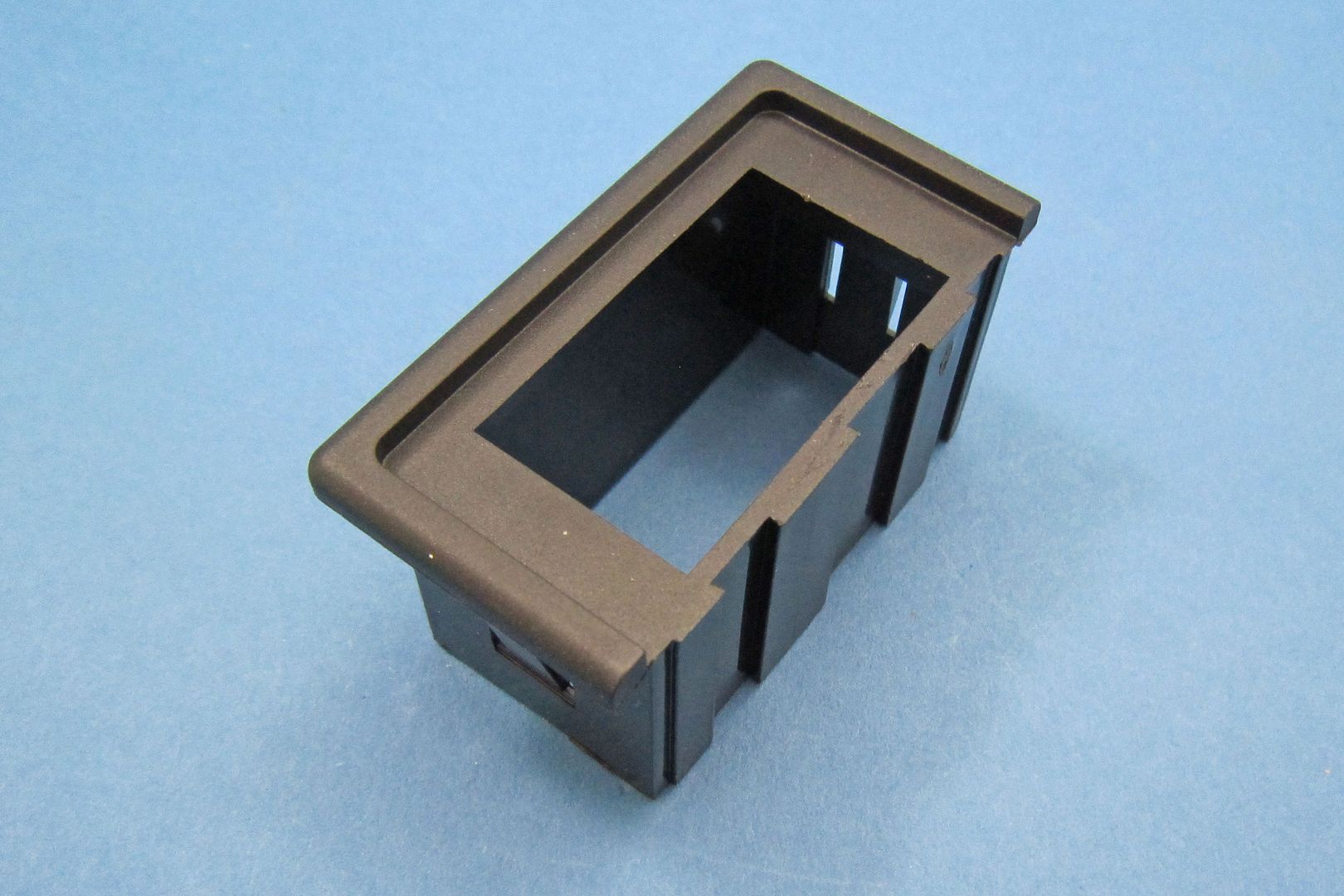

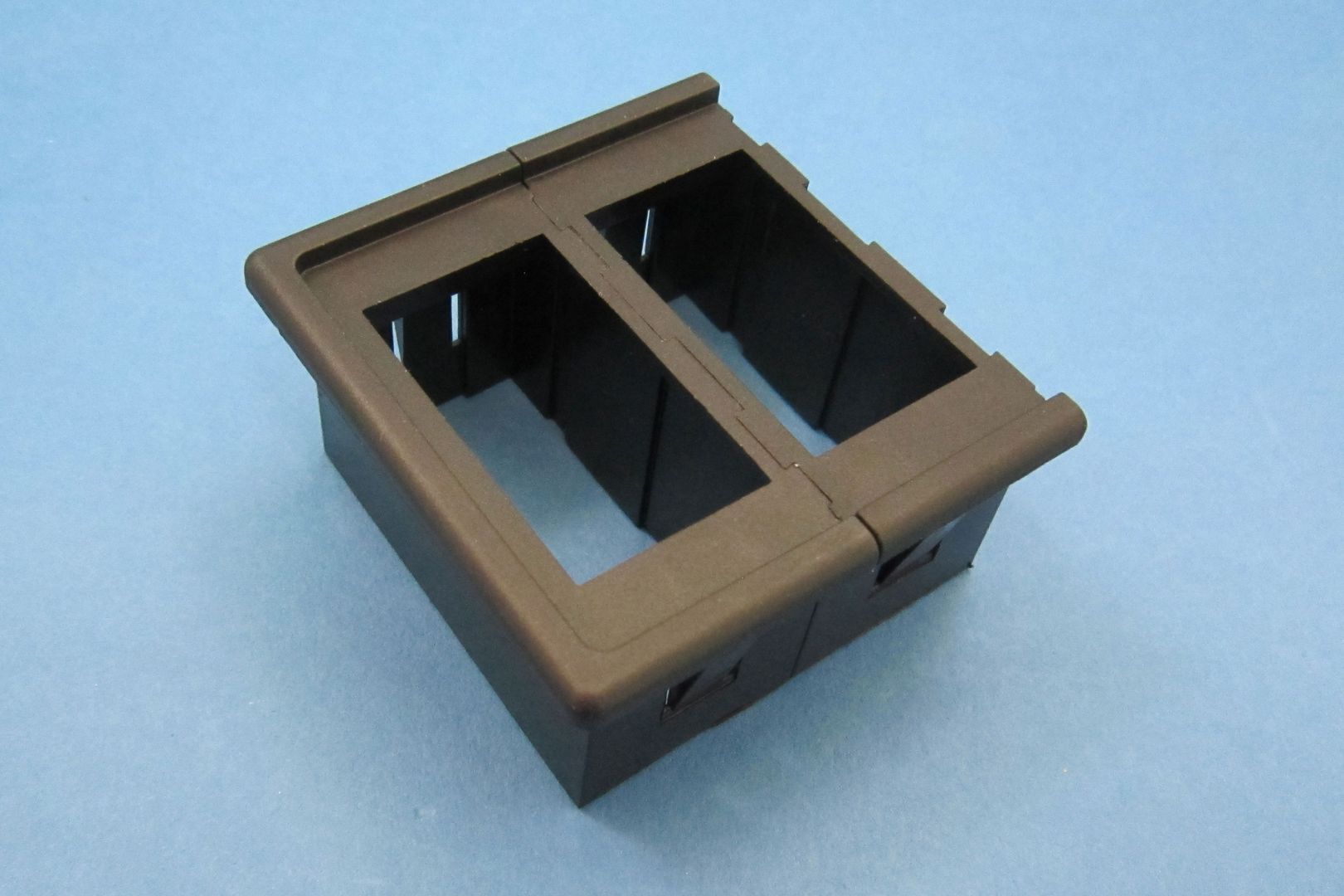

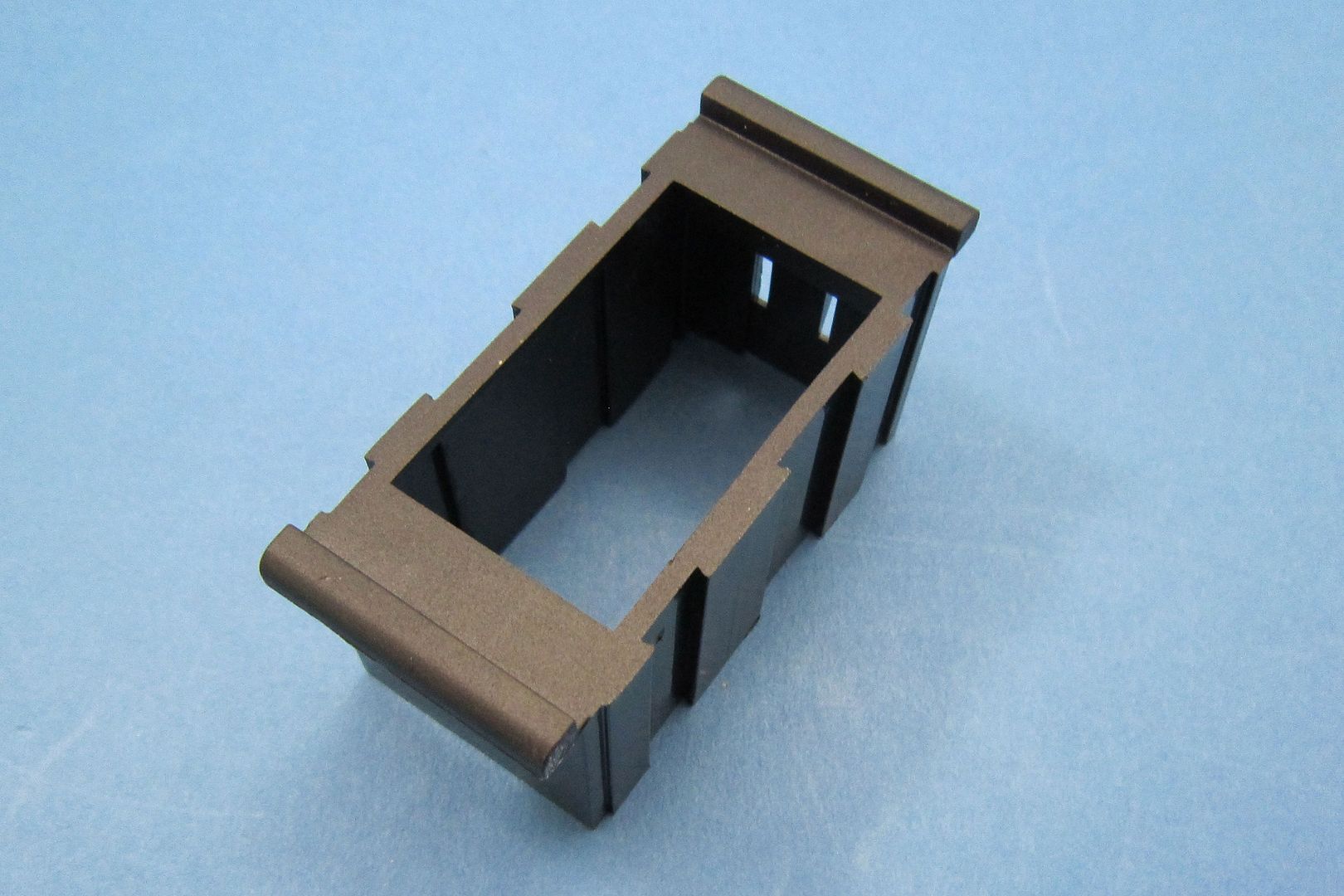

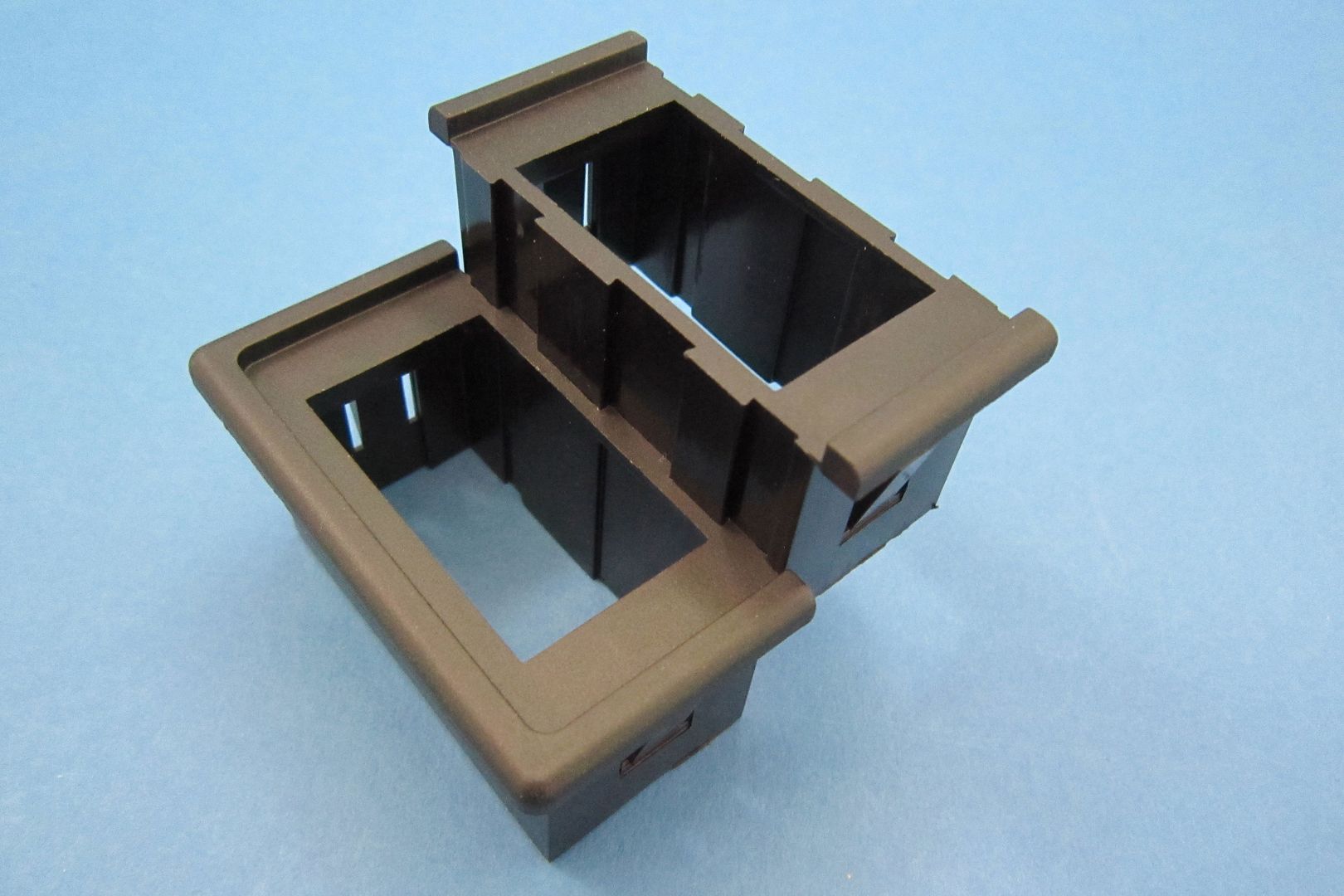

Two types of mounting frames are available:- end frames and middle frames. All clip together. To make the panel shown would take one end frame and one middle frame. The required cut out per frame is 27 x 52mm. To aid connection to each switch a special moulded socket (081264) is available, supplied with all terminals.

These frames are suitable for the modular rocker switches.
