On/Off Specific Panel Modular Rocker Switches

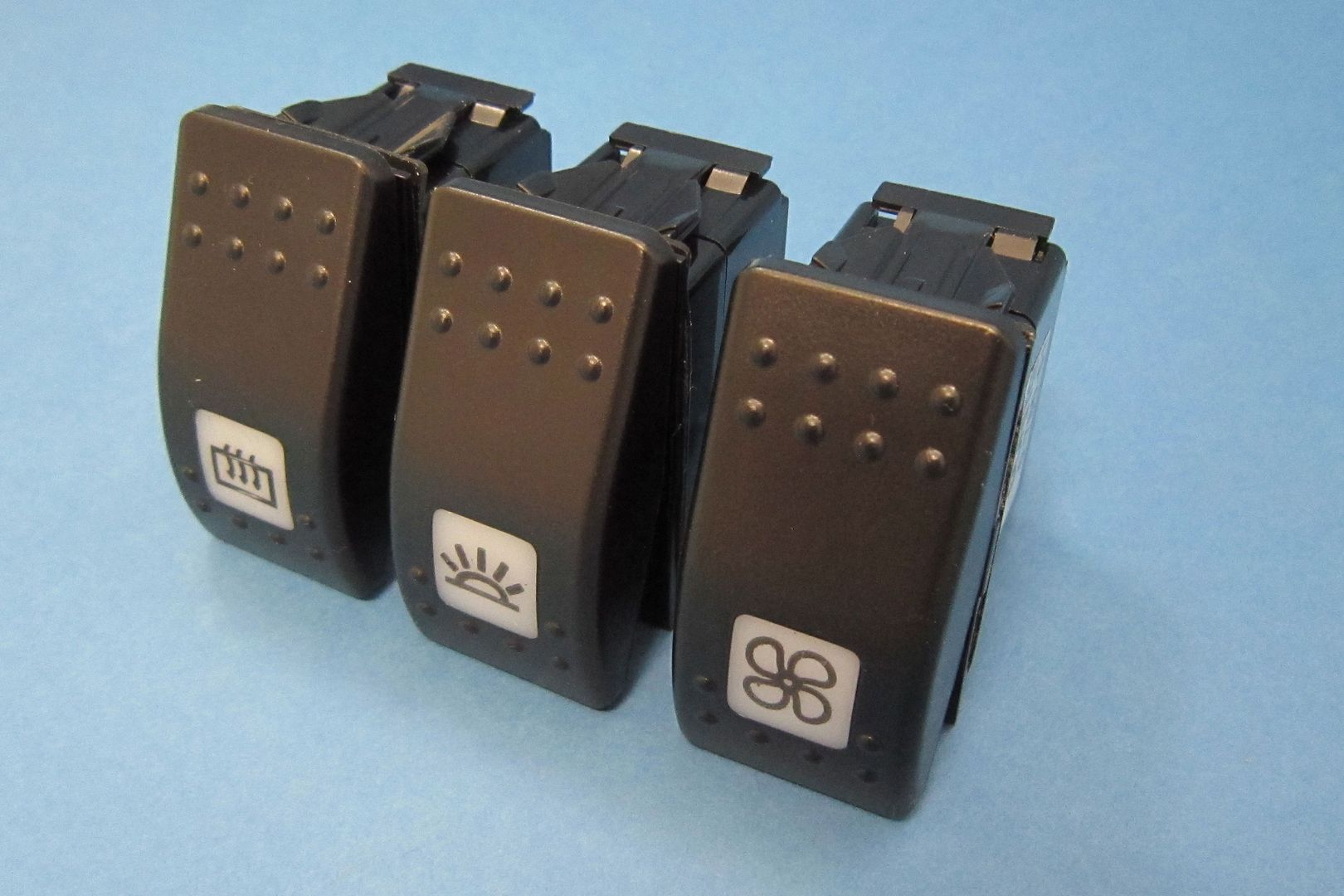

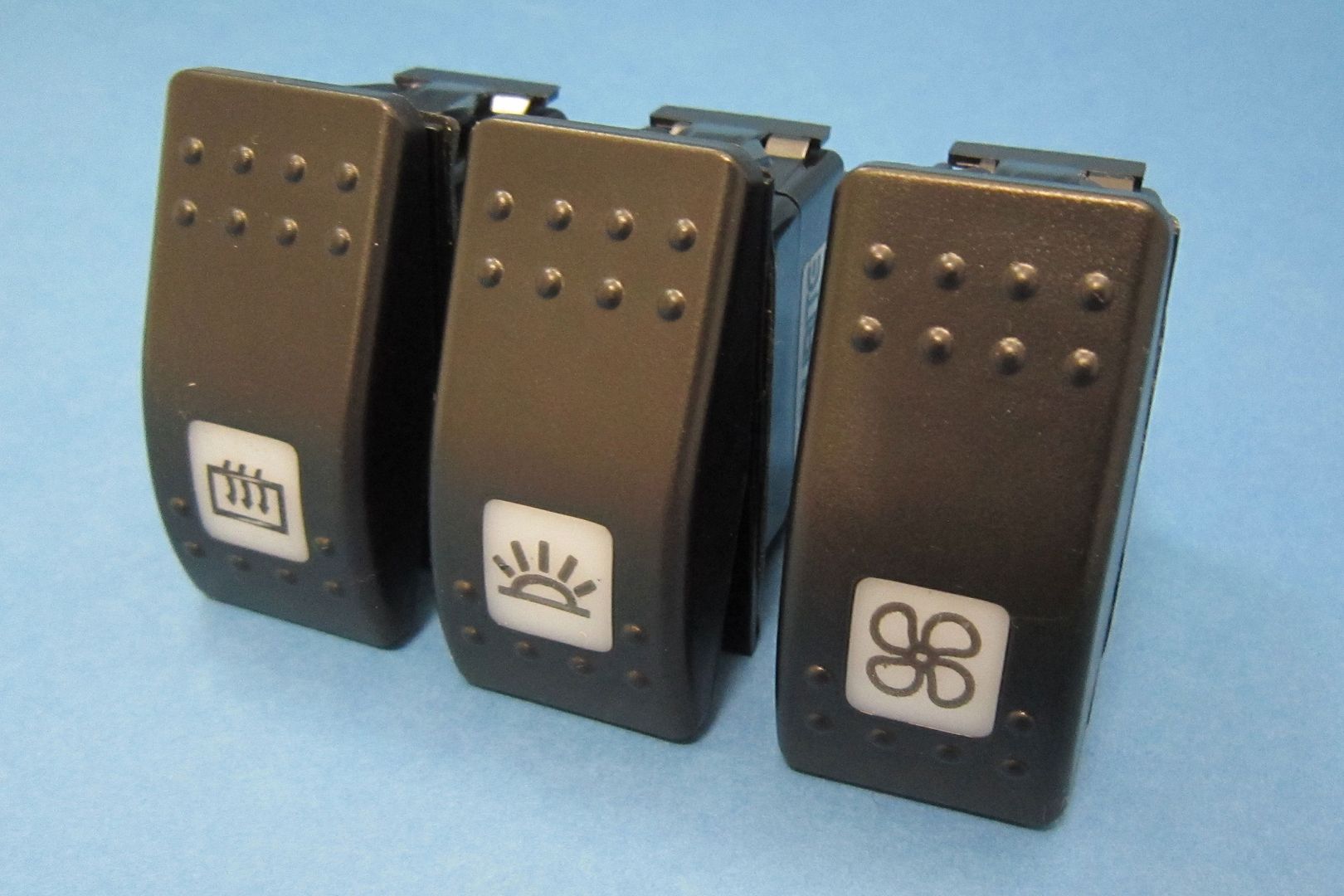

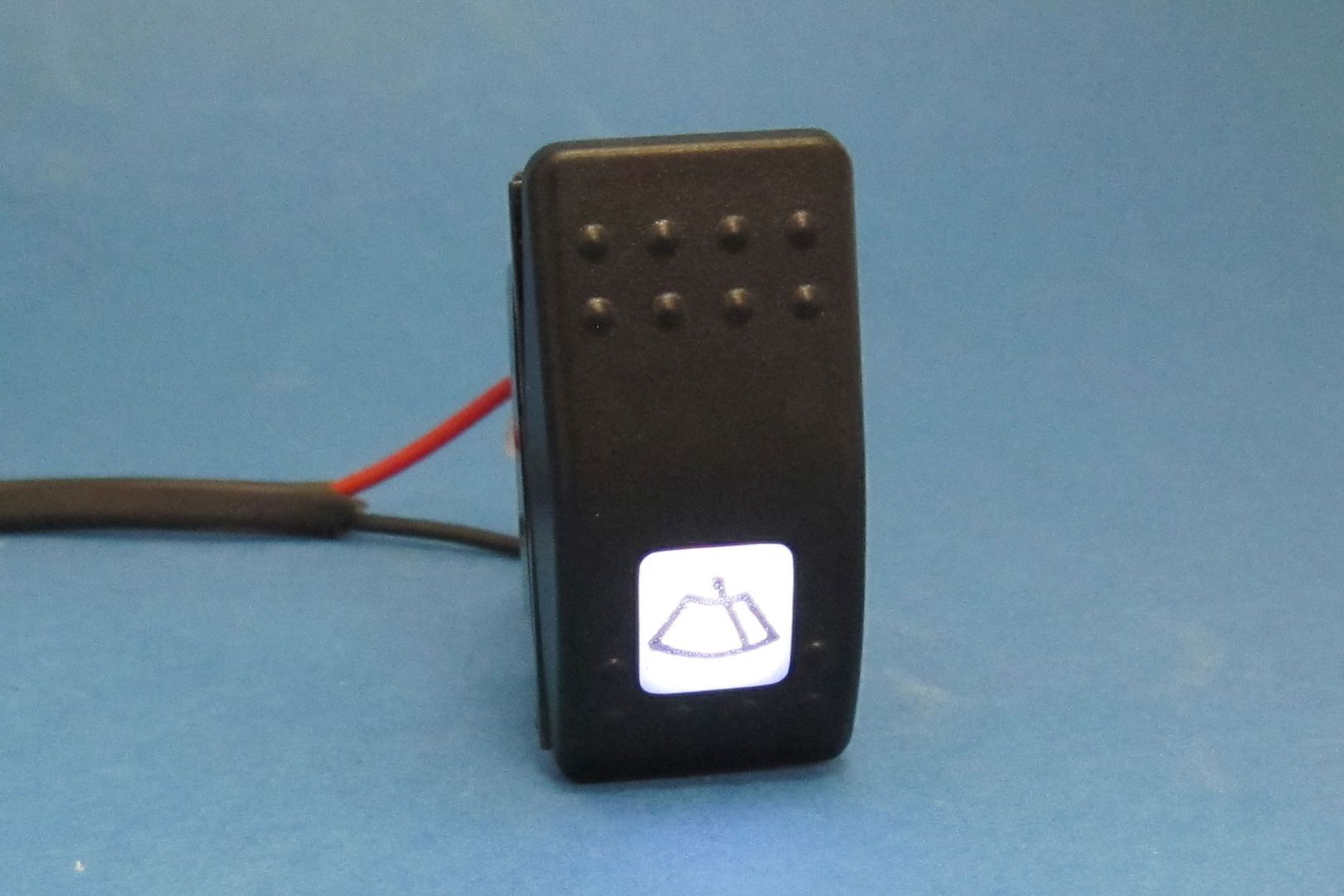

On/Off specific panel modular single pole rocker switches with LED illumination that form part of the range of such modular switches.The switches can be mounted individually or clipped together using special mounting frames to form a switch panel. The rockers can be made to illuminate either when switch is ‘switched’ or, for example, when vehicle lights are turned on. The rear of the switches have 6.3mm blade terminals, so require 6.3mm female blades for connection. Alternatively a special connection socket 081264 is available. Supplied with wiring diagrams.

• 12 or 24V operation
• Require 22 x 40mm mm panel hole or will fit into the gang mounting frames.
• 20A @ 12V, 10A@24V
• IP66 rated
