Rolls Royce Phantom 1 & 2 & 3

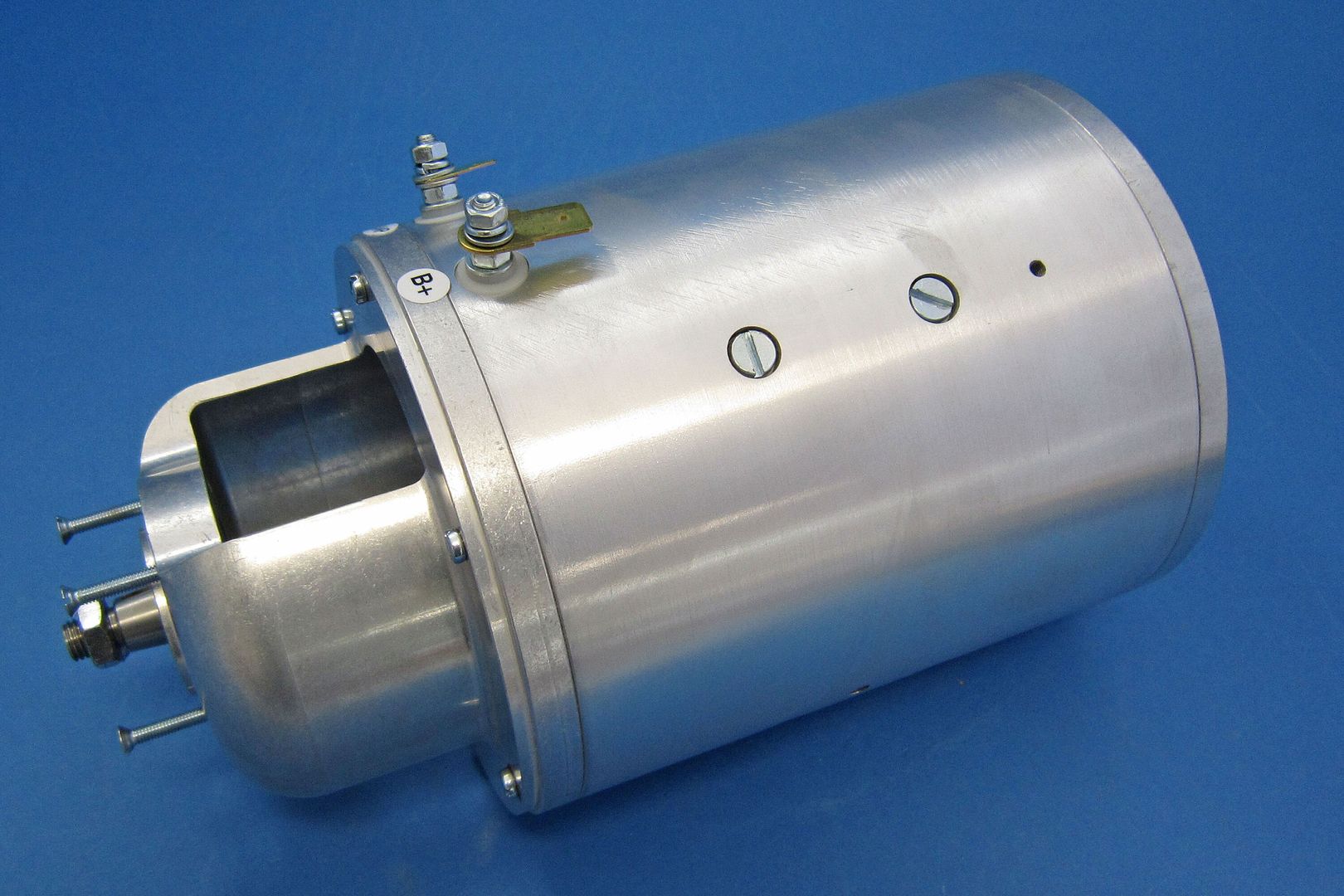

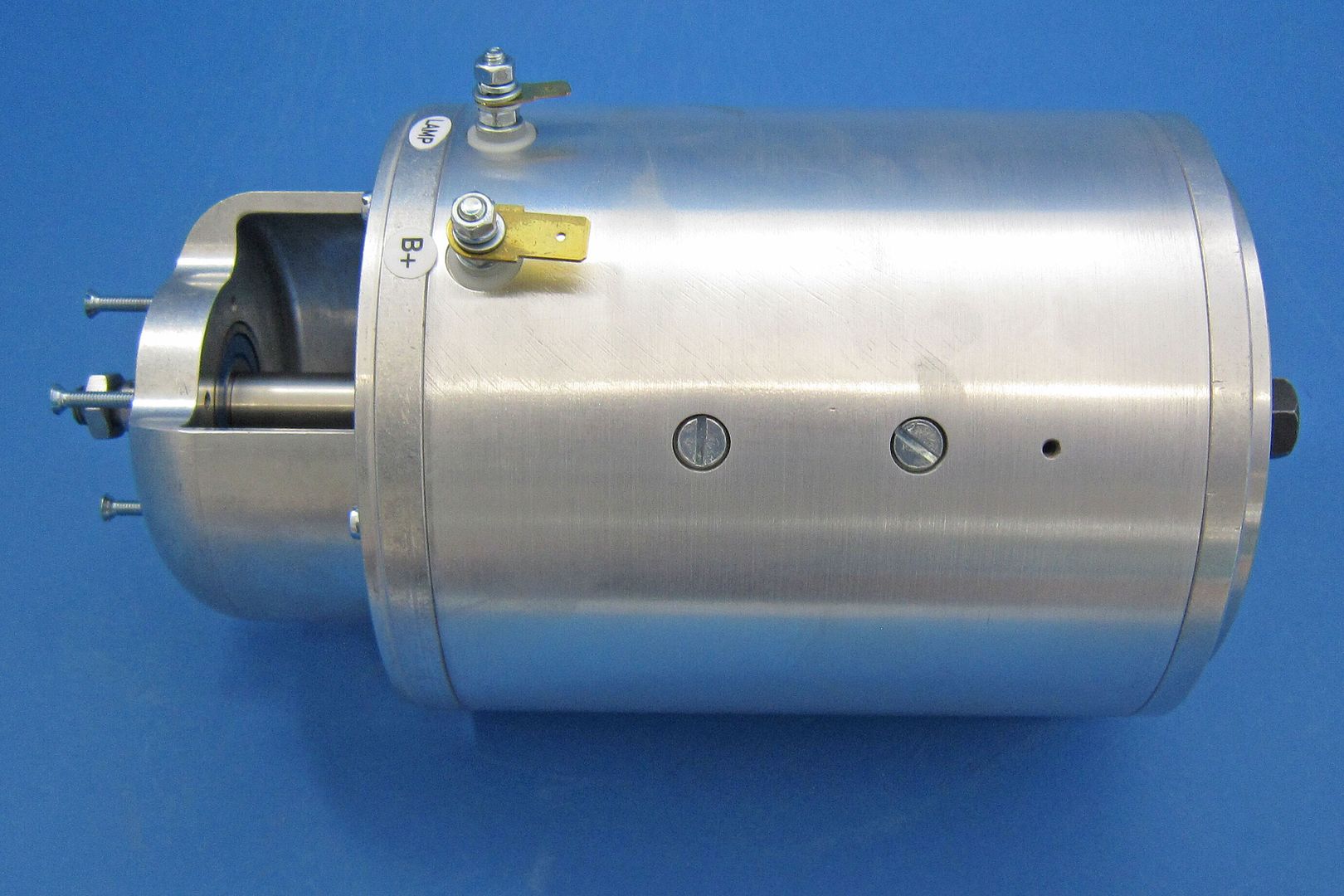

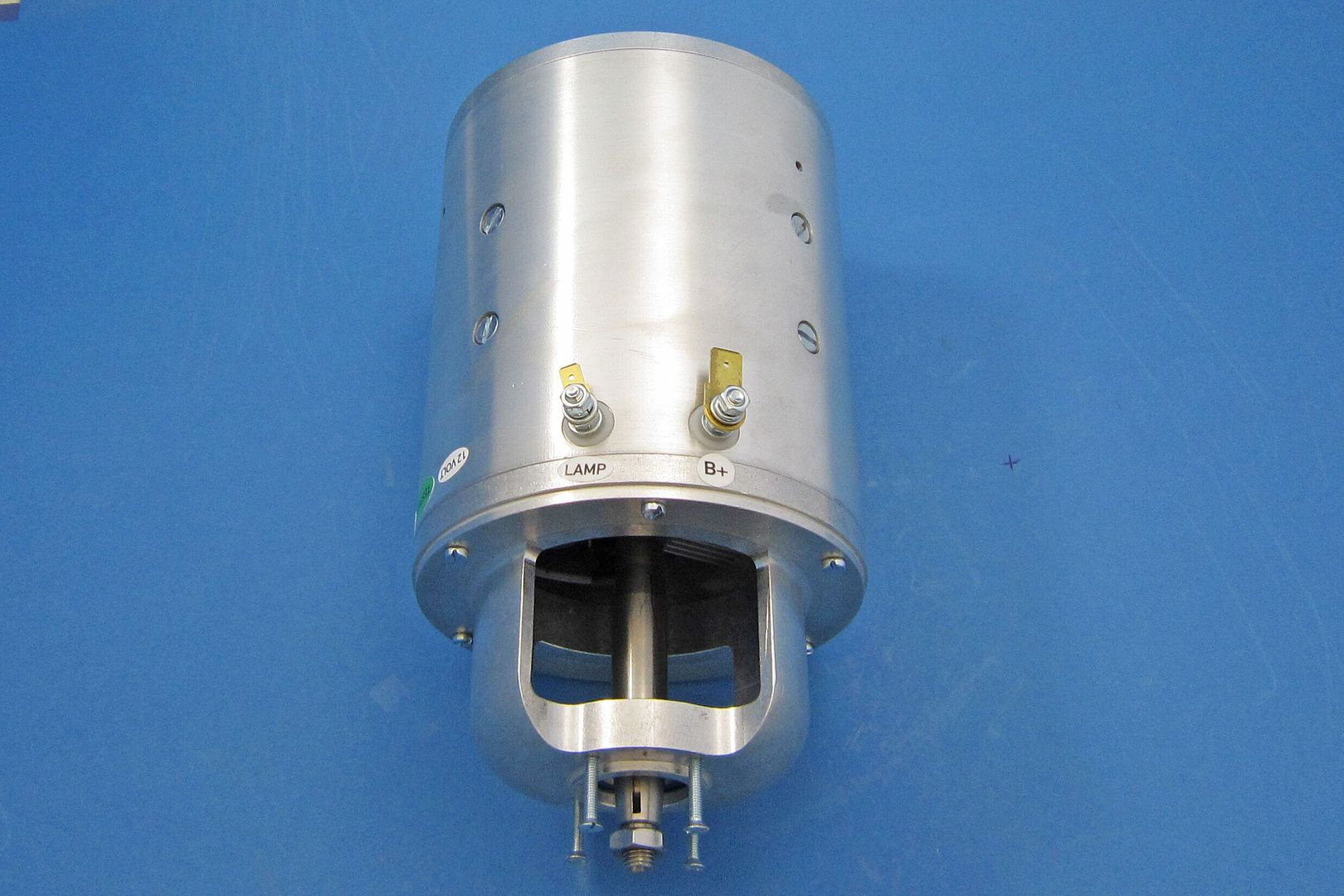

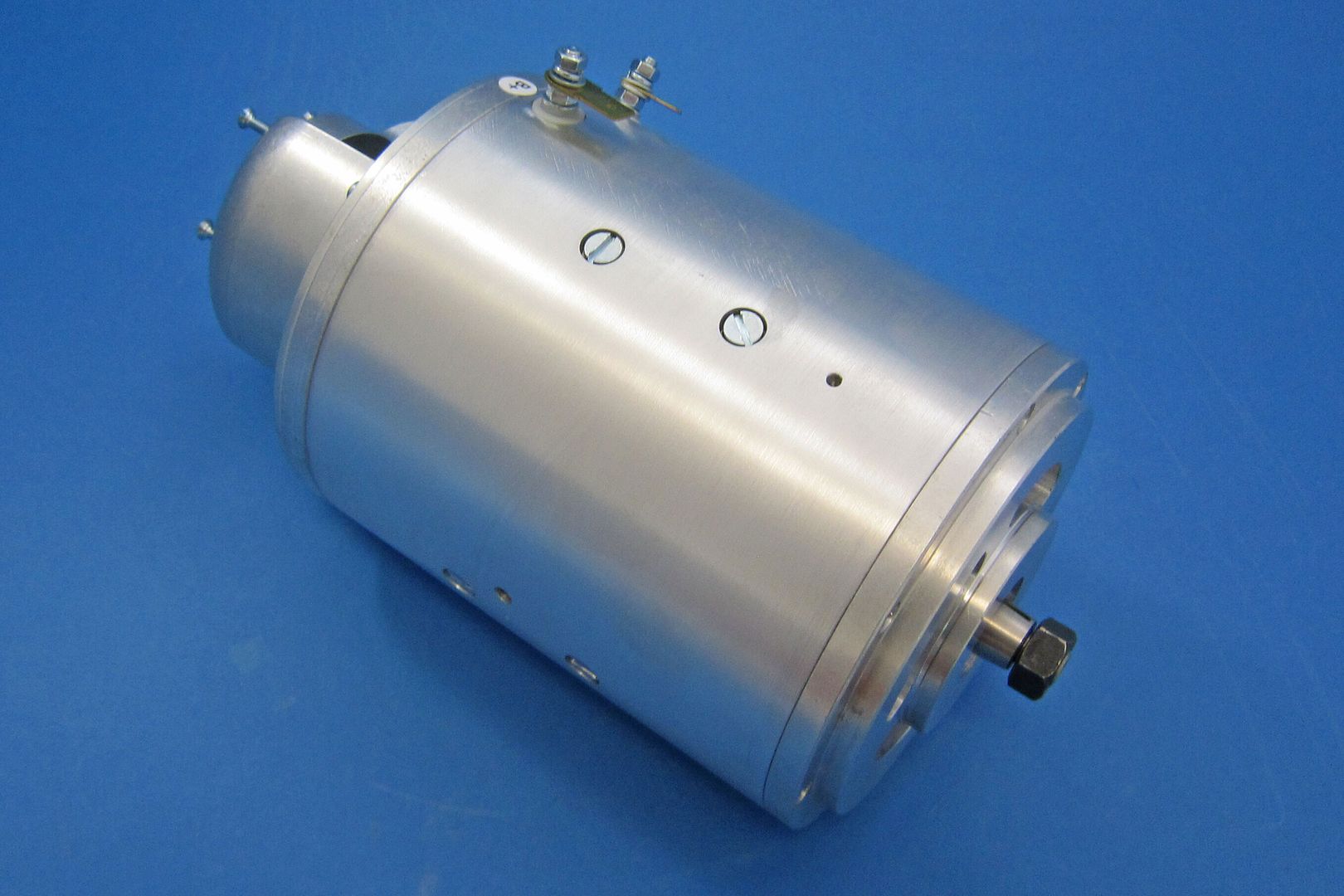

12V Dynator to fit the Rolls Royce Phantoms 1 and 2 and 3.

For Phantoms 1 and 2 the unit to order is LMDCBEN006

For Phantoms 3, the unit to order is LMDCBEN005. (This unit is slightly longer than the LMDCBEN006).

50A compared to approx 20A and much lighter than the original dynamo. For negative earth applications.

Electrical connection to the vehicle is easy and straight forward. Fitting instructions are given in the downloads section below.

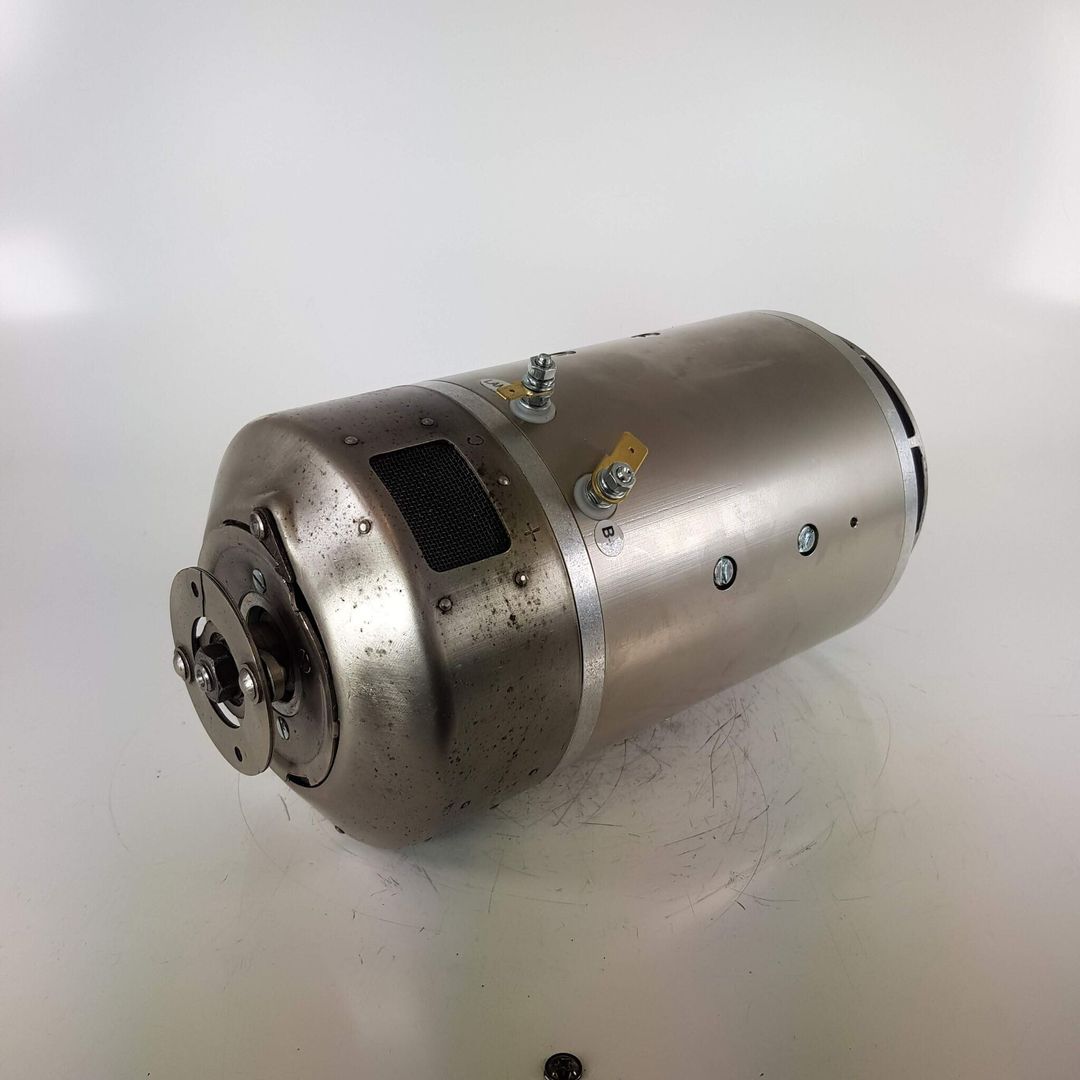

This unit uses the end cover and drive couplings from the original dynamo, as per the last picture.

Aprroximately 140mm diameter by 240mm long.
