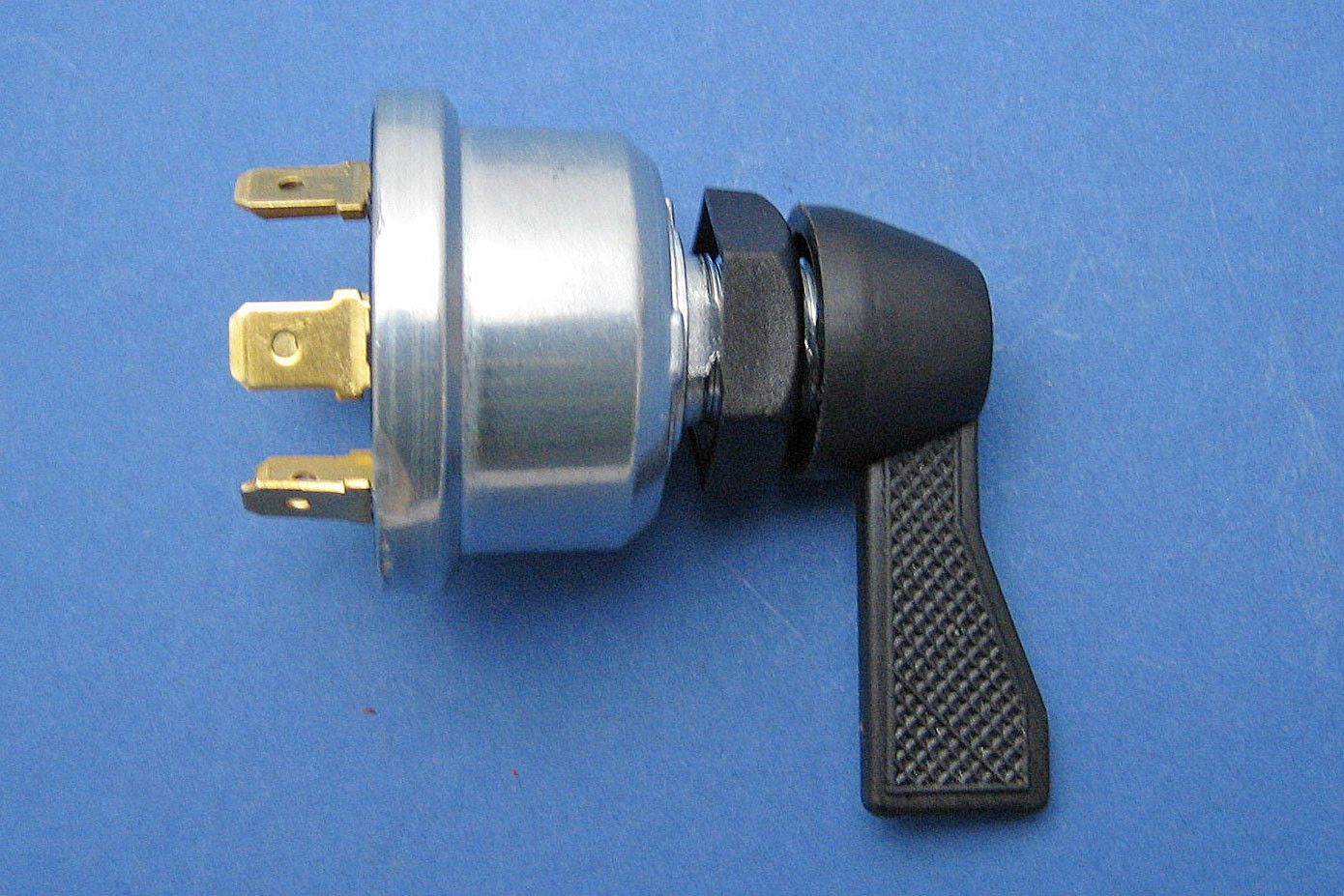

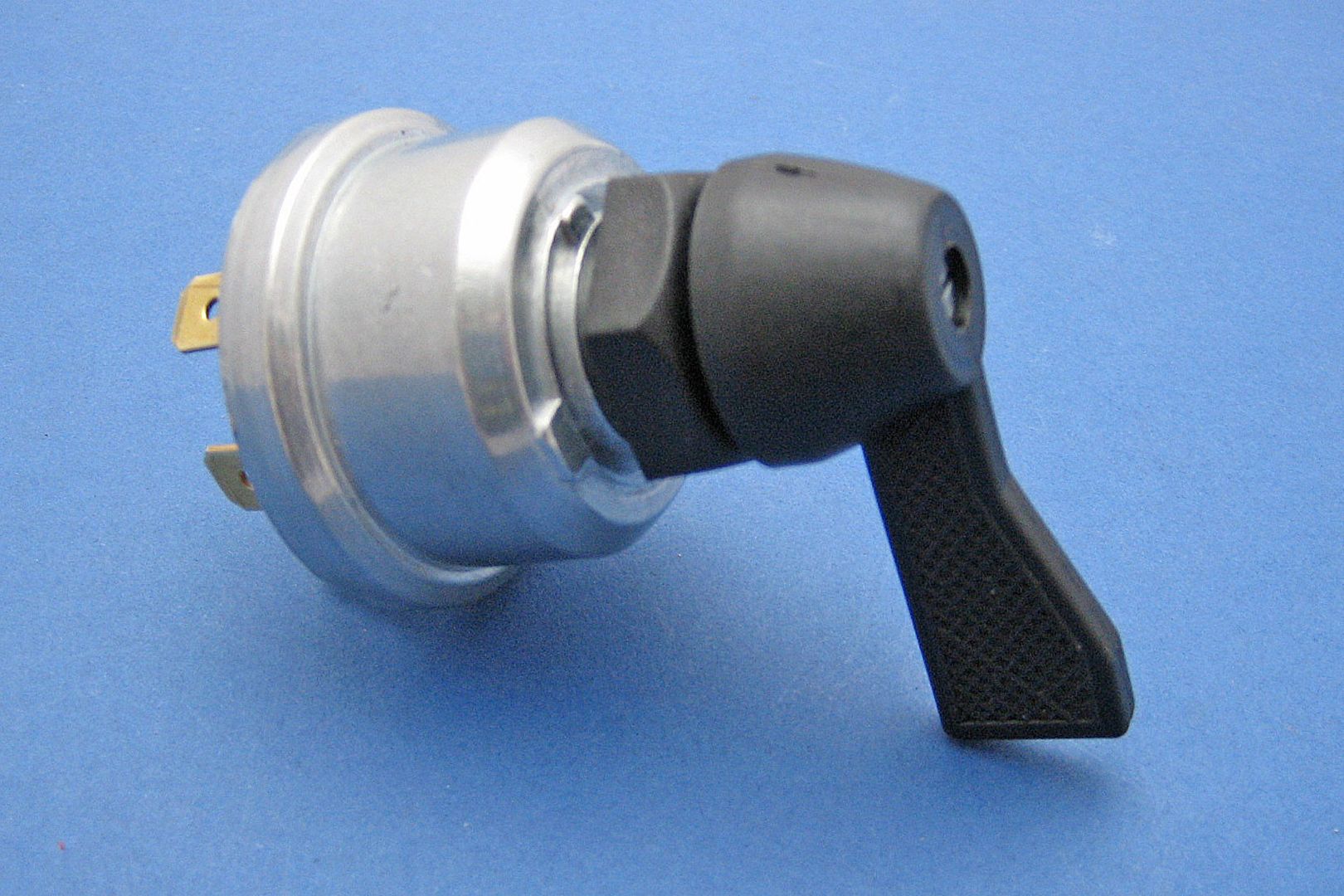

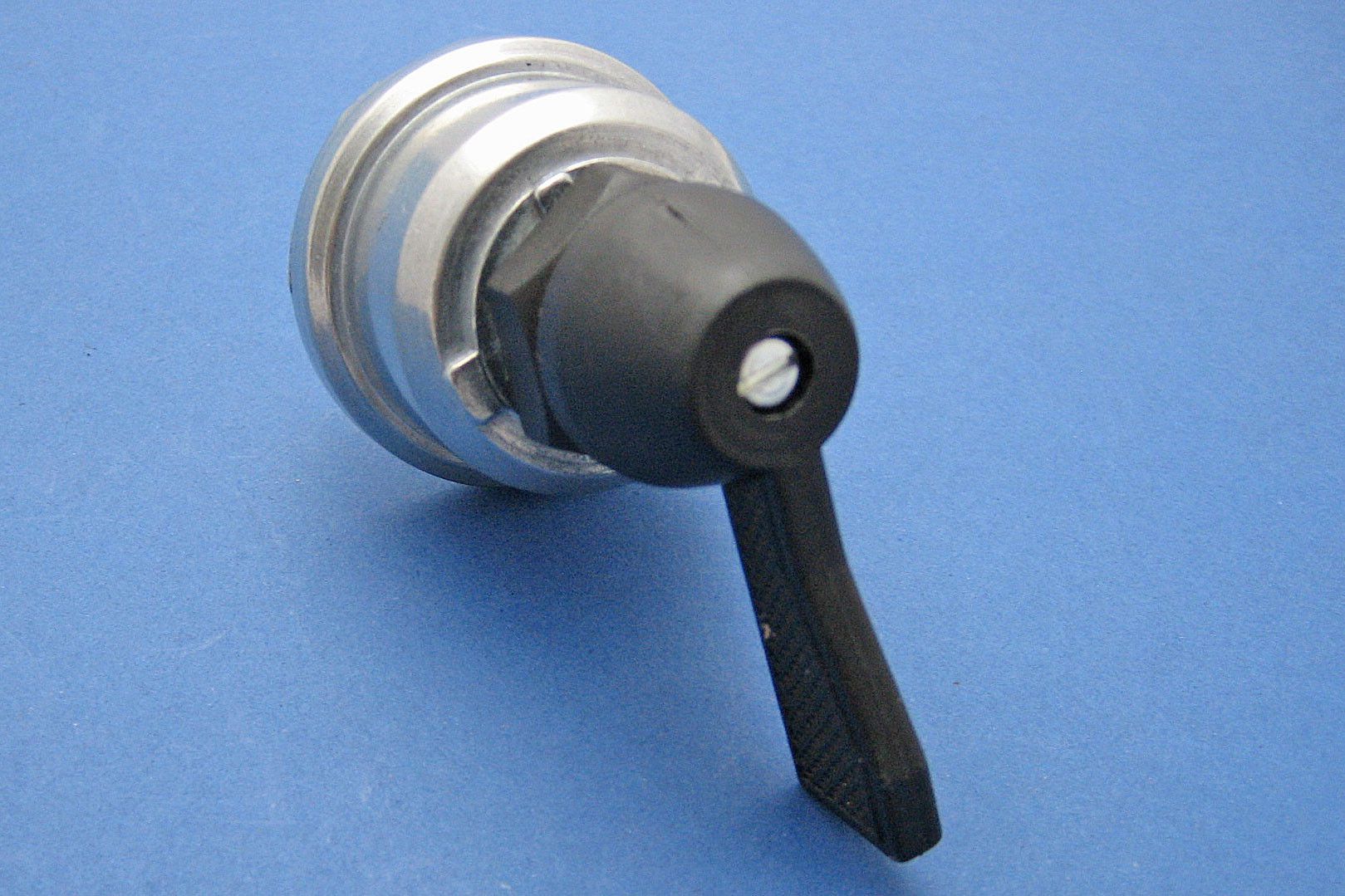

Rotary Switch - Old Style

Old style rotary switch suitable for use as an indicator switch. Has 2 independent on/off/on switches, each with three terminals, so can also be used to control warning lights/buzzers or trafficators at the same time as indicating. Requires 14mm panel hole.  Maximum body diameter 41mm.  Body depth excluding terminals 24mm. Connection via 6 x 6.3mm blade terminals.

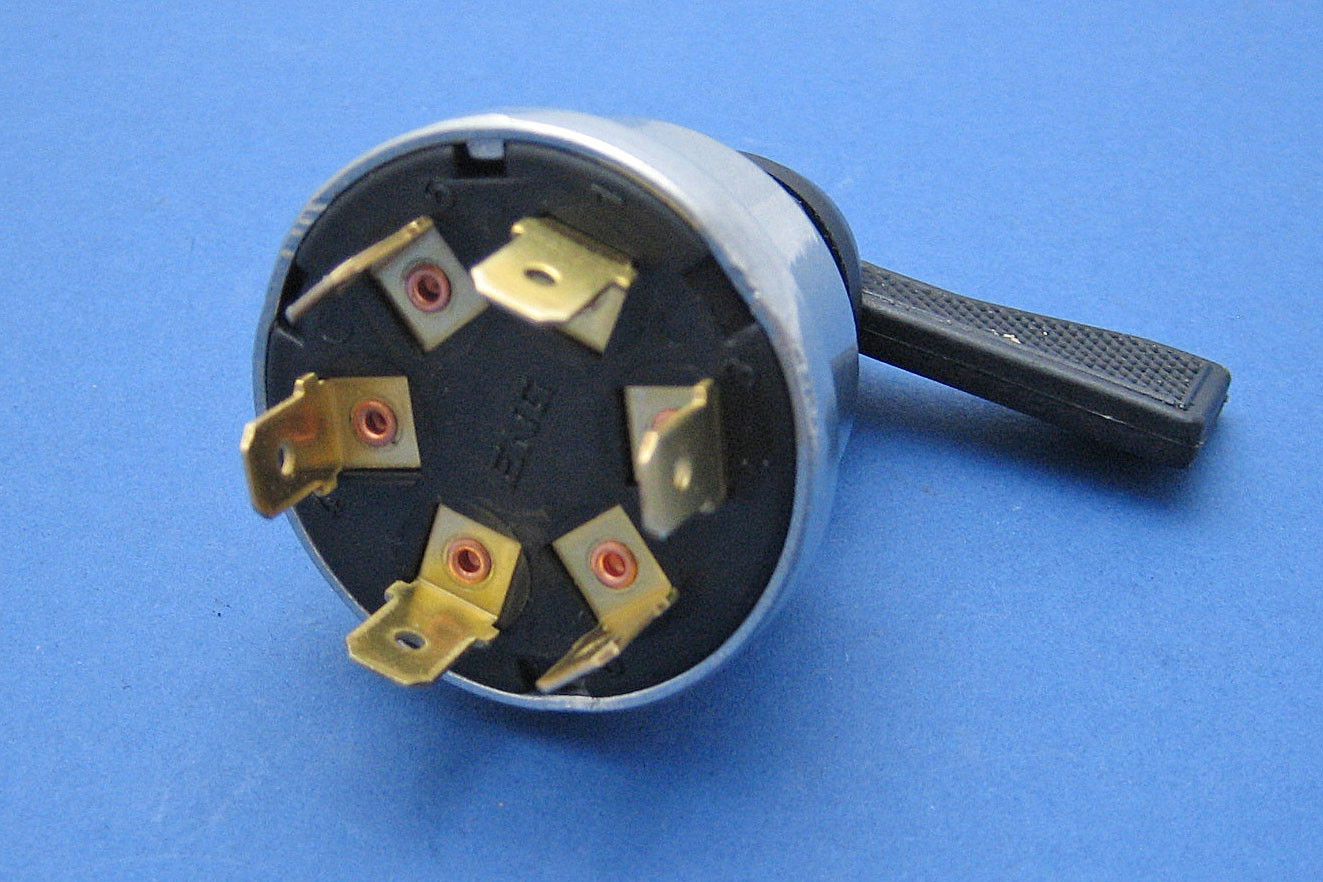

Power in terminal 1 connects to 3 or 5 (when turned)

Power in terminal 2 connects to 4 or 6 (when turned)

Will work on 6,12 & 24V systems.
