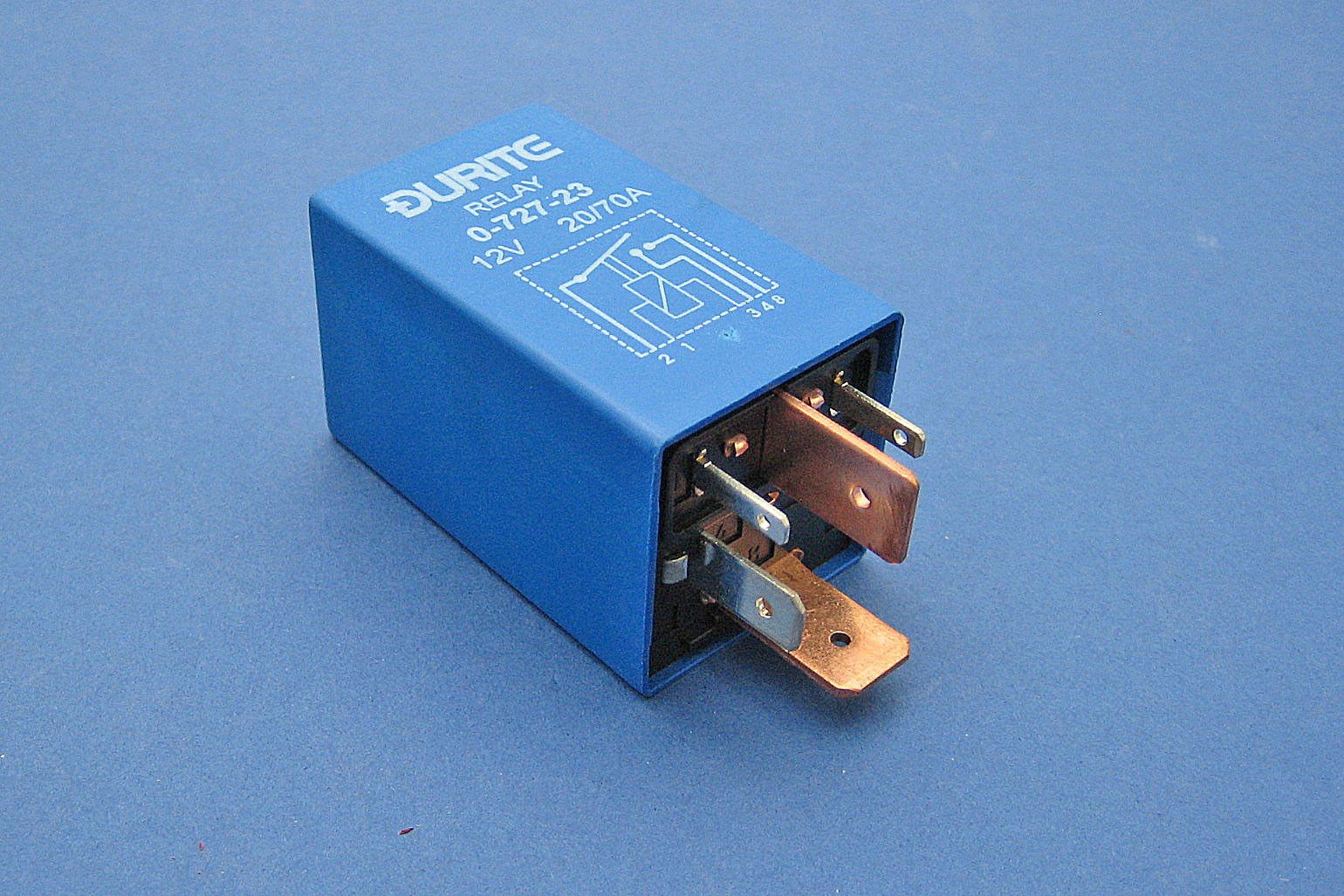

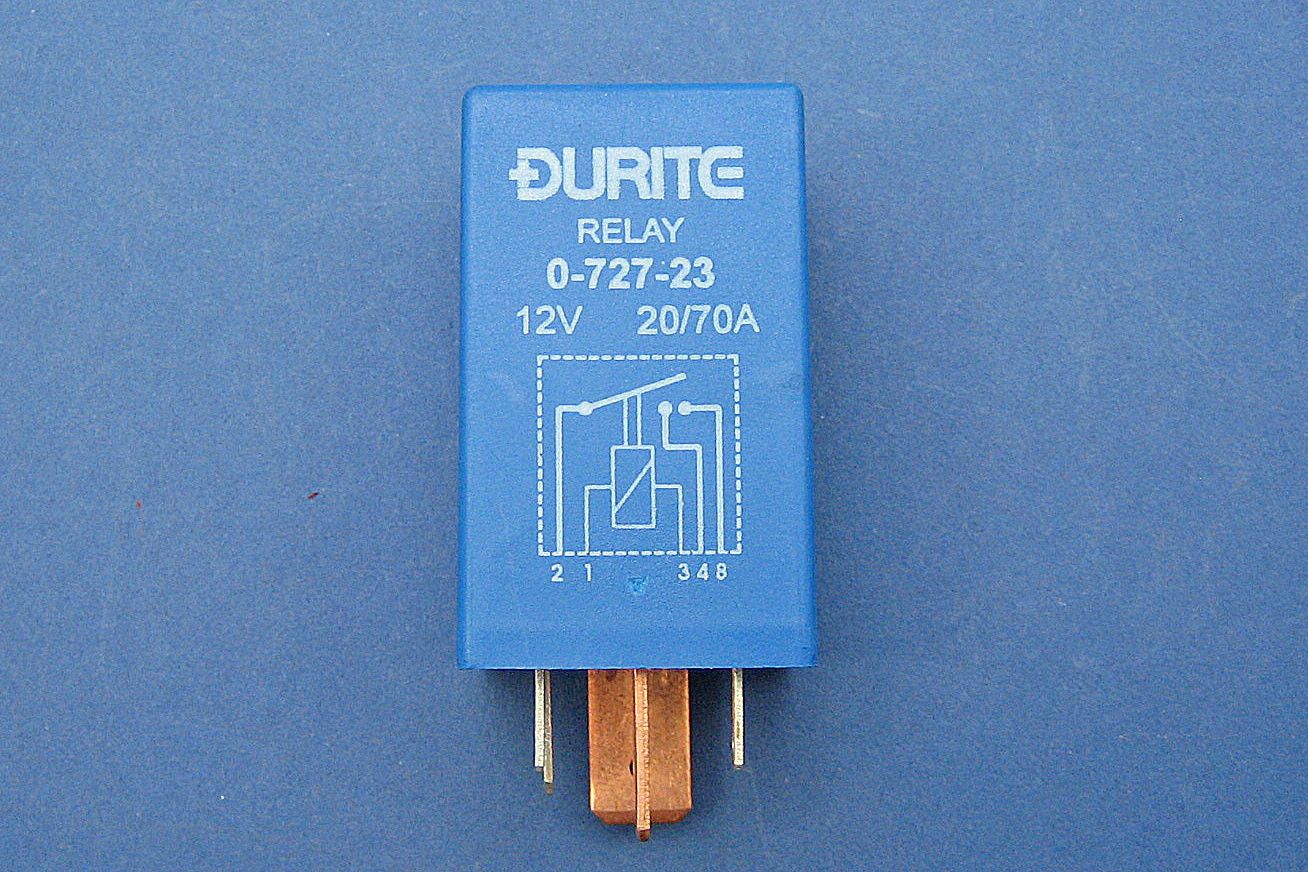

Split Charge Relay 20/70A

Durite version of Lucas SRB630 split charge relay. This relay enables the connection of a second battery and/or fridge, and can be triggered by the ignition supply or the alternator warning lamp. Connections as per Lucas SRB630.

Terminals:

1. 2 x 9.5mm blade (connections 2 & 8)
2. 1 x 6.3mm blade (connection 4)
3. 2 x 2.8mm blades (connections 1 &  3) - triggering coil
