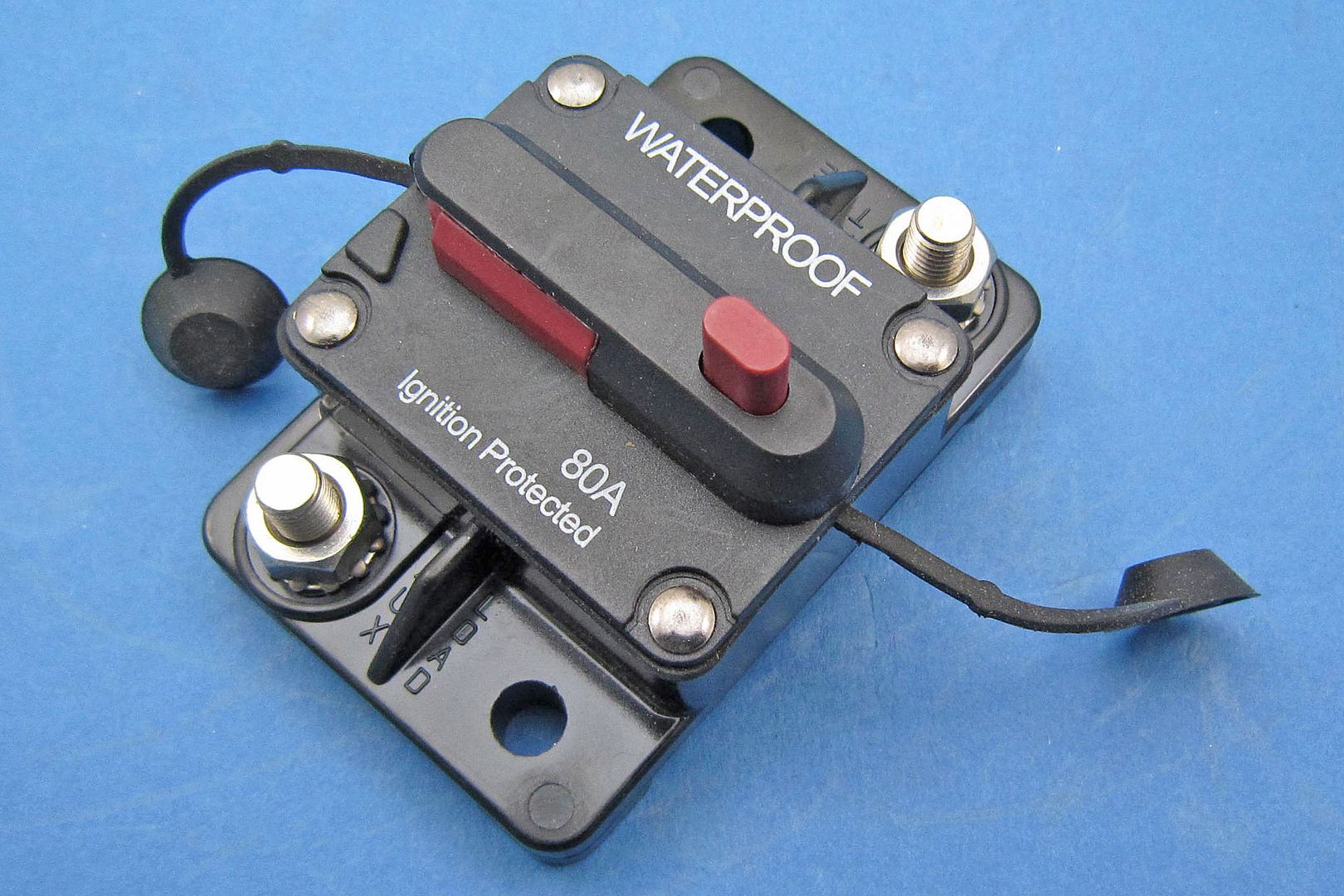

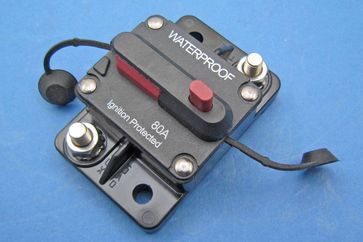

Switchable Surface Mounted

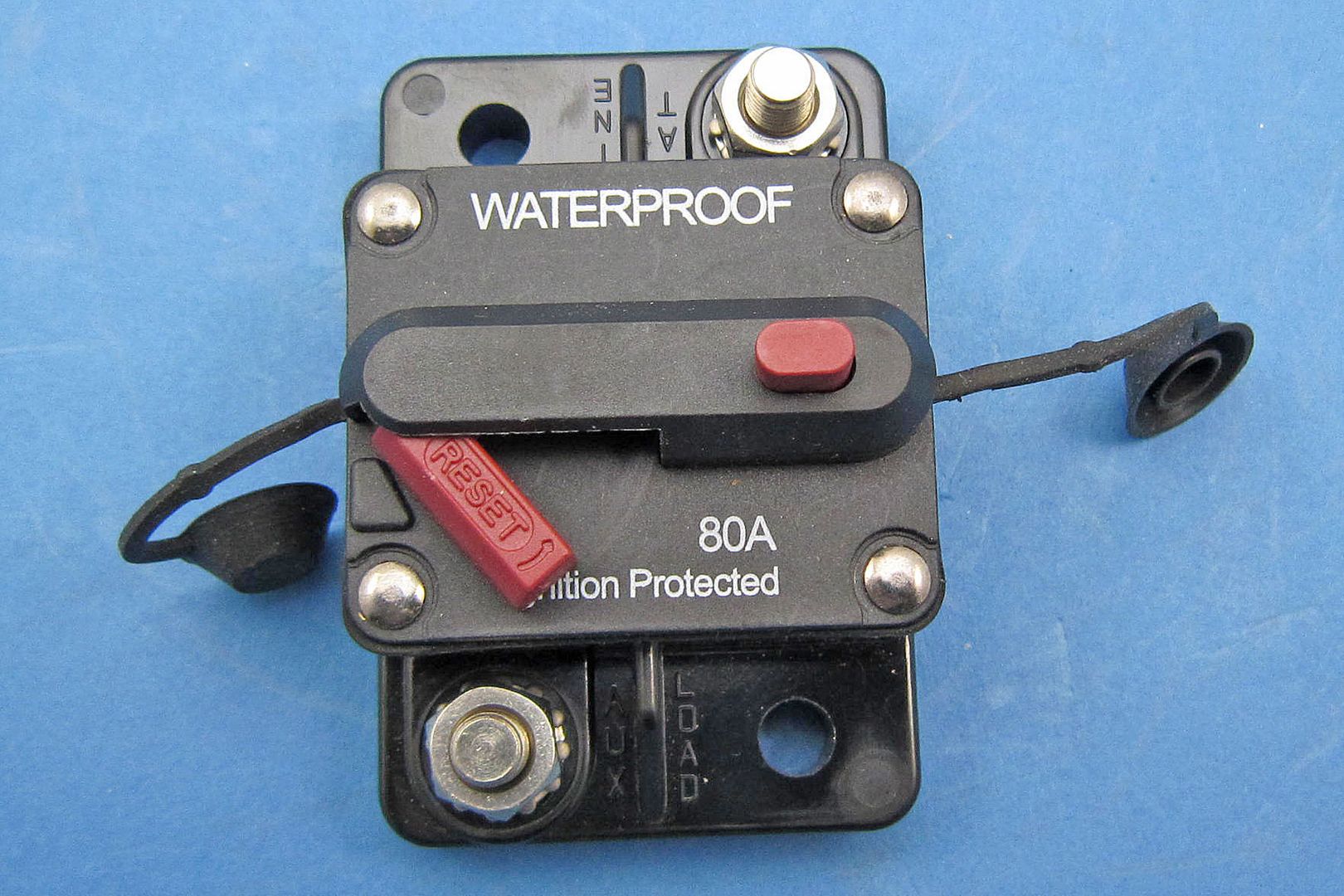

A range of surface mounted circuit breakers, incorporating a push button that can be used to break the circuit and a reset lever to manually remake the circuit. (This reset lever automatically flips downwards to indicate that the unit has tripped). These breakers are very similar to the panel mounted versions.

These breakers are sealed and are therefore suitable for use in engine compartments and bilge areas in boats as well as being suitable to protect auxillary circuits in trucks, buses and marine applications. Max voltage 48V DC. Made in USA.

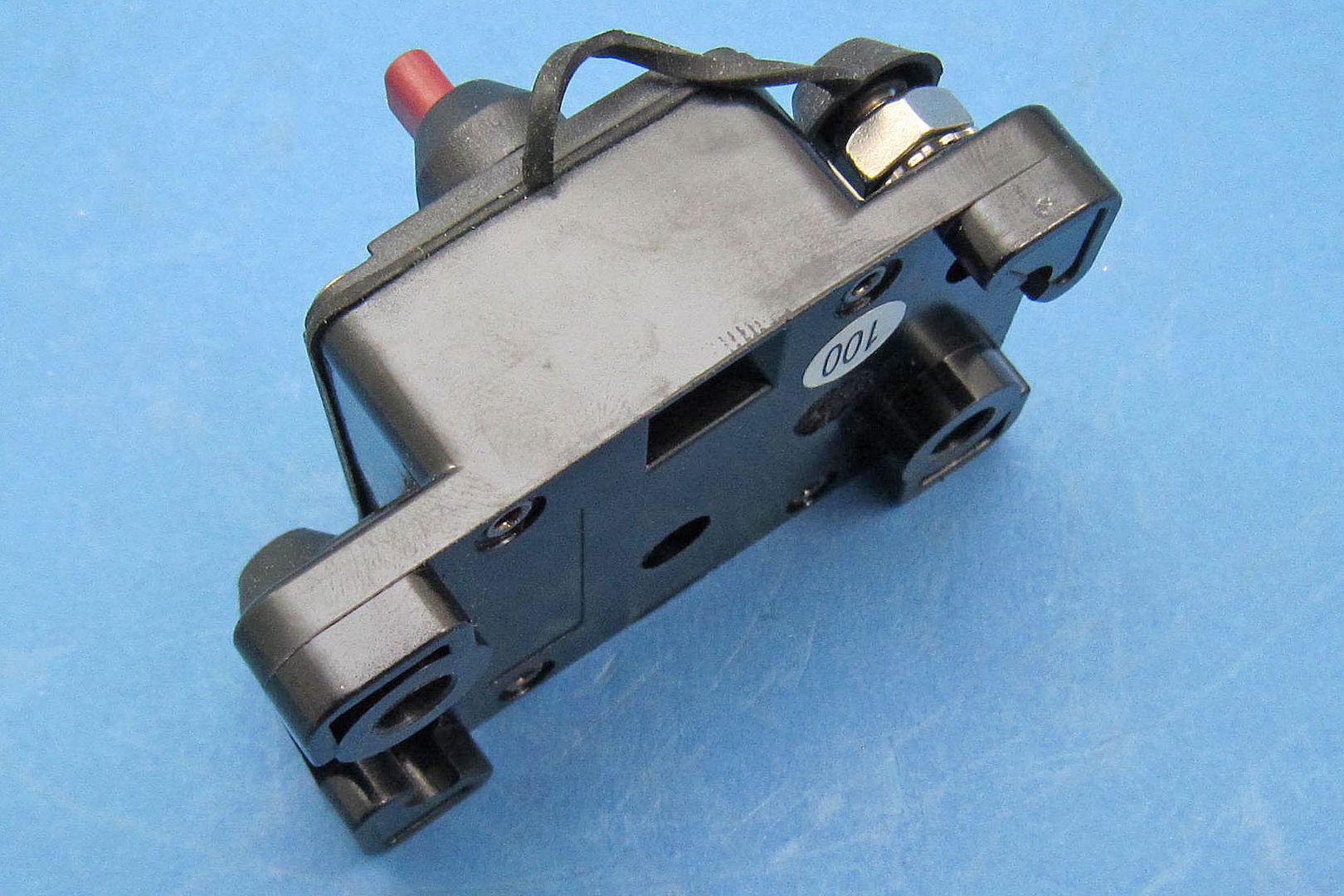

2 x 6.5mm diameter mounting holes. Supplied with insulatory rubber covers.

• Compliances: SAE J1171 (ignition protected), SAE J1625
• Ingress Protection: IP67
• Voltage: 48Vdc
• Interrupt Rating: 3000A @ 30Vdc
• Operating Temp: -32°C to 82°C
• Storage Temp: -34°C to 149°C
• Material: Black UL-rated 94V0 thermoset plastic
• Stainless steel studs (6mm on 50-150A versions, 8mm on 200A version)
• 48.5mm x 74mm x 44mm tall (including the push button) (0-150A versions)
