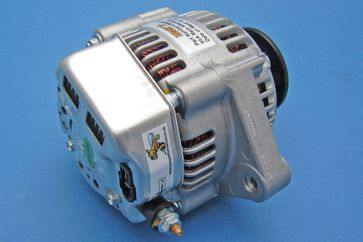

WOSP LMA203 65A Alternator

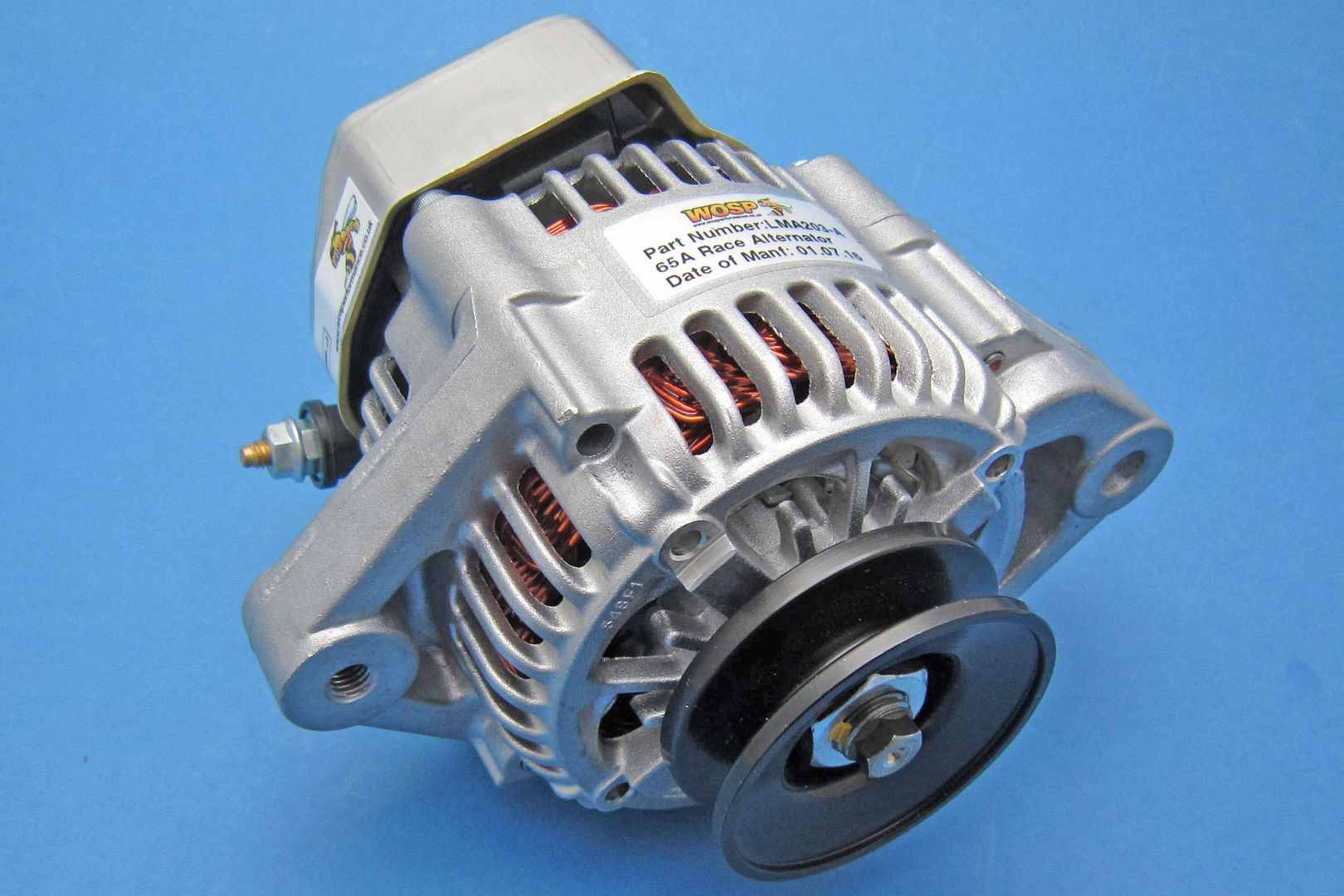

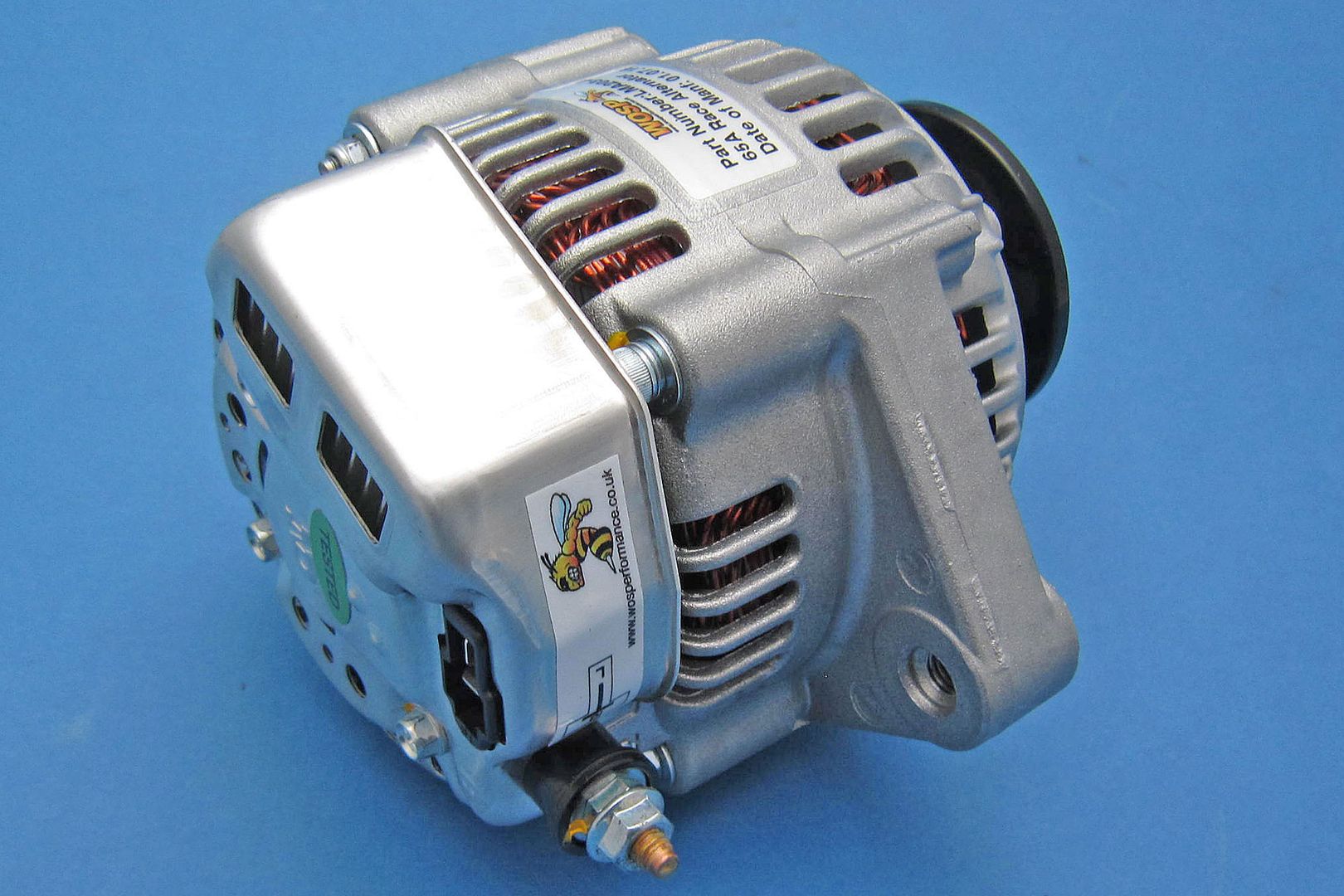

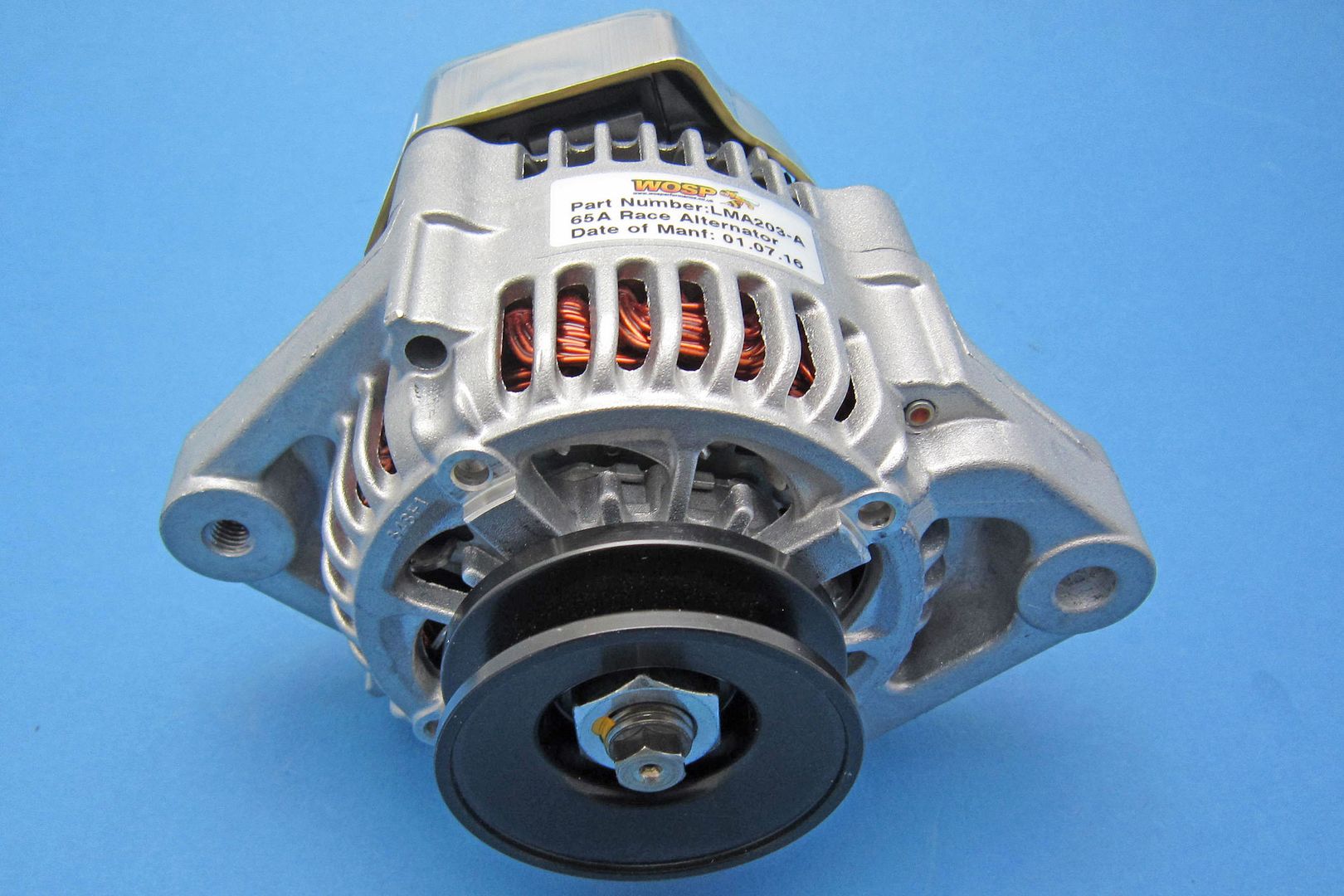

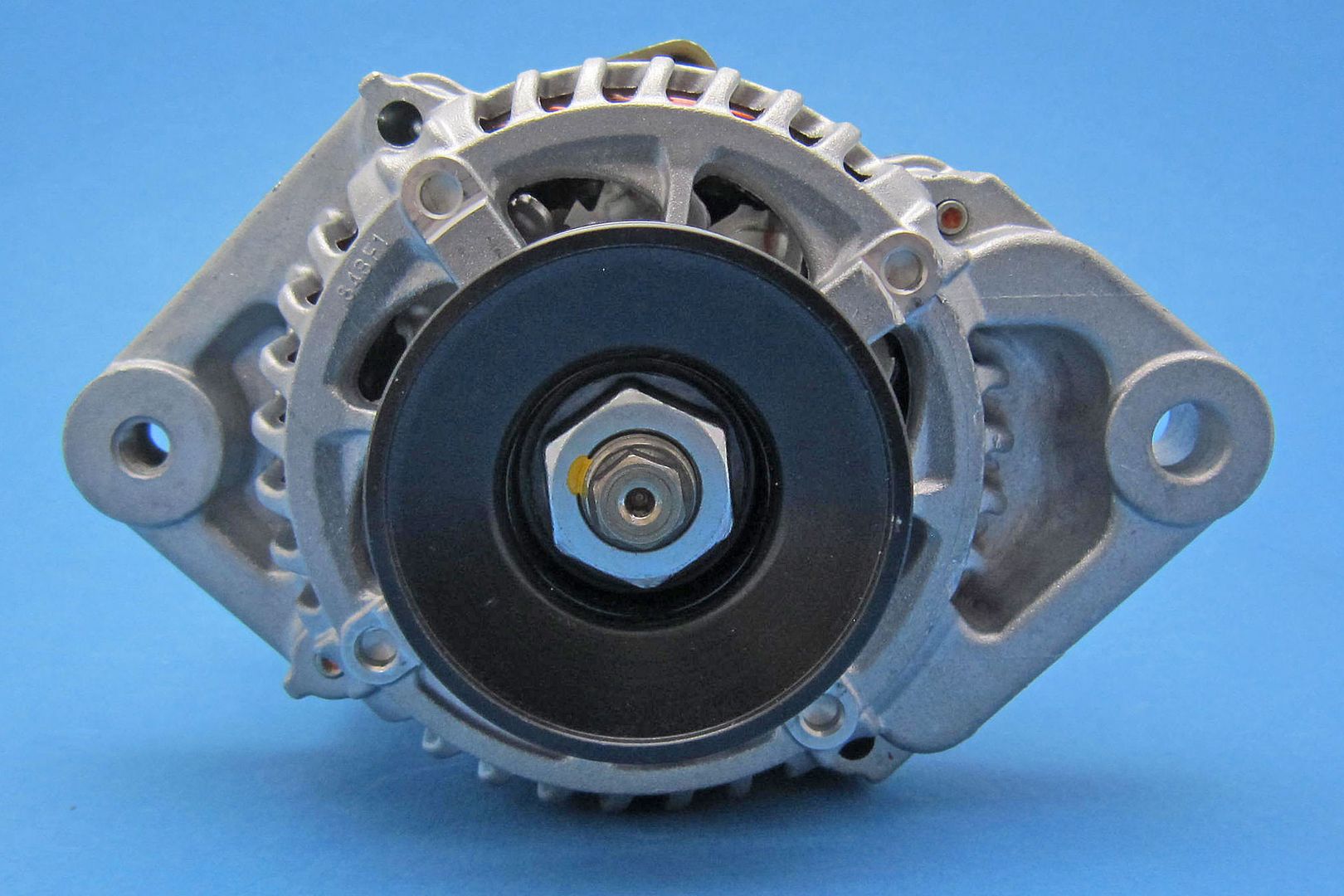

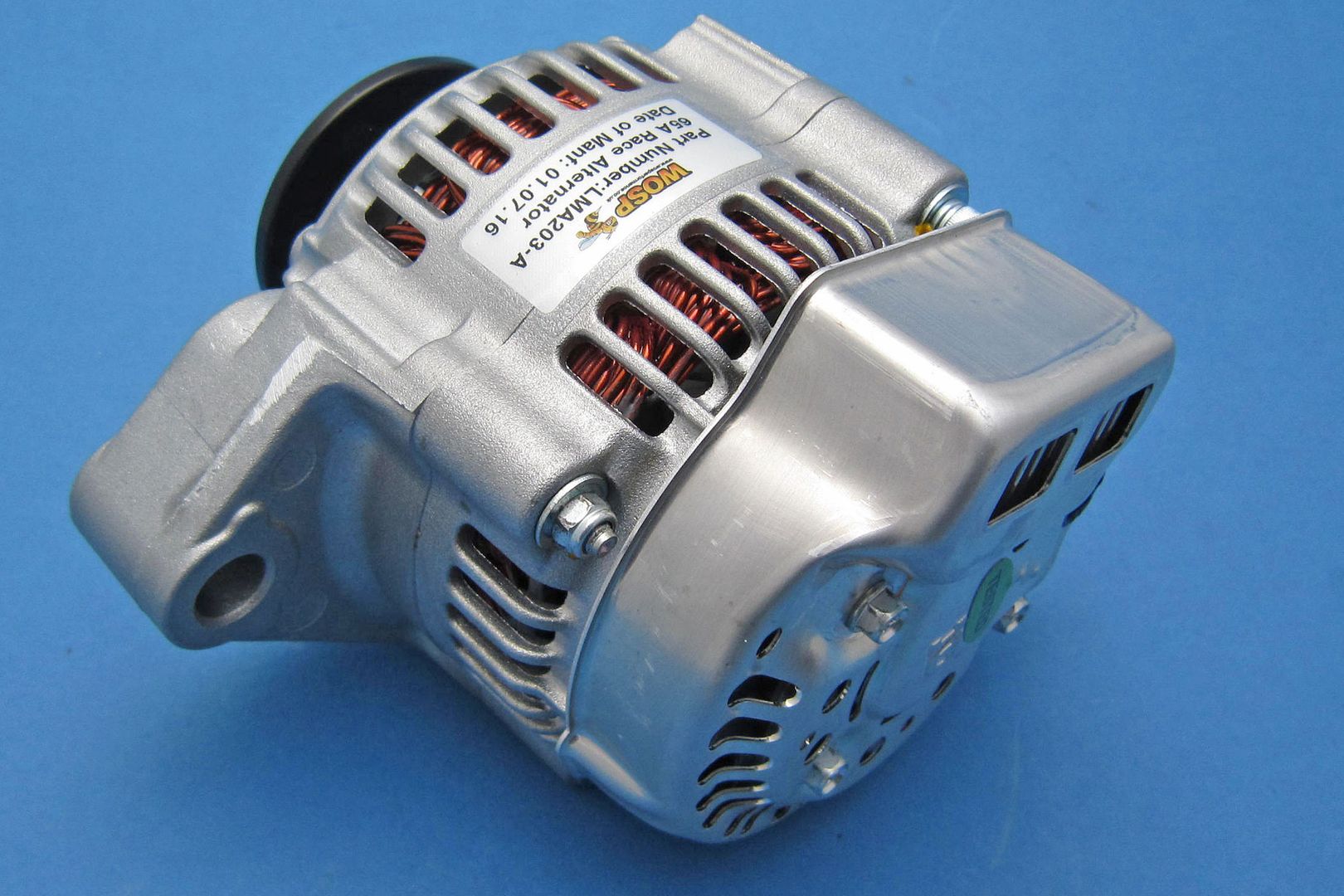

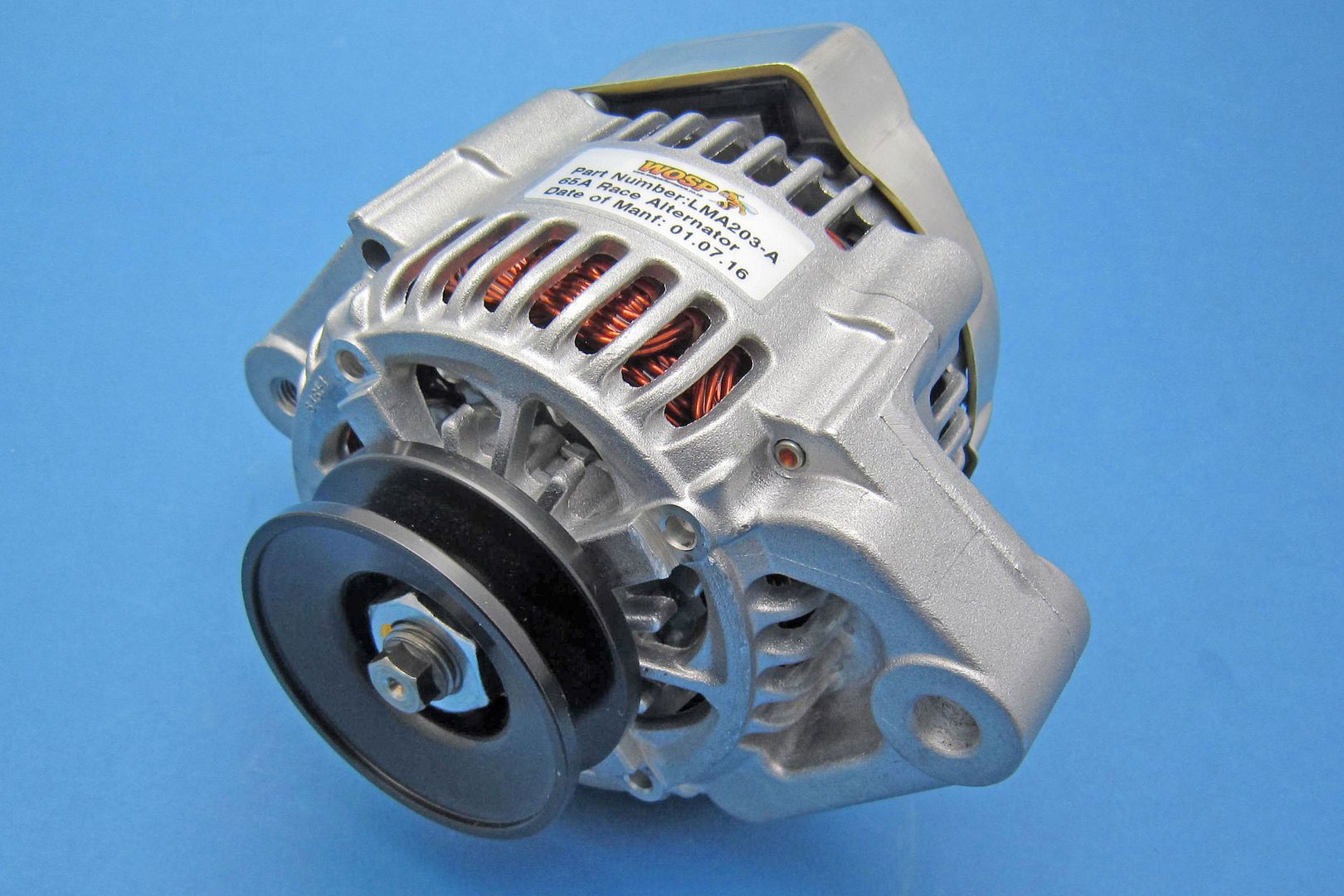

65A 12V lightweight Nippon Denso alternator, supplied by WOSP. Symmetrical, so can be used on either RH or LH applications.  Supplied with 63mm diameter pulley to take a Z section belt and also wiring loom/plug. This unit is a slightly larger version of the 50A, LMA200. Weighs approx 3.2kg.

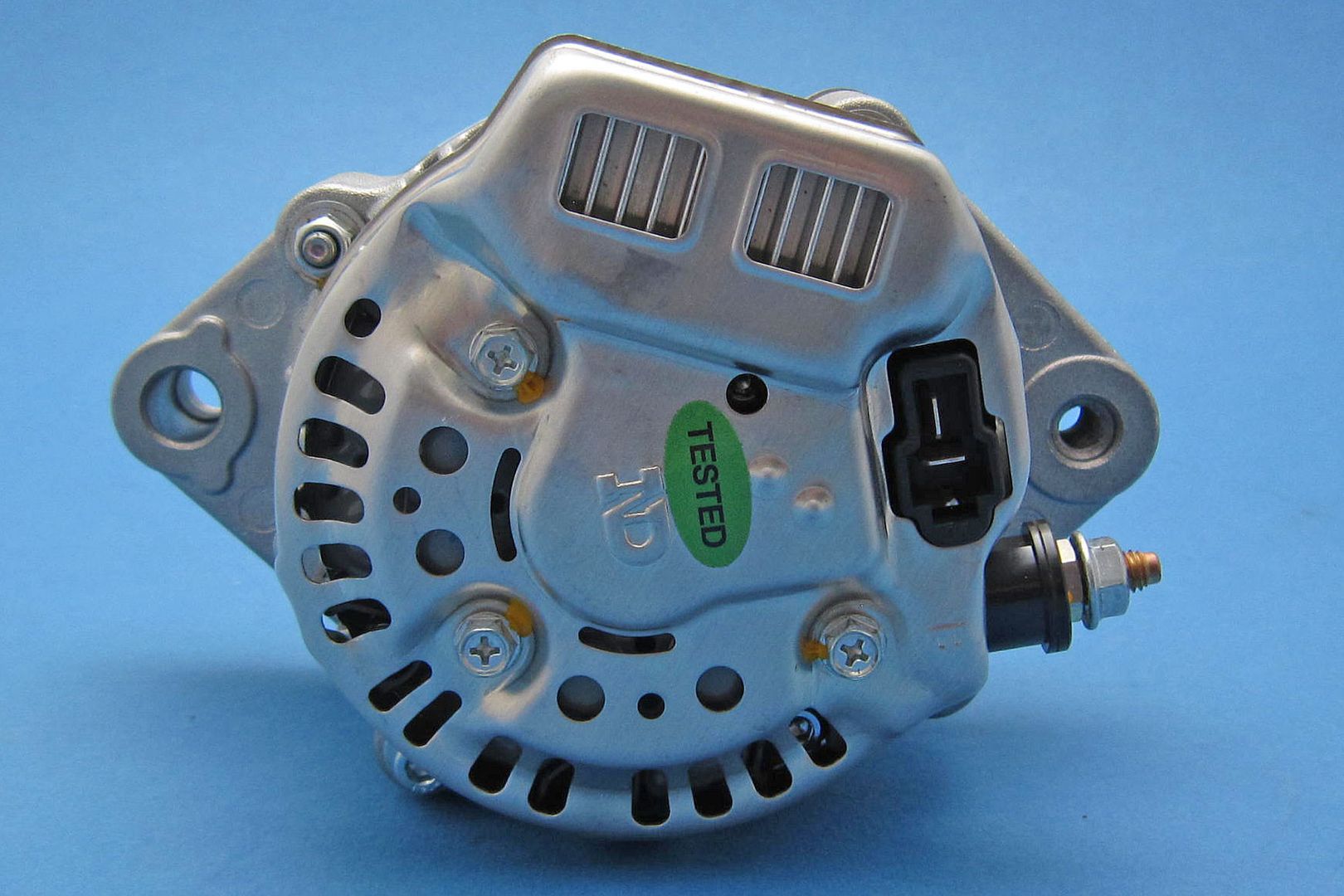

Connection is simple:

• M6 stud to battery using cable rated at least to 65A
• 6.3mm blade marked 'IG' to ignition on supply
• 6.3mm blade marked 'L' to warning lamp
• Connection via 6mm stud terminal and 2 way blade connector (050110)

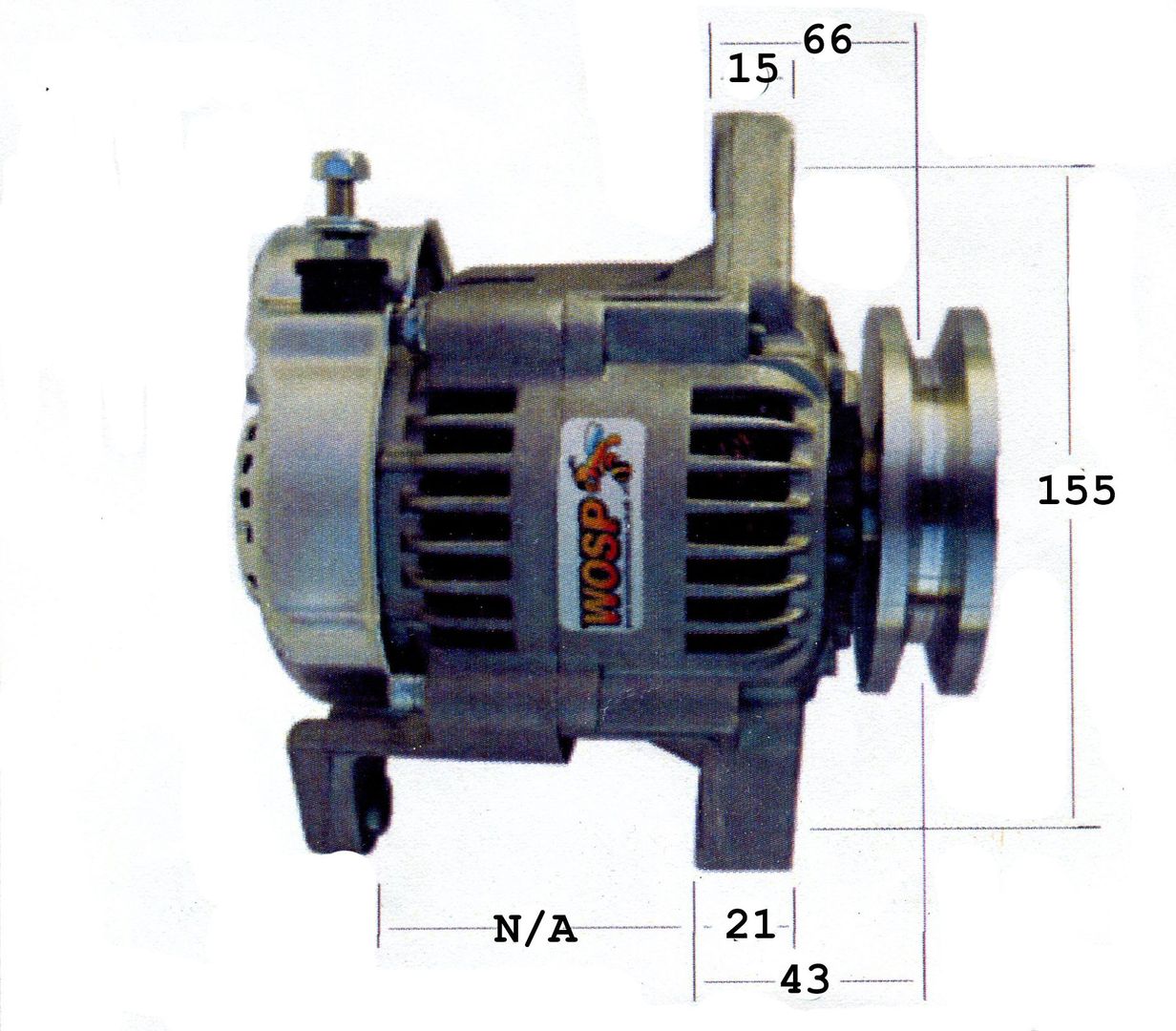

Generic dimensions shown in last image.
