WOSP LMA270 65A

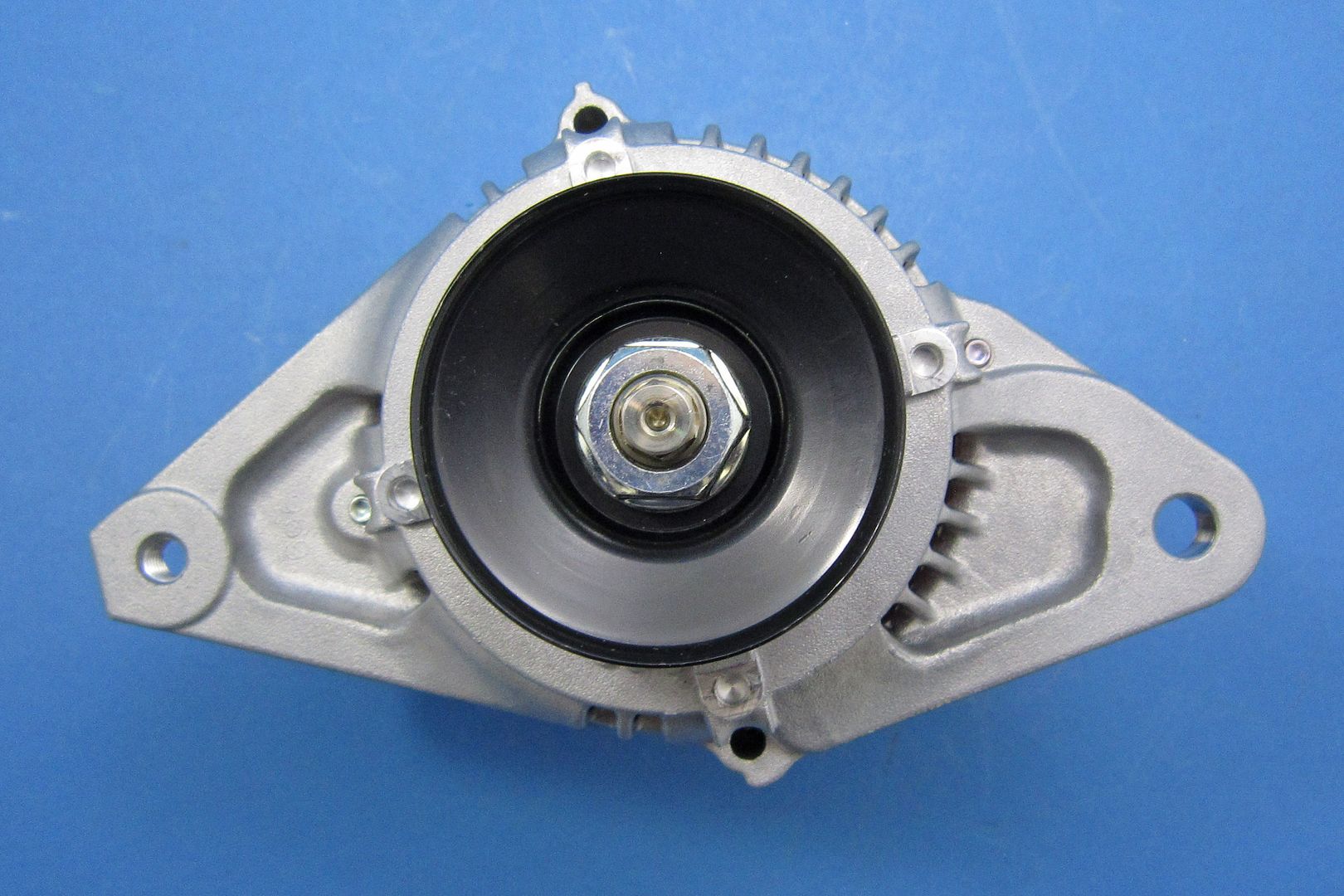

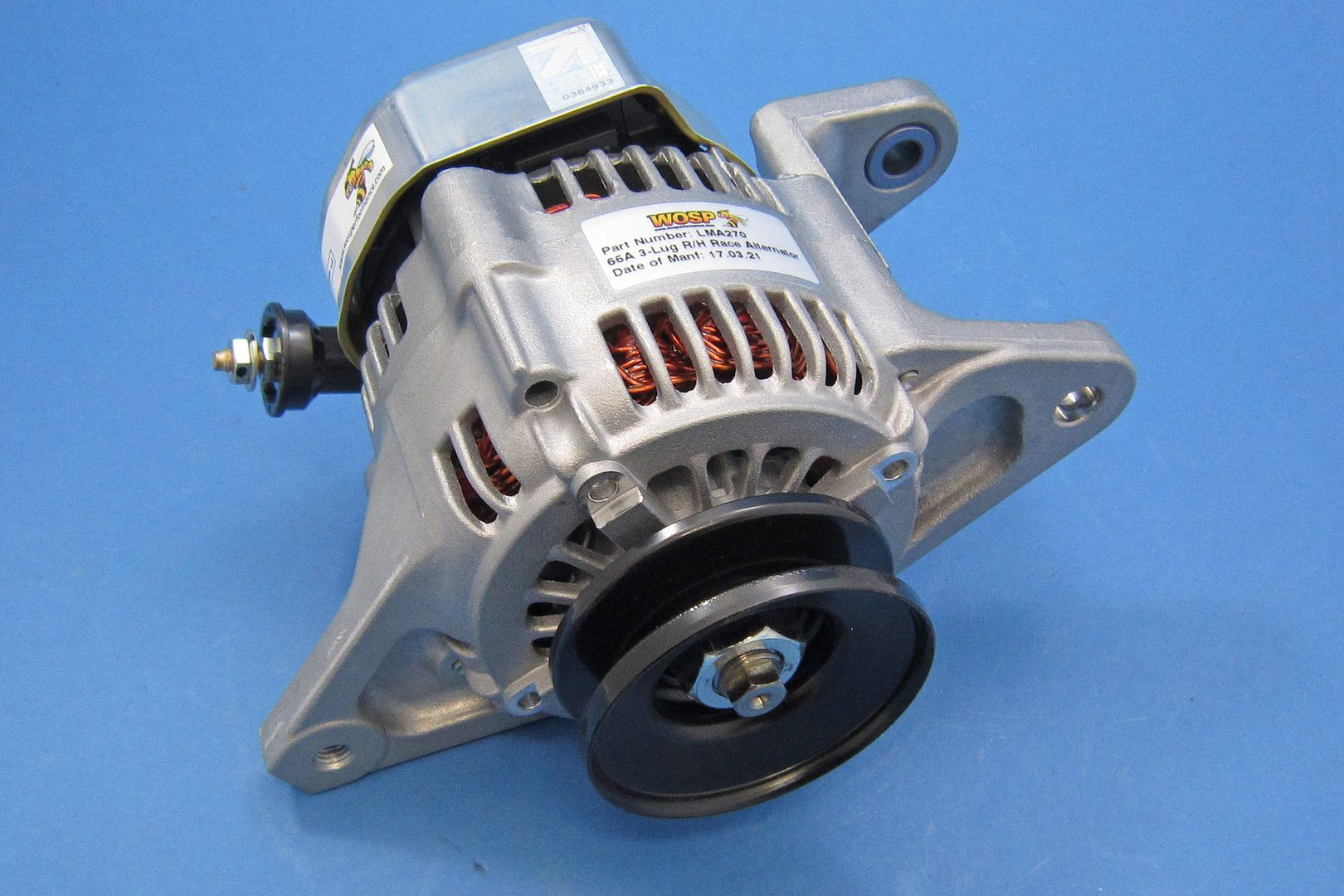

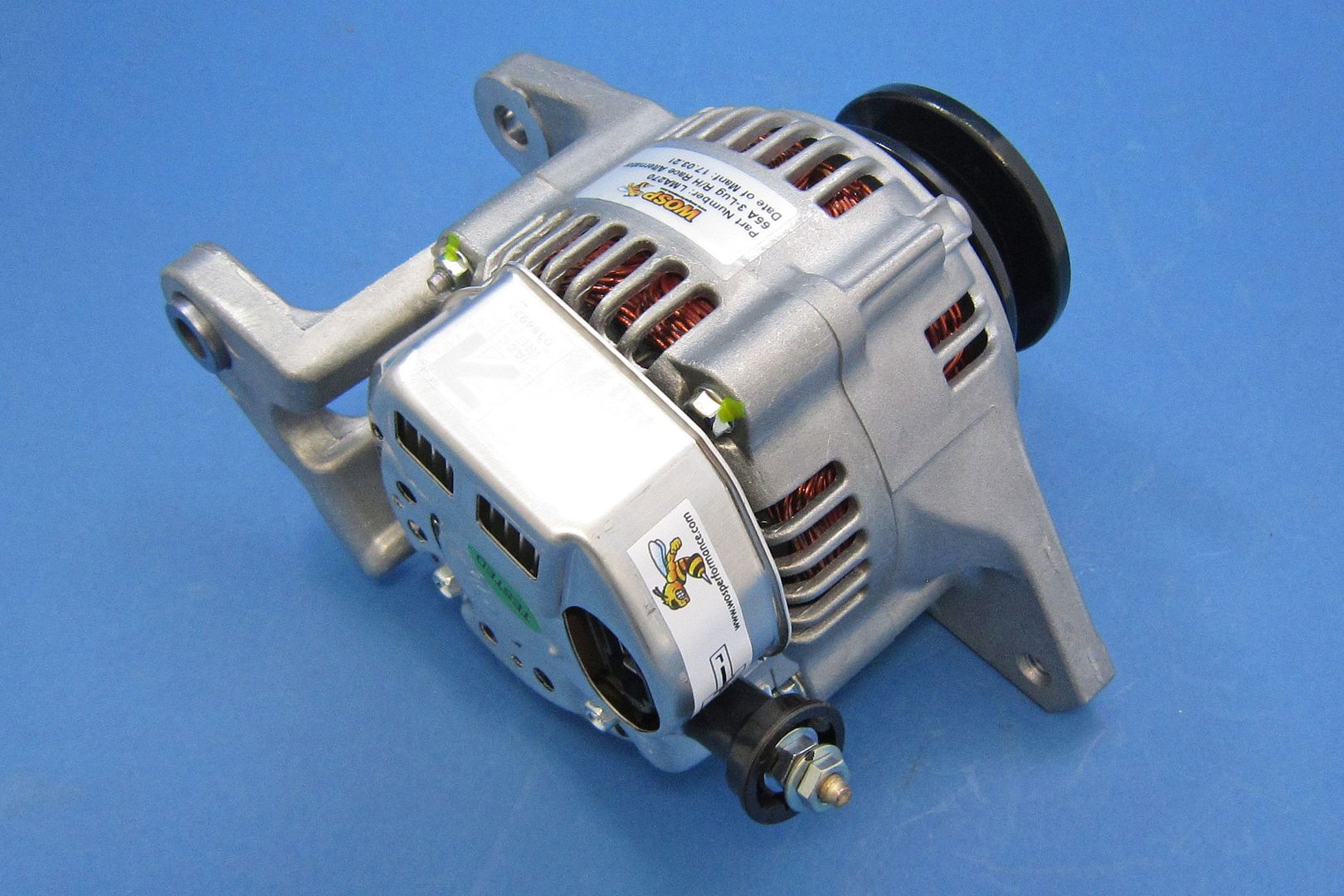

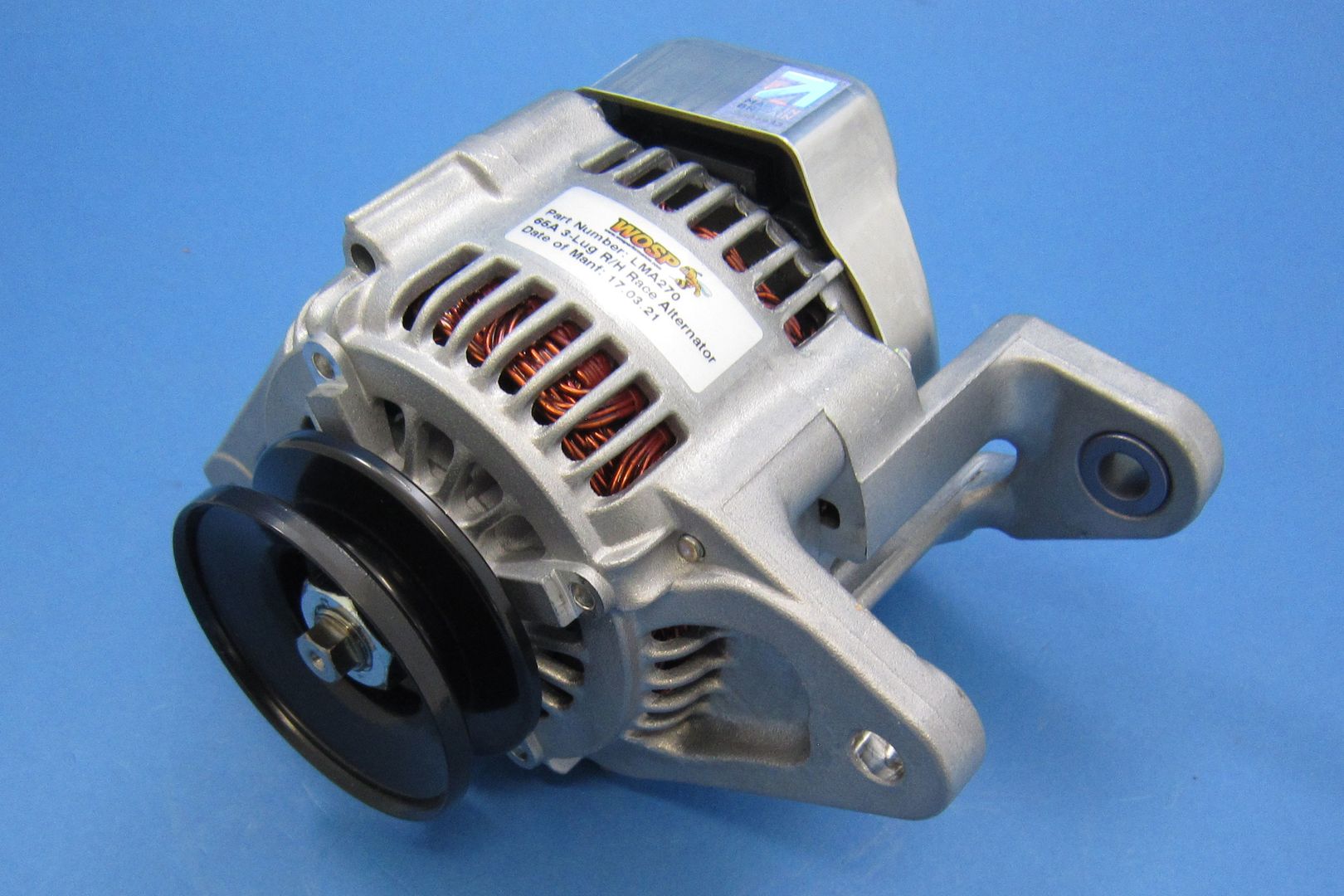

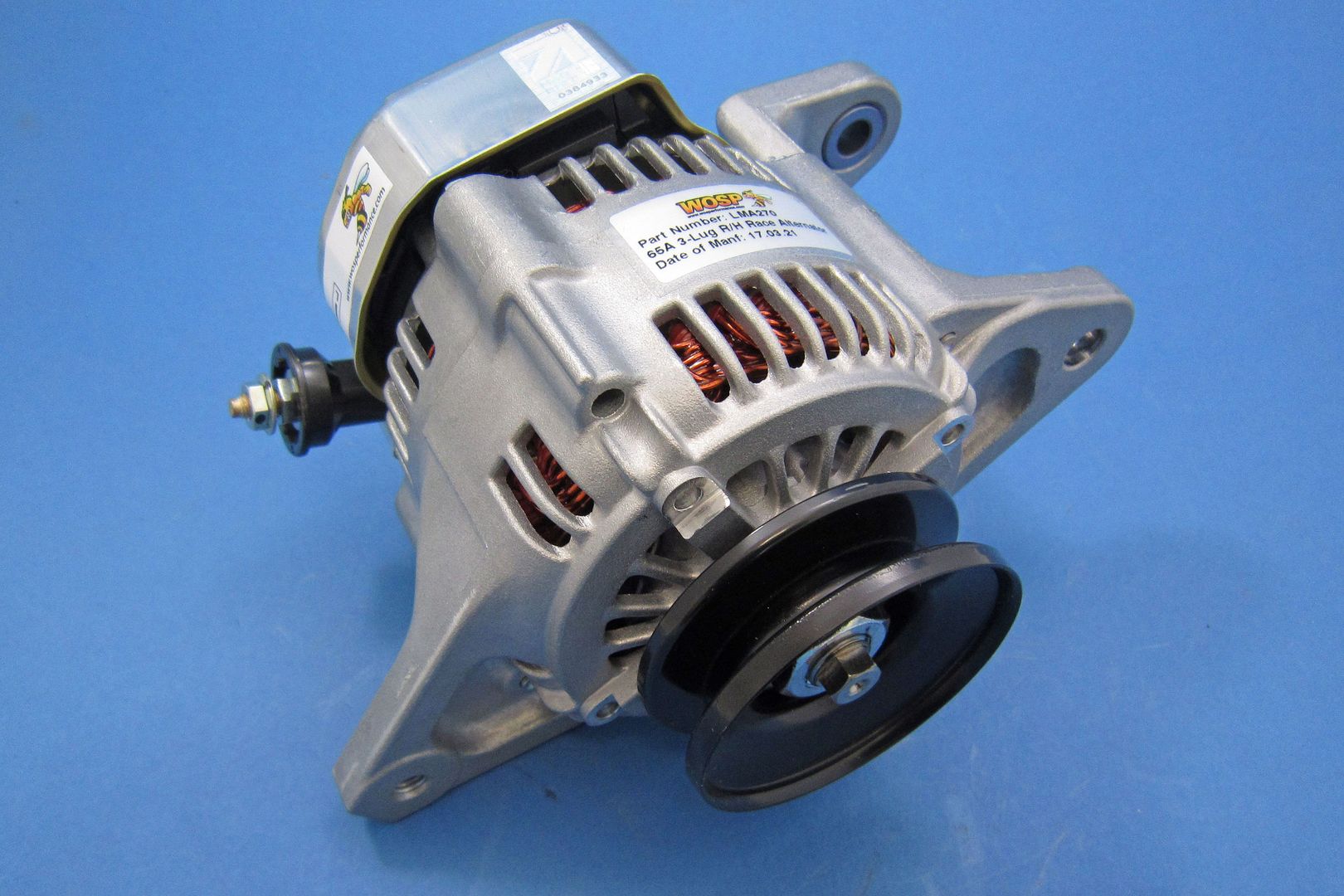

65A 12V lightweight Nippon Denso alternator with twin mounting lugs (having 10.5mm diameter holes) supplied by WOSP. Symmetrical, so can be used on either RH or LH applications.  Supplied with 69mm diameter pulley to take a Z section belt and also wiring loom/plug. 15mm diameter shaft. Weighs approx 3.2kg. 75mm between mounting lugs.

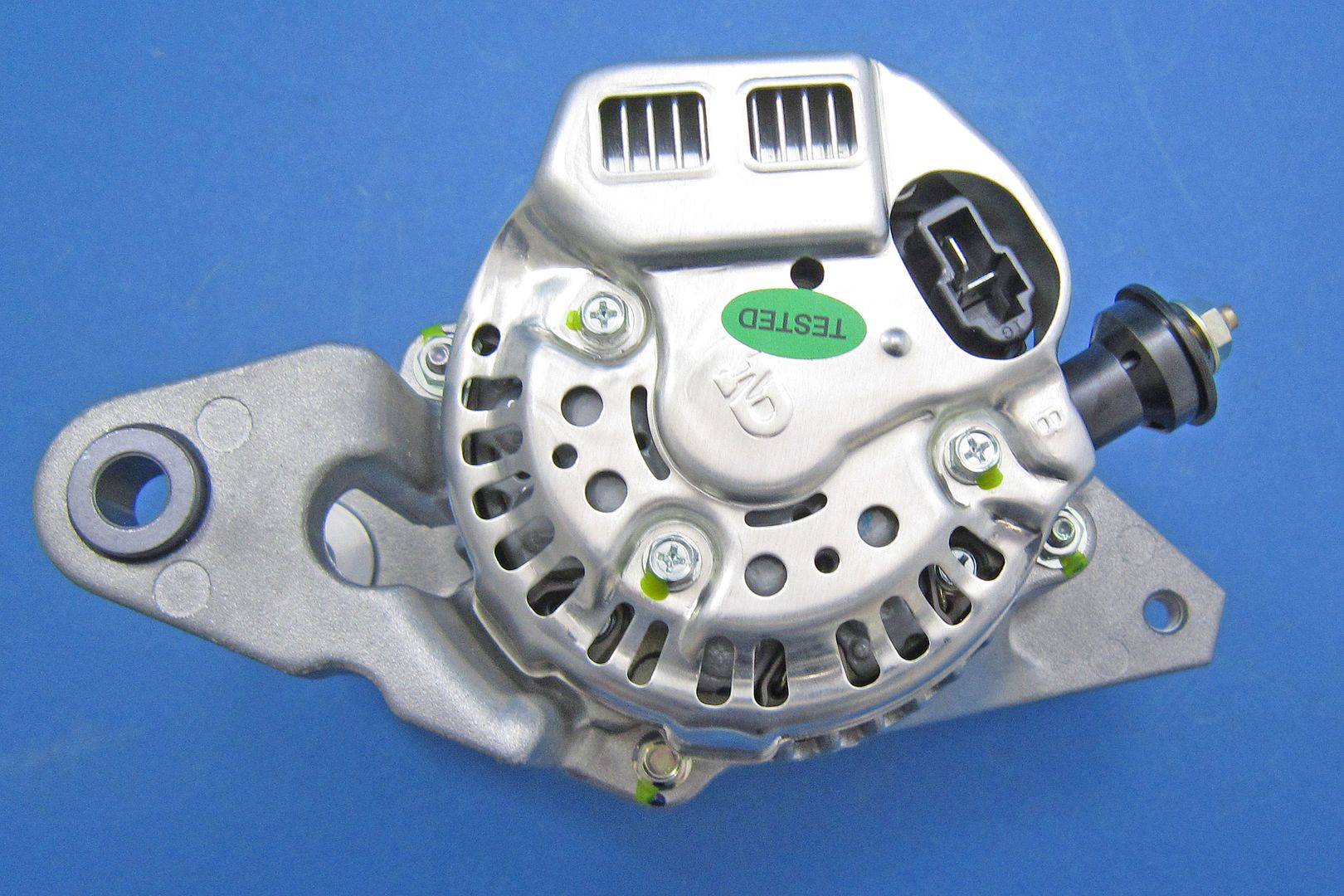

Connection is simple:

• M6 stud to battery using cable rated at least to 65A
• 6.3mm blade marked 'IG' to ignition on supply
• 6.3mm blade marked 'L' to warning lamp
• Connection via 6mm stud terminal and 2 way blade connector (050110)

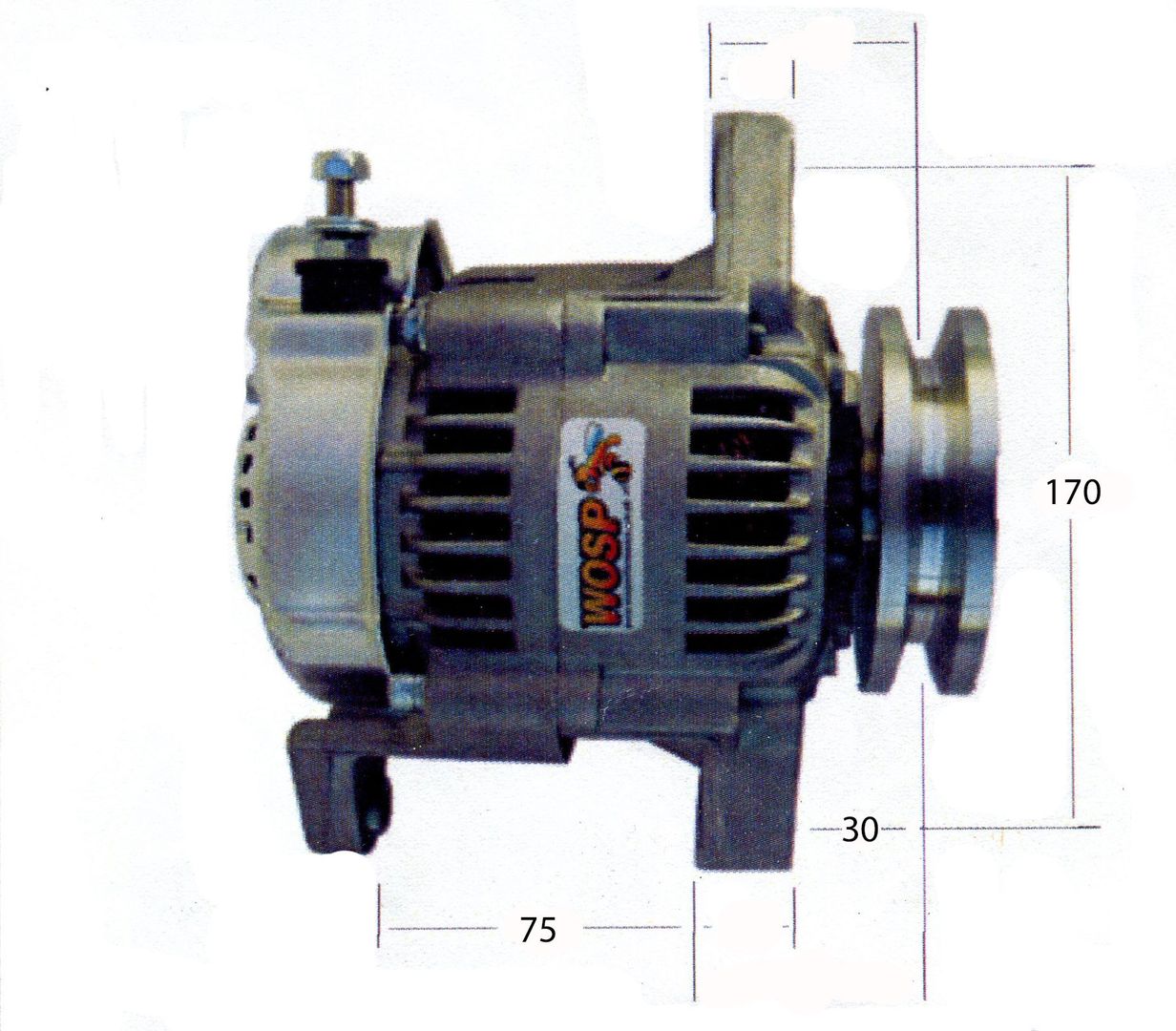

Generic dimensions shown in last image.
